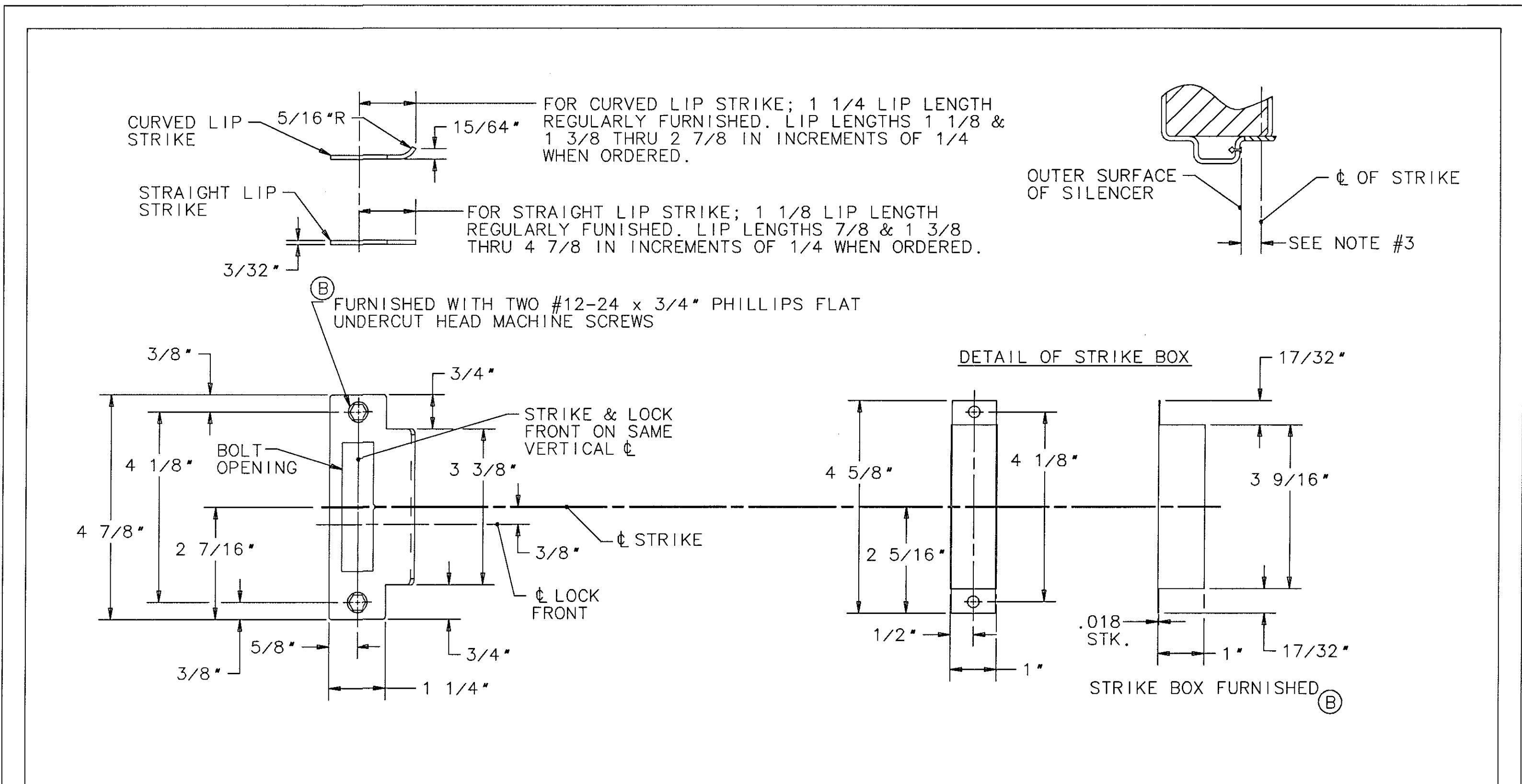

Standard and Straight Lip Mortise Strike (82-0110)

• 3-WHEN DOOR SILENCERS ARE USED ON DOOR FRAME, LOCATE CENTERLINE OF STRIKE FROM SURFACE OF DOOR SILENCER AS SHOWN.
• (2) DIMENSIONS SHOWN ARE MAXIMUM PART DIMENSIONS.
• 1)-STRIKE OUTLINE FOR FRAME FITS CURRENT ANSI A115.1 STANDARD.

(R)
