STAINLESS STEEL INTERMEDIATE PIVOT SETS

INTERMEDIATE PIVOTS

PIVOT SETS

Intermediate pivots are used to keep doors in alignment. All intermediate pivots are offset hung and cannot be used on center hung doors. Per NFPA 80, fire doors are to have an intermediate pivot for additional support at 30" or fraction thereof for door heights over 6'. Available in most architectural finishes.

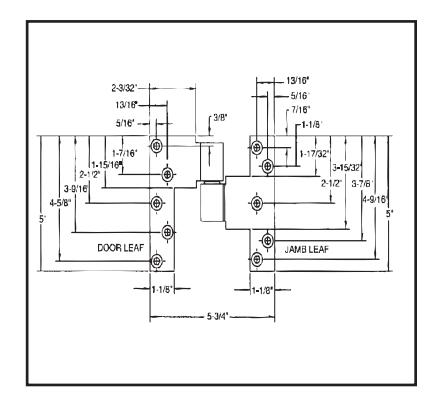

019

• 3/4" offset, handed
• Full mortise
• Needle bearing supplied standard. Can be used on heavy duty doors
• US32D models listed for use on labeled doors
• BHMA/ANSI C07321/3525

019 x 1 1/2

• 1-1/2" offset, handed
• Full mortise
• Needle bearing supplied standard can be used on heavy duty doors
• US32D models listed for use on labeled doors
• BHMA/ANSI C07321

E019

• Intermediate Pivot
• Can be used on heavy duty doors
• For Power Transfer
• US32D models listed for use on labeled door
• 3/4" offset, handed • Full Mortise
• (8) 28ga. wires supplied standard*
• Door and jamb portions are factory assembled
• *Pivot cannot be separated for installation

L019

• For 1-3/4" lead lined doors
• 3/4" offset, handed
• Full mortise
• Needle bearing supplied standard
• US32D models listed for use on labeled doors
• BHMA/ANSI C07311

SEE SS PIVOT/PIVOT SETS CROSSOVER REFERENCE CHART ON PAGE 148
