CENTER HUNG PIVOTS STAINLESS STEEL PIVOTS

PIVOTS

CENTER HUNG PIVOTS

Pivot sets include top and bottom pivots. All center hung pivot sets are non-handed and double acting. Intermediate pivots are not used. Center hung pivots are not allowed with labeled doors. Door must be reduced on pivot edge. All sets are available in standard architectural finishes.

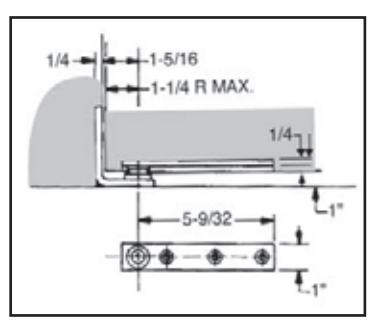

0127

For interior door up to 3'6" x 8'6"
Weight to 200 lbs.
0320 light duty top pivot included
Bottom pivot mortised into side jamb
Extended spindles available
Can be used with IDC Rescue Stops (See Rescue Hardware Sets)
BHMA/ANSI C07042

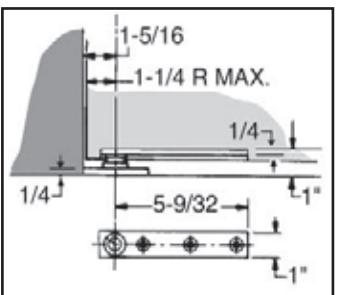

⁰¹²⁸ F or interior doors up to 3'6" x 8'6" • Weight to 250 lbs.
- 0320 light duty top pivot included
- Bottom pivots mounted to floor
- Extended spindles available
- Can be used with IDC Rescue Stops (See Rescue Hardware Sets)
- BHMA/ANSI C07032/3530 (modified)

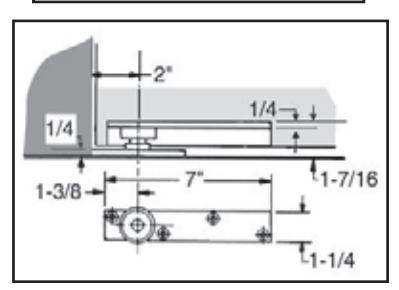

0370 For interior doors or exterior doors up to 4'0" x 8'6"
- Weight to 500 lbs.
- 0340 top pivot inc included
- E0340 electrified top pivot available
- Bottom pivot mounted to floor
- Extended spindles available
- BHMA/ANSI C07032
