Special BB1577 Template T209-rev._112017

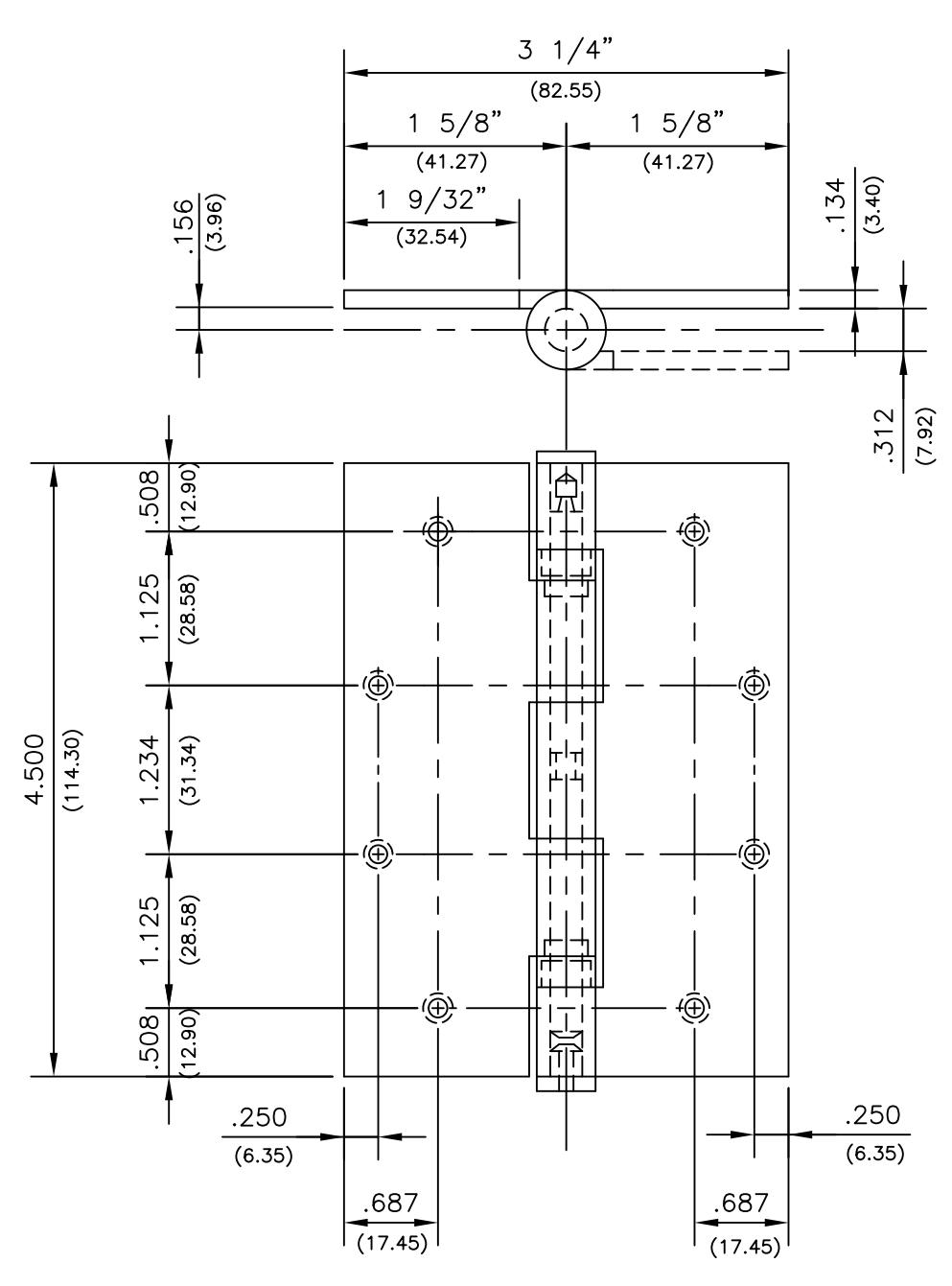

FULL SLIP IN - FULL MORTISE TEMPLATE HINGE (REF H-209) SPECIAL BB1577

Template No. T-209 Rev. '17

SIZE: 4 1/2 x 3 1/4 (114.30 x 82.55)

Machine Screw Size- $12-24\; \backslash times\; 1/2$ " F.H.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI—A156.7.

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300

Template No. T—209
