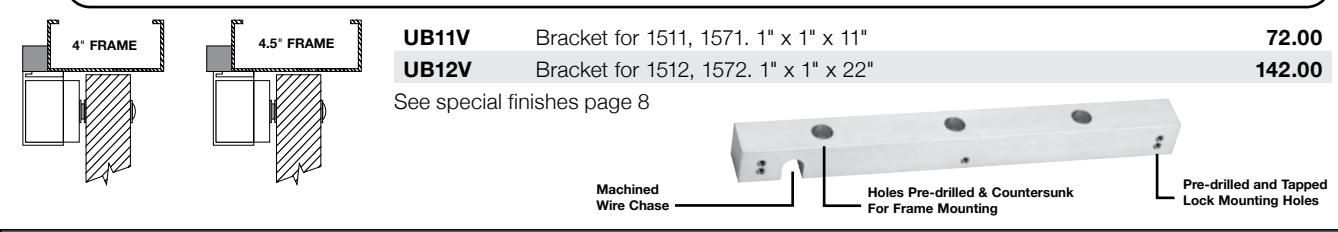

Used in lieu of angle brackets, the Universal Header Bracket provides a faster mounting solution, saving time and labor costs for several EmLock® models. Reduce potential for mis-sized and misaligned mounting holes, broken taps, removal of broken taps. Combined with interlocking E-Z mount assembly, save up to a half day's labor with the installation of 12 locks.

• Solid 1" bar provides higher security and superior aesthetics.
• Machined wire chase provides concealed and secure wiring
• Multiple pre-drilled and tapped mounting holes to accommodate the use of several different locks on either 4" or 4.5" aluminum frames

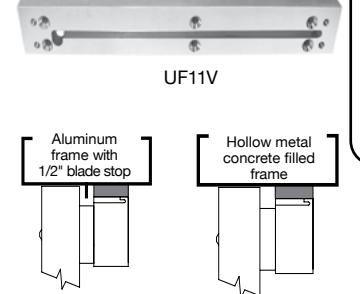

Aluminum Spacer Bracket & Concrete Filled Frame Plate - Pre-Drilled & TappedGK

APPLICATION

• Aluminum frames with blade stop lowers EmLock® below blade stop
• Concrete filled hollow metal frames provides multiple points for concealed wire entry

FEATURES

• Pre-drilled and tapped specifically for 1510, 1570, 1580 EmLock
• Machined wire chase provides multiple points for concealed wire entry from concrete filled frames.

UF11V	Bracket for 1511, 1571. 1/2" x 1-1/2" x 11"	100.00
UF12V	Bracket for 1512 and 1572. 1/2" x 1-1/2" x 22"	124.00
UF81V	Bracket for 1581. 1/2" x 1-1/4" x 8-3/4"	81.00
UF82V	Bracket for 1582. 1/2" x 1-1/4" x 17-1/2"	112.00

Armature Mounting Plate

GK

LIST

67.00

LIST

134.00

244.00

The AR Mounting plate provides a solution for mounting the EmLock® armature to the top rail of aluminum, glass, wood and hollow metal doors that do not permit the use of thru bolts. Dimension: 8 1/2" x 3"

MODEL

AR11Y Armature mounting plate (Black) Specify one for models 1511, 1571, two for models 1512, 1572

AR11YD Armature mounting plate (black) with door sensor Specify one for models 1511, 1571, two for models 1512, 1572

Distributor GK

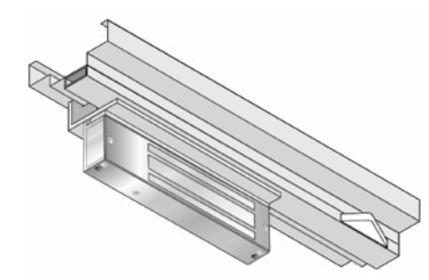

Door Coordinator Lock Mounting Kit

DC-2

DC-1 Door coordinator mounting bracket for single models 1511 and 1571.

Door coordinator mounting bracket for double models 1512 and 1572.

DC-1
