Slide Bolts, Surface Bolts and Misc

Slide Bolt Padlock Latch

Standard Features

• Ideal for lockers and temporary locking situations
• Used in numerous military base BEQs nationwide
• Stainless steel assembly
• Non-handed, reversible
• Built-in fail safe on inside ensures the ability to exit even with padlock locked
• Specify T-strike or ASA strike when ordering
• Accommodates up to ⅜" diameter padlock (not provided)
• • Patent pending

Models Available

• • 1884A 2-¾" backset & ASA Strike (161 Prep)
• • 1884 2-¾" backset & T- Strike (161 Prep)
• • 1888A 2-⅜" backset & ASA Strike (160 Prep)
• • 1888 2-⅜" backset & T-Strike (160 Prep)

Options

• "LO" - Lock-out option provides an additional hole for a second padlock

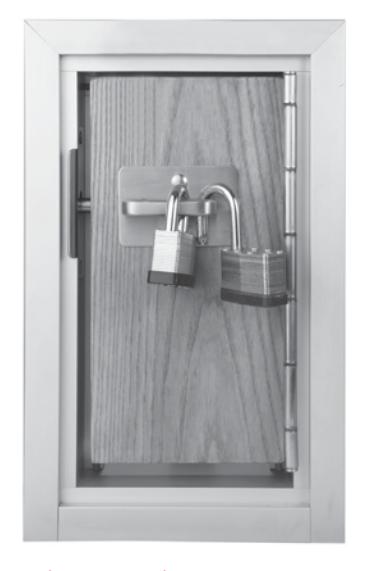

Shown with "LO" Option

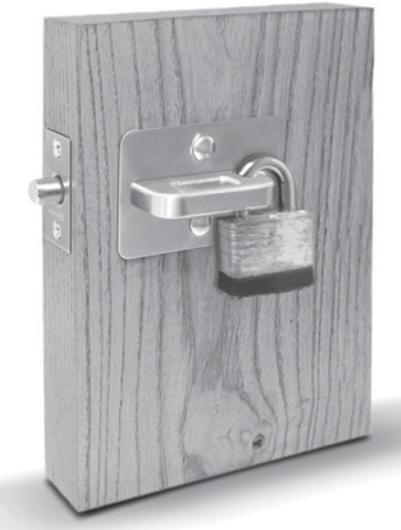

Shown as Locked

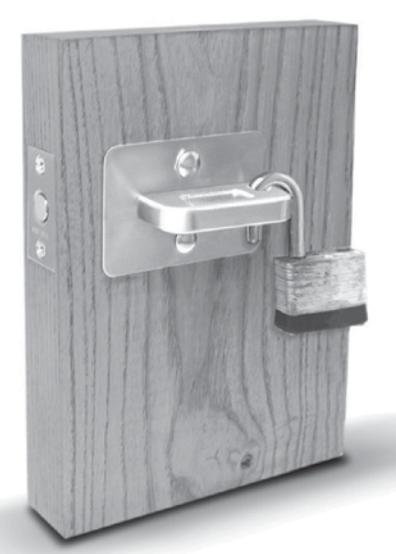

Shown as Unlocked

T-Strike ASA Strike
