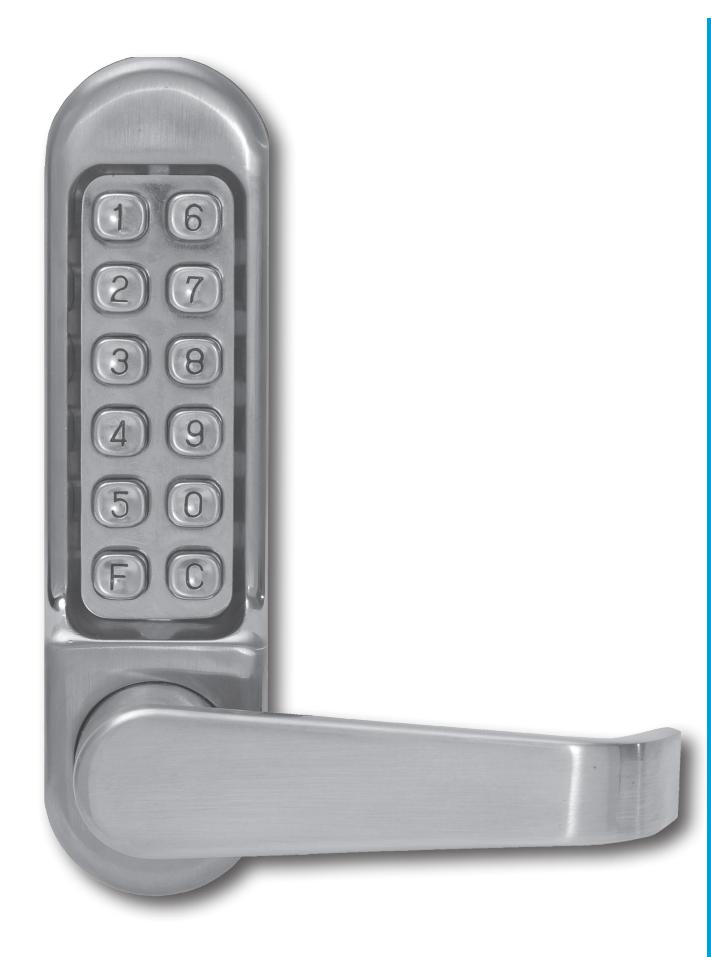

Simplex ® LD470

Features

Access Control

Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards

No Battery

Fully mechanical lock eliminates the material and labor expense of battery replacements

Locking Device

Tubular latch

Number of Codes

Single access code (non-sequential)—one easy-to-manage code for all users

Programming

Lock is easily programmed via keypad once removed from door

Handing

Pre-assembled for right-hand door installations, easily field reversible

Operation Modes

Pushbutton Access

Passage (easily removed in field)

A cost effective access control solution

Key Override

Not available

Mechanical Features

Solid cast housings; cast knobs and levers
Vandal resistant, solid metal pushbuttons
Satin Stainless 32D (630), Bright Brass (03), Antique Brass (05) housings and levers
3½" (89 mm) latch
2¾" (70 mm) backset, 2⅜" (66 mm) backset
6.5 lbs. (2.94 kg)

Installation

Installation	Easily installs on wood or metal doors. Requires three holes (two through bolts, one for latch spindle)
Door Thickness	1⅜" (35 mm) to 2½" (64 mm)
Items Supplied Include	Lock assembly, installation manual, template, and required hardware; as well as two 2½" (64 mm) x 8" (203 mm) cover plates and two 2" (51 mm) gaskets

Warranty

Warranty	1-year warranty

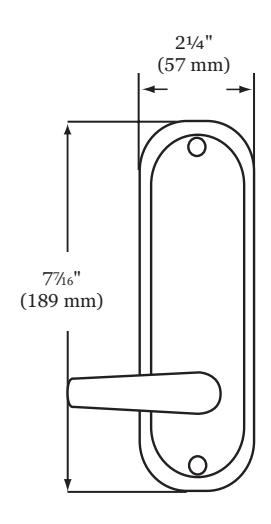

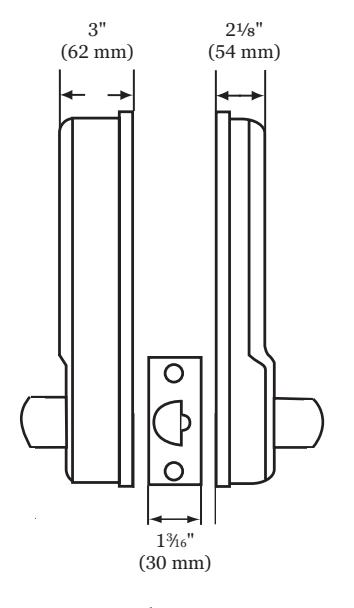

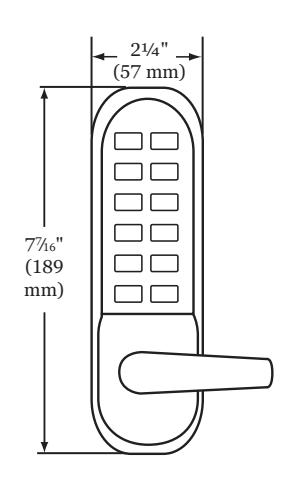

Exterior Interior Side View
