Simplex LD470 Series Price List
Open the original PDF document
View PDF
| Base Model | Description | Base Price |
|---|---|---|
| LD4714832D41 | Light Duty Pushbutton Lock, 23/8" Backset, Passage, Lever | $325.00 |

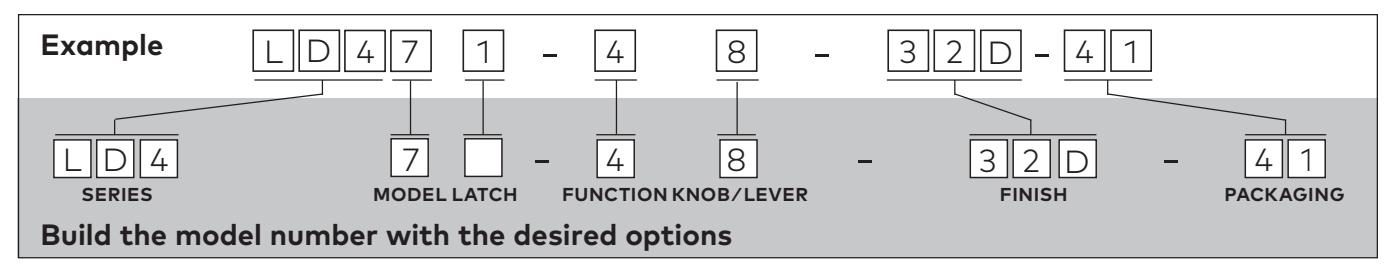

Choose One Option from Each Category
| Model | Description | Price | |
|---|---|---|---|
| 7 | Mechanical Pushbutton Lock with Vandal Resistant Clutching Lever | No Charge | |
| Latch Options | Description | Price | |
| 1 | Tubular Latch Bolt 2¾" (60 mm) backset | No Charge | |
| 2 | Tubular Latch Bolt 2¾" (70 mm) backset | No Charge | |
| Function | Description | Price | |
| , | |||
| FULCTION | Description | FIICE |
|---|---|---|
| 4 | Passage (47 series only) | No Charge |
| Lever | Description | Price |
|---|---|---|
| 8 | Flat Lever (47 series only) | No Charge |
| Finish Options | Description | Price |
|---|---|---|
| 32D | Satin Stainless (simulated 630 finish) | No Charge |
| 03* | Bright Brass | No Charge |
| 05* | Antique Brass | No Charge |
* While supplies last. Consult factory for availability.
Items Supplied with the Lock
- Installation Manual
- Full-Scale Template
- Required Installation Hardware
- Internal/External Gaskets
- Internal/External Cover Plates
