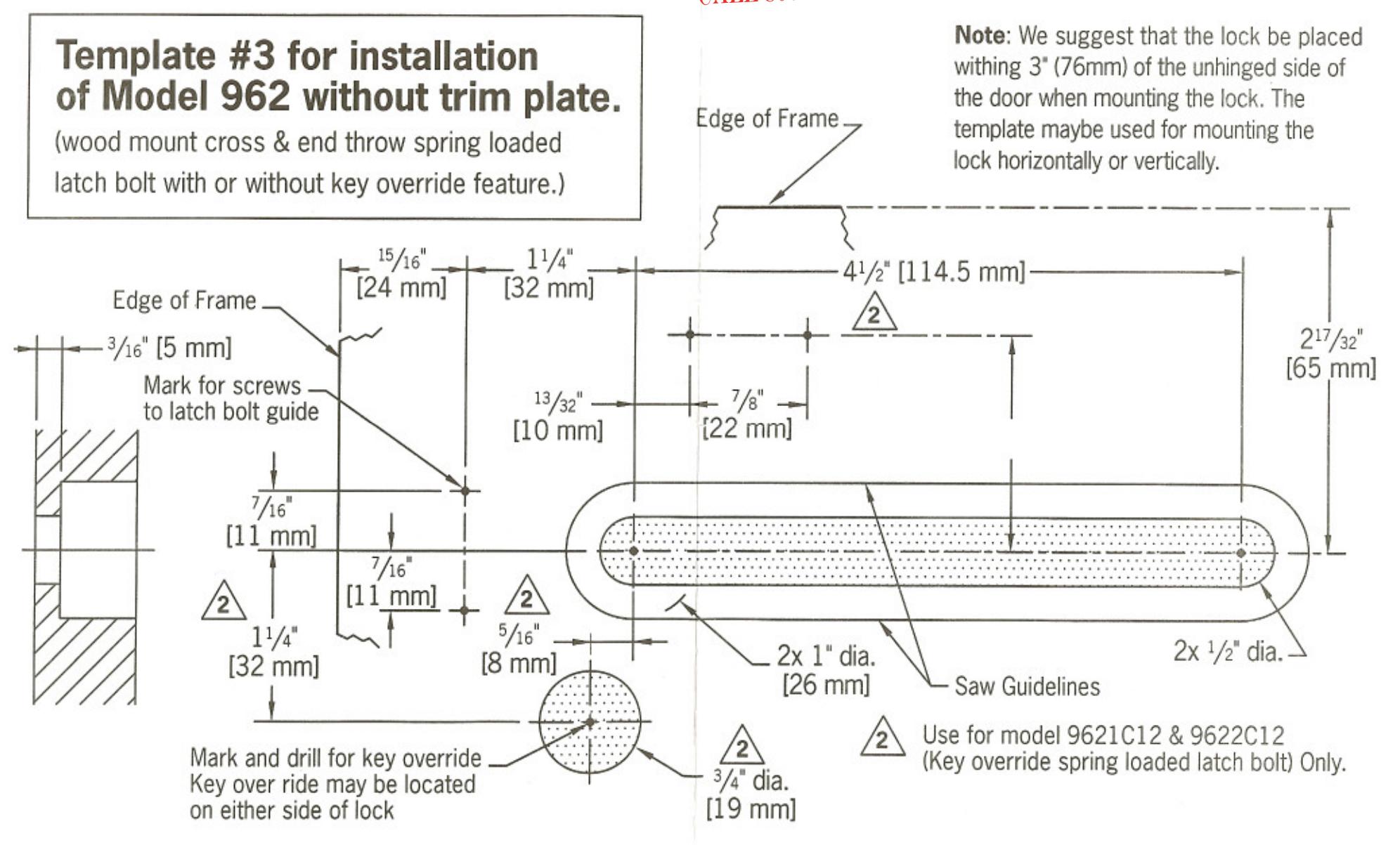

Simplex 9600 Wood Mounting Template

REFERENCE ONLY, NOT TO SCALE DO NOT USE AS A DRILLING TEMPLATE

CALL 800-849-8324

SIMPLEX ®

REFERENCE ONLY, NOT TO SCALE DO NOT USE AS A DRILLING TEMPLATE CALL 800-849-8324

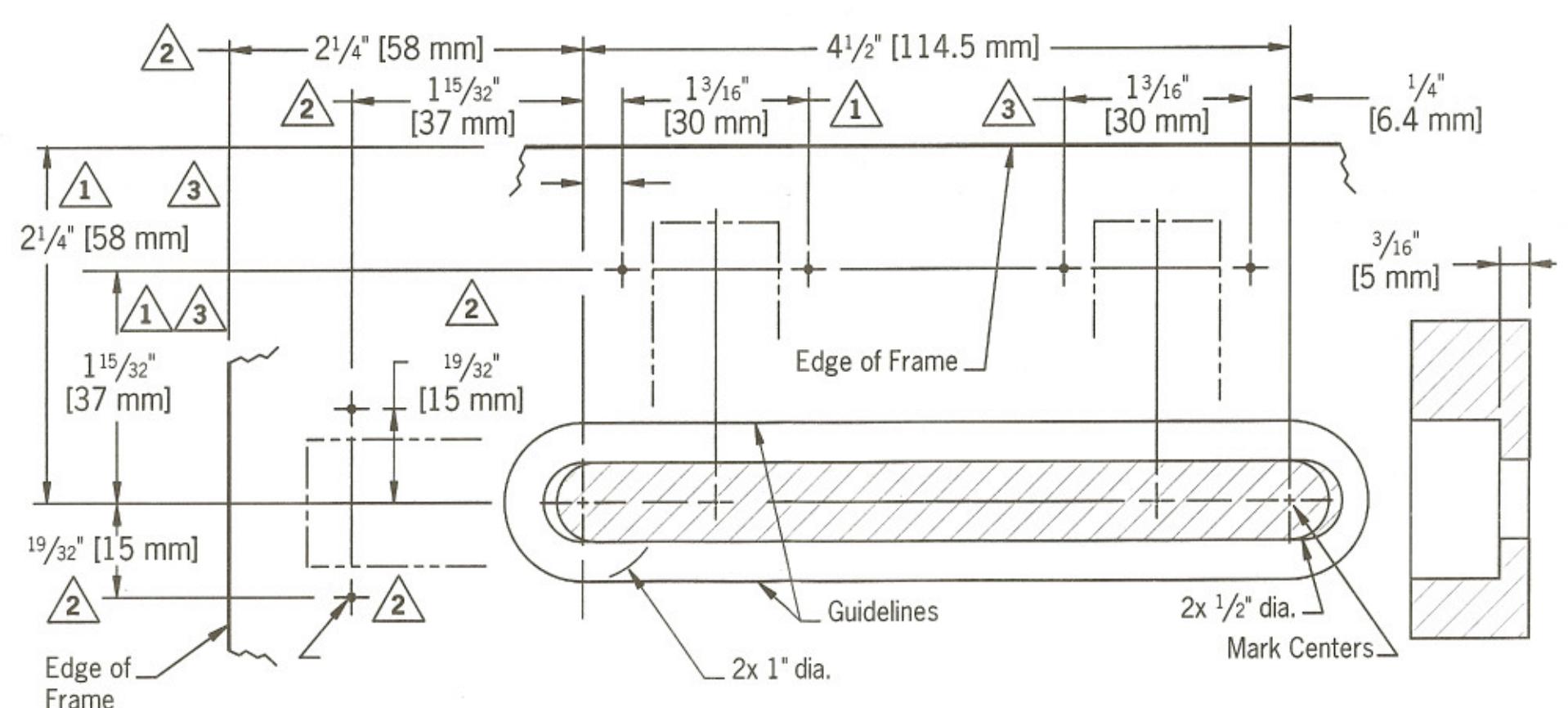

Template #4 for installation of Cross Throw Model 9621 or End Throw Model 9622.

(wood mount with dead bolt.)

Note:

Use for Model 9621 (Cross Throw Dead Bolt) when door is hinged on the right

2

Use for Model 9622 (End Throw Dead Bolt)

Use for Model 9621 (Cross Throw Dead Bolt) When door is hinged on the left

2941 Indiana Avenue Winston-Salem, NC 27105 USA Tel: (800) 849-8324 (336) 725-1331 Fax: (800) 346-9640 (336) 725-3269
