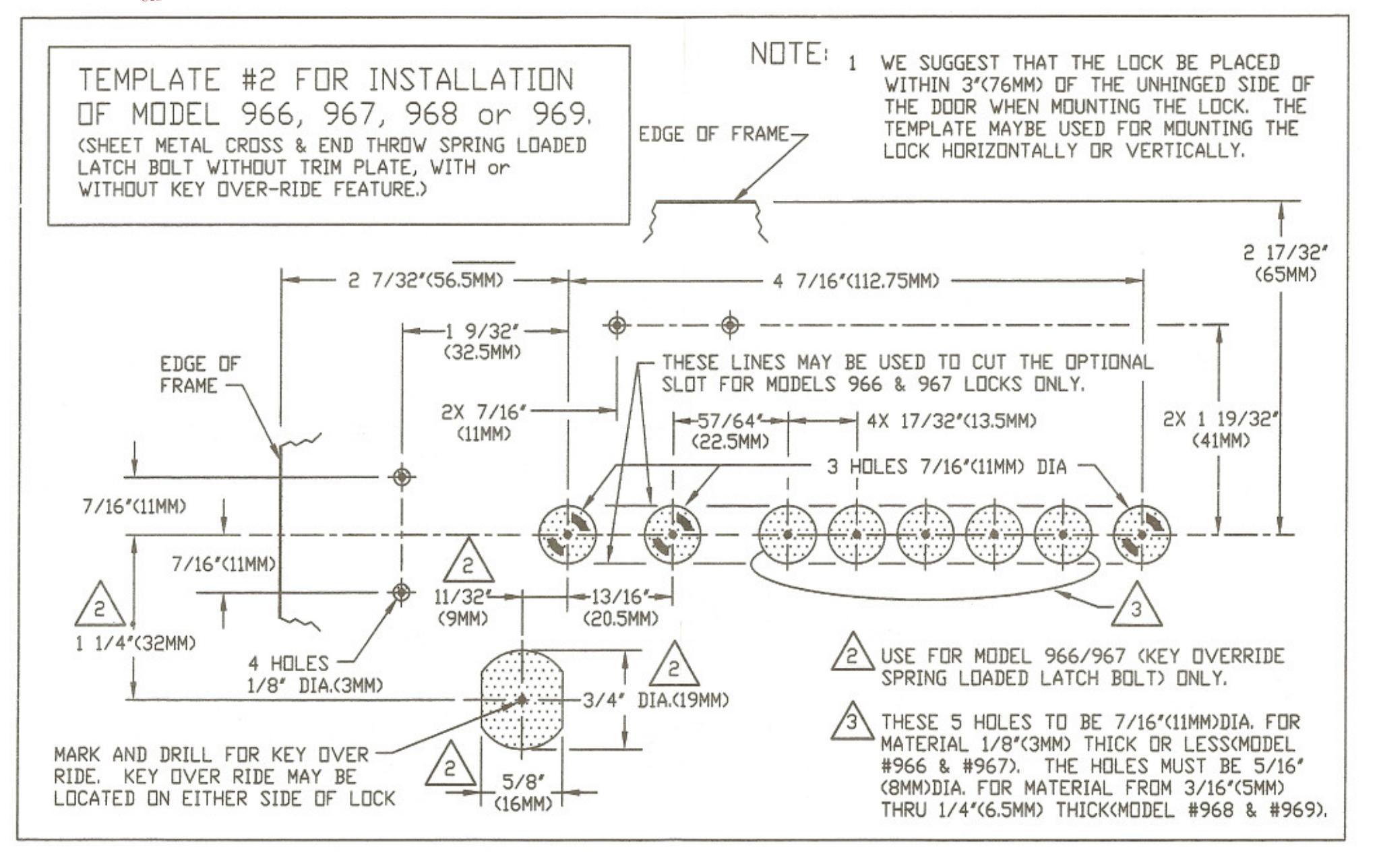

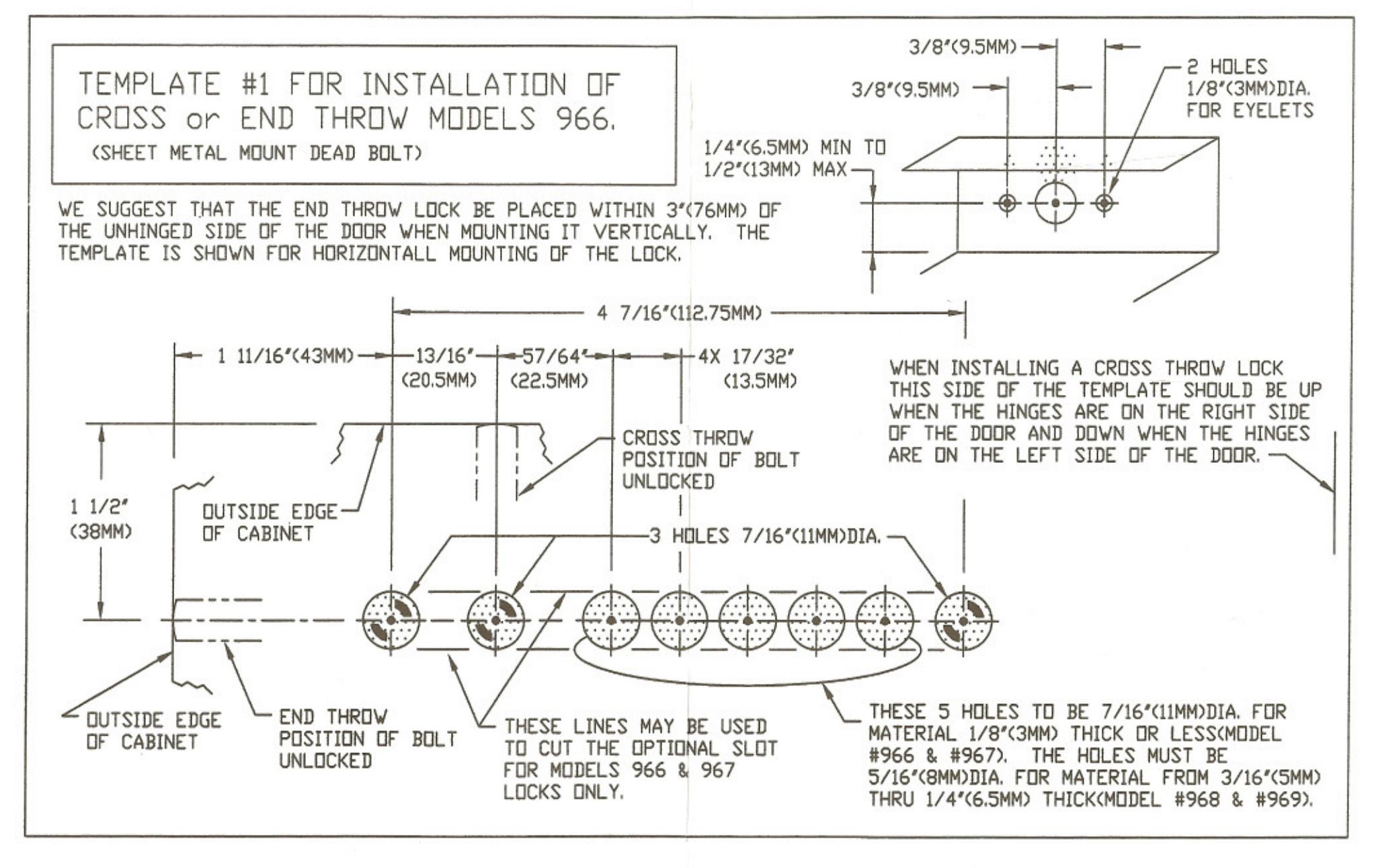

Simplex 9600 Sheet Metal Mounting Template
Open the original PDF document
View PDFREFERENCE ONLY, NOT TO SCALE DO NOT USE AS A DRILLING TEMPLATE CALL 800-849-8324
REFERENCE ONLY, NOT TO SCALE DO NOT USE AS A DRILLING TEMPLATE CALL 800-849-8324
