Simplex 900 Template

Fold along dash line for outswing door or if you are using a riser plate on an inswing door Fold along solid line for inswing door (no riser plate) See step 2 in instructions

Door handing should be determined before door prep is started to avoid incorrect door preparation.

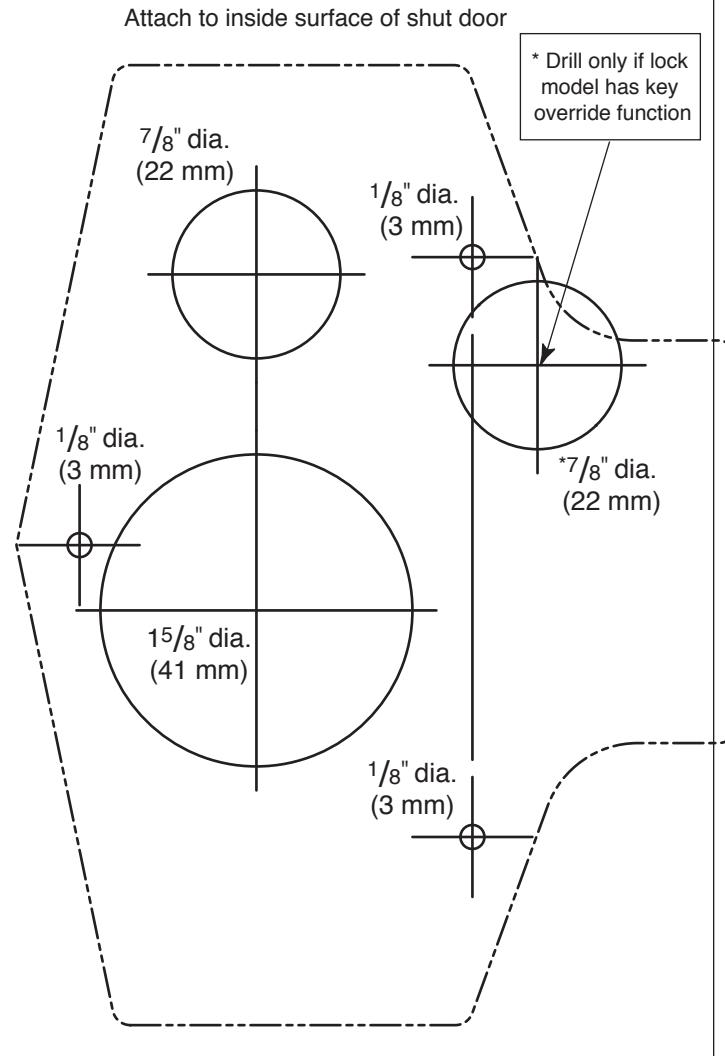

TOP FOR RIGHT HAND DOORS

Attach to inside surface of shut door

TOP FOR LEFT HAND DOORS

Door handing should be determined before door prep is started to avoid incorrect door preparation.

REFERENCE ONLY, NOT TO SCALE DO NOT USE AS A DRILLING TEMPLATE CALL 800-849-8324
