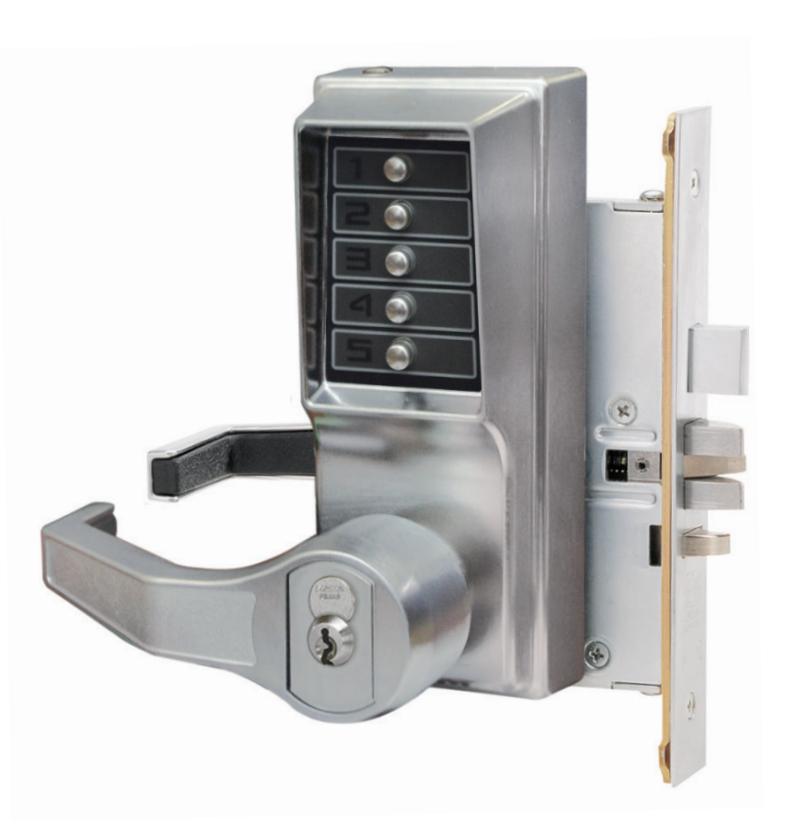

Simplex ® 8100

Model 8146

• Combination Entry
• Key Override (not supplied)
• Passage
• Lockout

Model 8148

• Key Override (not supplied)
• Passage
• Lockout
• Deadbolt

Features

Access Control

Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.

No Battery

Fully mechanical lock eliminates the material and labor expense of battery replacements

Number of Codes

Single access code—one easy-to-manage code for all users

Programming

Lock is easily programmed via keypad without removing lock from the door

Handing

Factory-handed; not field reversible

Operation Modes

• • Pushbutton Access
• • Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
• • Deadbolt (select models)—added security of 1" deadbolt. Access permitted by combination or key override.
• • Lockout (all models)—disables the lock from the inside so that the entry codes cannot be used to gain access. Access is permitted using key override.

• Combination Entry A cost effective access control solution

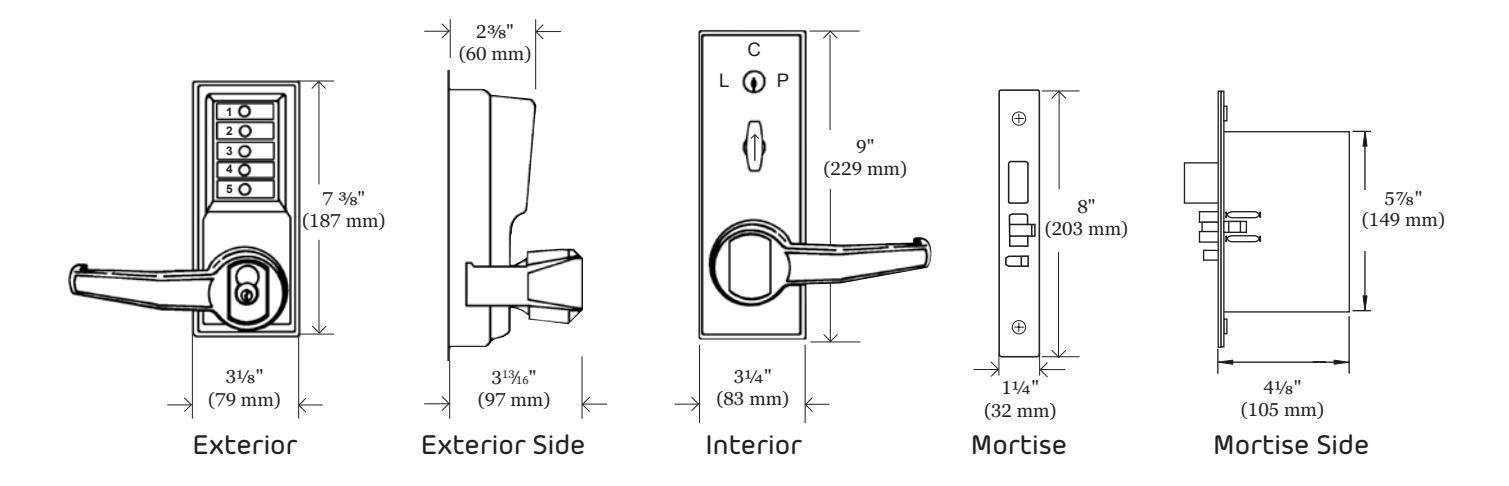

Mechanical Features

Mechanical Features
Construction	Cast front housing; unified trim plate; fixed ADA—compliant levers
Locking Device Options	Mortise with 1" (25 mm) deadbolt, ¾" (19 mm) two-piece anti-friction latch Mortise with ¾" (19 mm) two-piece anti-friction latch
Numeric Keypad	Vandal resistant, solid metal pushbuttons
Handing	Factory-handed; not field reversible
Standard Finishes	Antique Brass 05 (609), Satin Chrome 26D (626)
Optional Finishes	Bright Chrome 026 (625), Bright Brass 03 (605)
Backset	2¾" (70 mm)
Latch	¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
Minimum Stile Recommended	5" (127 mm)
Weight	9.8 lbs. (3.7 kg)
Strike	4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
Key Override
Interchangeable Cores	Small format—Best and equivalents (6 or 7-pin length); core not included
Removable Cores	Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin (6-pin length), Schlage, and Sargent; core not included
Installation
Door Preparation	Easily installs on wood or metal doors. Standard (86) mortise preparation
Door Thickness	1¾" (44 mm) to 2¼" (57 mm)
Items Supplied Include	Lock assembly, installation manual, full-scale template, combination change tool, and required installation hardware
Certification and Testing
Accessibility Standard	Americans with Disabilities Act (ADA); fixed ADA-compliant levers
Durability	Weather resistant
Fire Rating	3-hour UL/ULC fire rating for "A" labeled doors
Warranty
Warranty	3-year warranty

Kaba Access & Data Systems Americas Winston-Salem NC 27105

1-800-849-8324

www.kaba-adsamericas.com KAA1349 0116
