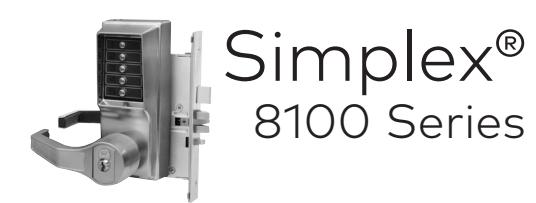

Simplex 8100 Series Price List
Open the original PDF document
View PDF
| Base Model | Description | Base Price |
|---|---|---|
| LR8146B26D41 | Mortise Lock with Lever, Key Override, Passage, Lockout | $790.00 |

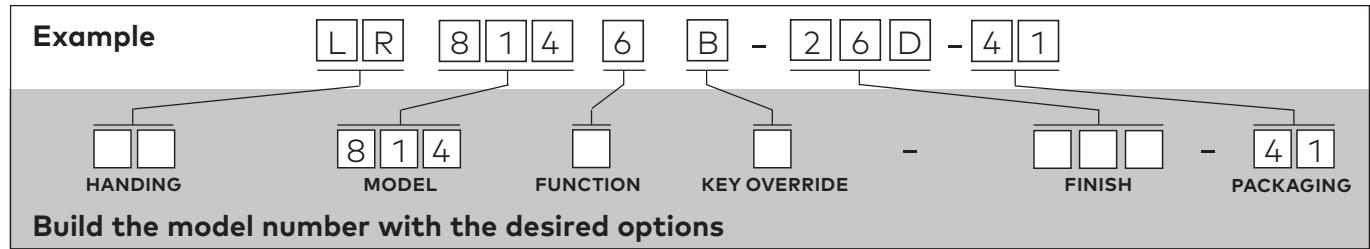

Choose One Option from Each Category
| Handing Options | Description | Price |
|---|---|---|
| L | Left Hand | No Charge |
| LR | Left Hand Reverse | No Charge |
| R | Right Hand | No Charge |
| RR | Right Hand Reverse | No Charge |
| Function Options | Description | Price |
|---|---|---|
| 6 | Combination Entry, Key Override, Passage, Lockout | No Charge |
| 8 | Combination Entry, Key Override, Passage, Lockout, Deadbolt | Add $30.00 |
| Key Override Options | Description | Price |
|---|---|---|
| В | SFIC, Best and Equivalents (6 or 7-pin length); core not included | No Charge |
| С | LFIC, Corbin Russwin (6-pin length); core not included | No Charge |
| M * | LFIC, Medeco/ASSA/Yale/Abloy (5 or 6-pin length); core not included | No Charge |
| R | LFIC, Sargent; core not included | No Charge |
| S | LFIC, Schlage; core not included | No Charge |
| Finish Options | Description | Price |
|---|---|---|
| 026 | Bright Chrome (625) | Add $25.00 |
| 03 | Bright Brass (605) | Add $25.00 |
| 05 | Antique Brass (609) | No Charge |
| 26D | Satin Chrome (626) | No Charge |
Items Supplied with the Lock
- Installation Manual
- Full-Scale Template
- Required Installation Hardware
Notes
* Medeco/ASSA/Yale/Abloy (5 and 6-pin length)
5 and 6-pin Medeco/ASSA/Abloy cylinders require a special knob spacer (included in package)
