Simplex 7106 Template

Open the original PDF document

View PDF

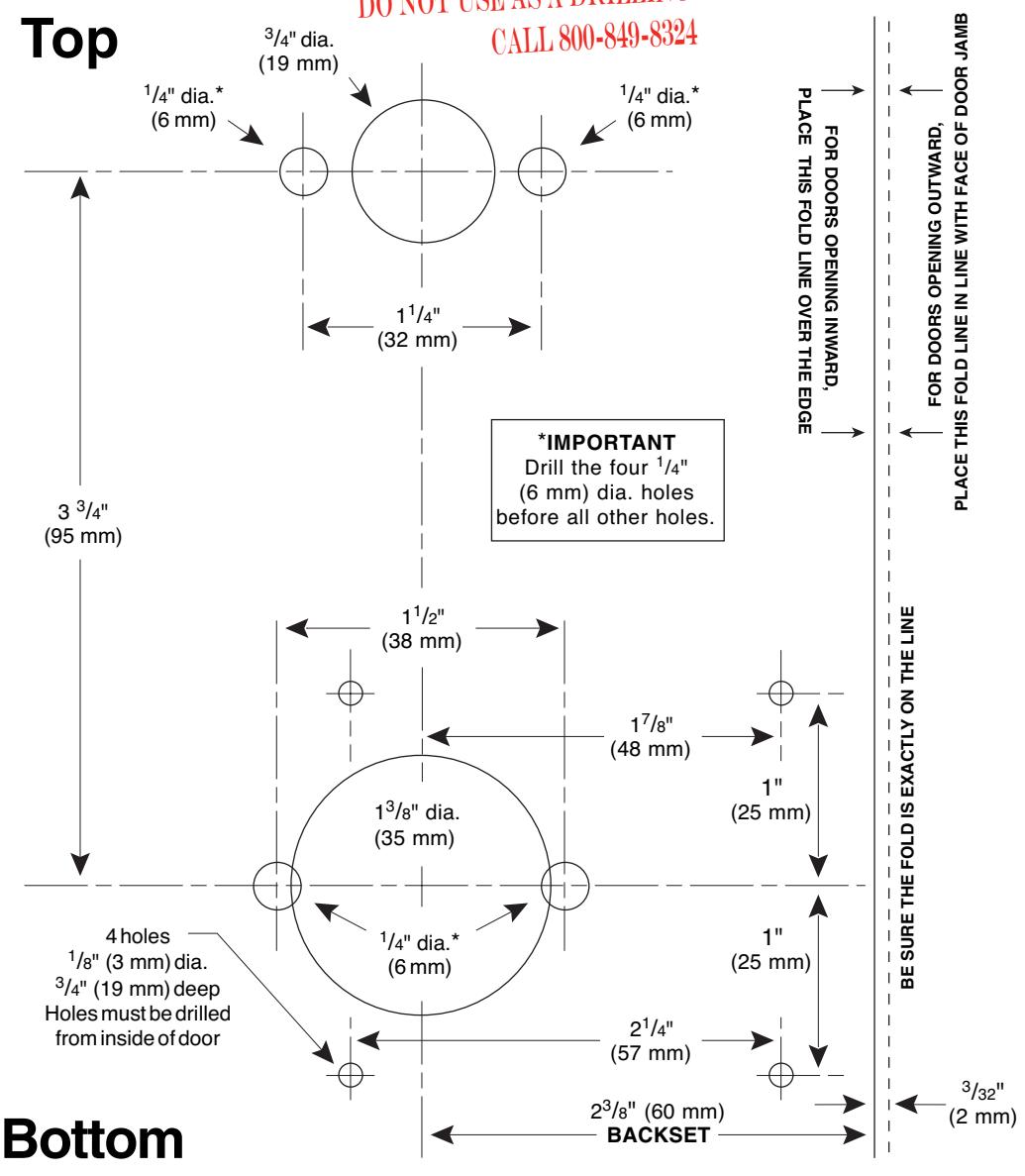

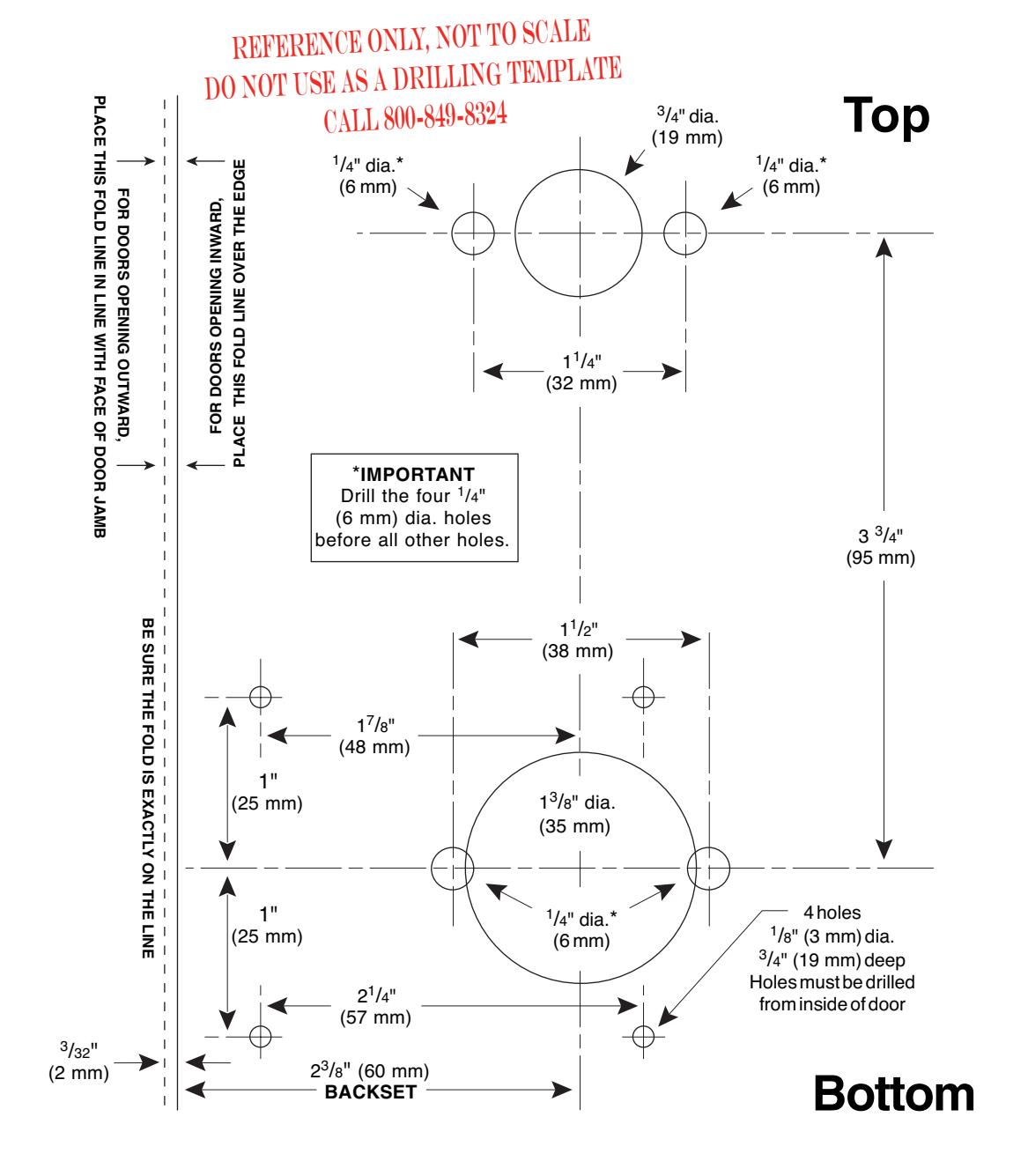

REFERENCE ONLY, NOT TO SCALE DO NOT USE AS A DRILLING TEMPLATE

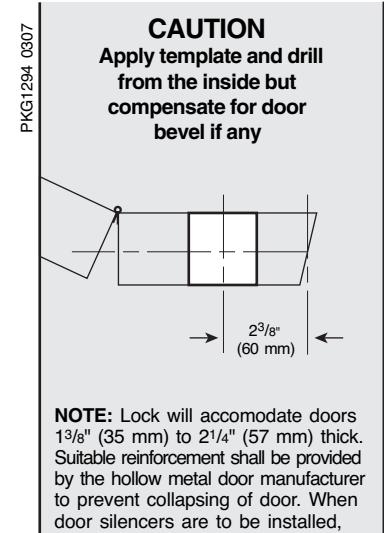

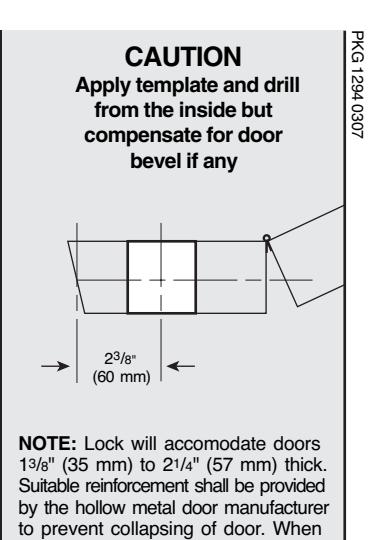

door silencers are to be installed, proper allowances must be made for

strike location.

Place this template on the INTERIOR SIDE OF THE DOOR using the correct fold line for door edge for door opening inward or outward.
