Simplex 7102, 7108 Template

REFERENCE ONLY, NOT TO SCALE

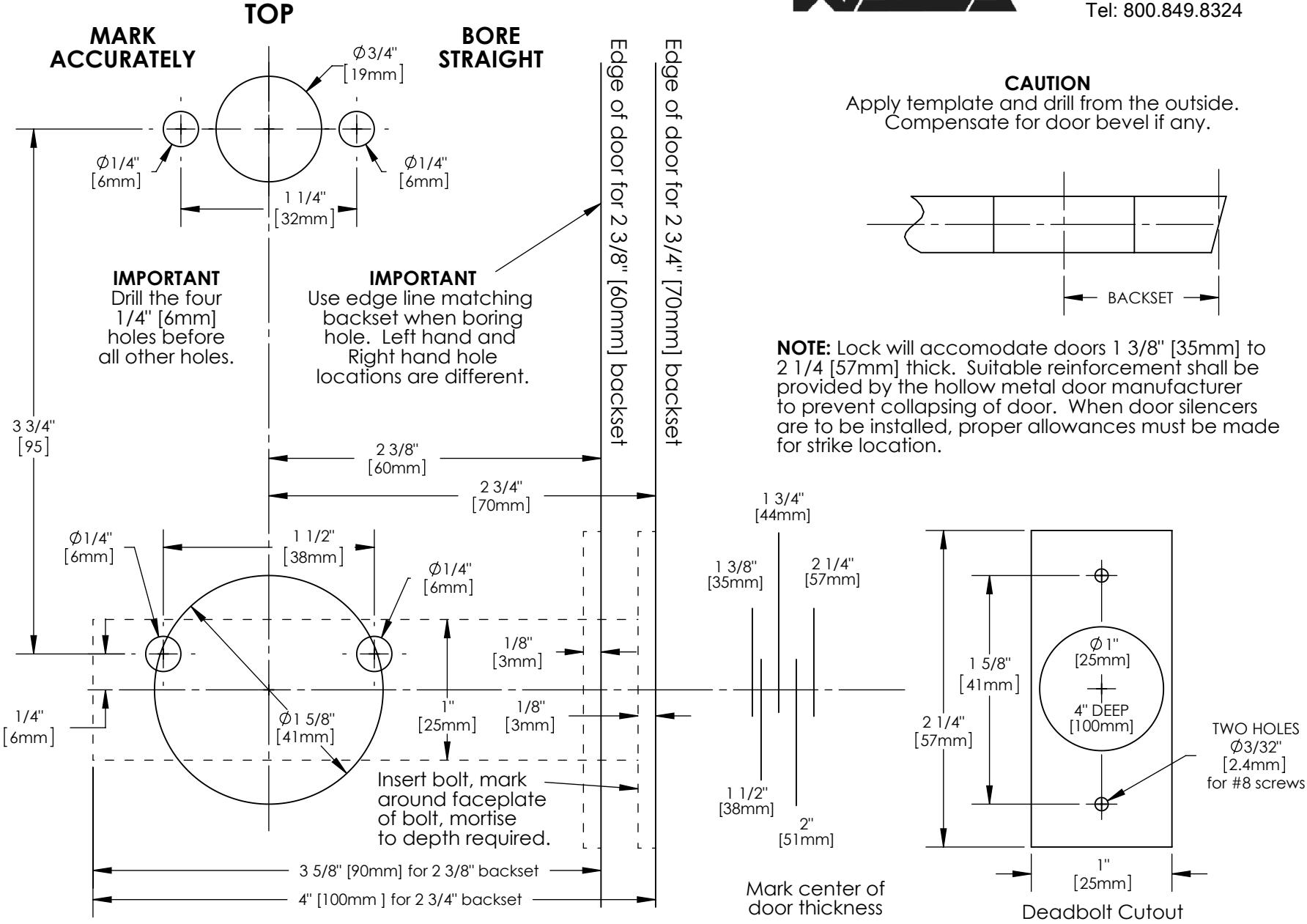

7102 / 7108 MODELS TEMPLATE, LEFT HAND DOOR AS A DRILLING TEMPLATE

CALL 800-849-8324

Kaba Access Controls www.kabaaccess.com Tel: 800.849.8324

Kaba Access Controls www.kabaaccess.com Tel: 800.849.8324

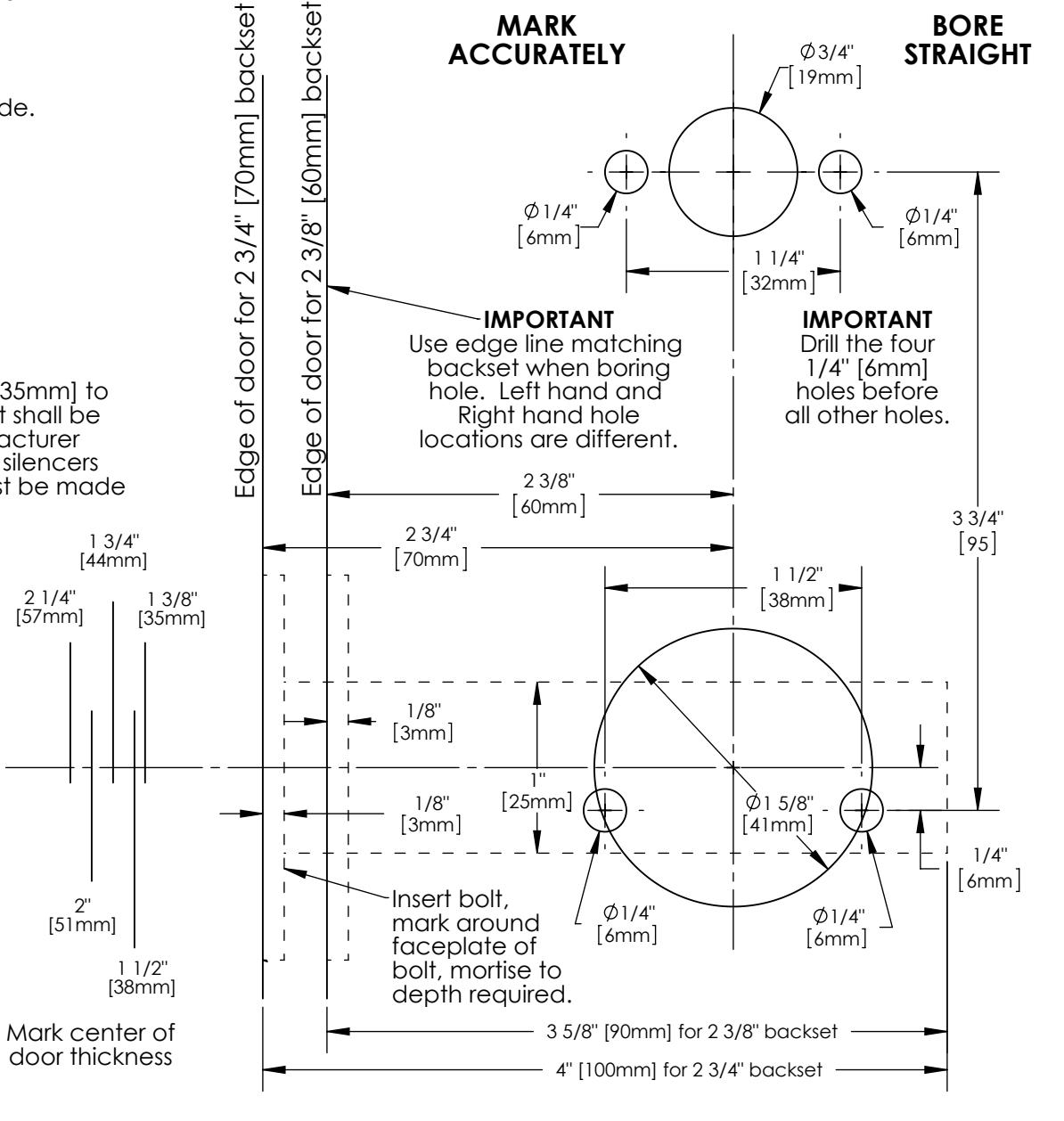

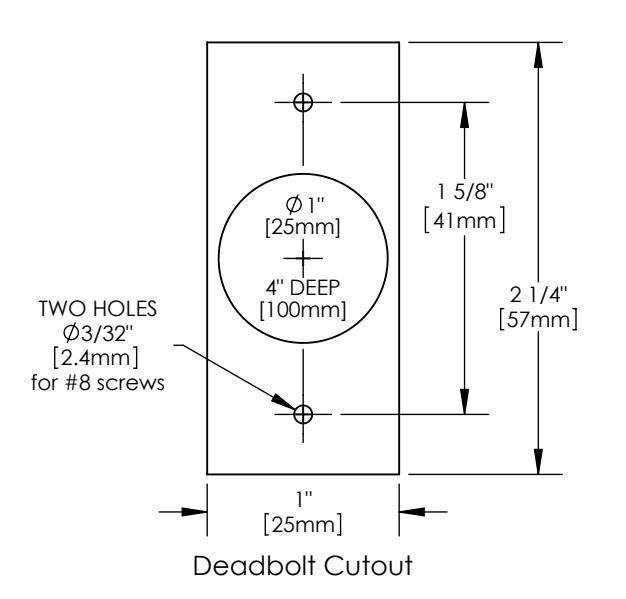

7102 / 7108 MODELS TEMPLATE, RIGHT HAND DOOR TOP

MARK

ACCURATELY

Ø1/4"

backset

[60mm]

CAUTION

Apply template and drill from the outside. Compensate for door bevel if any.

NOTE: Lock will accomodate doors 1 3/8" [35mm] to 2 1/4 [57mm] thick. Suitable reinforcement shall be provided by the hollow metal door manufacturer to prevent collapsing of door. When door silencers are to be installed, proper allowances must be made for strike location.

2"

[51mm]

1 3/4"

2 1/4"

[57mm]

BORE STRAIGHT

Ø1/4"

Ø3/4" 19mm
