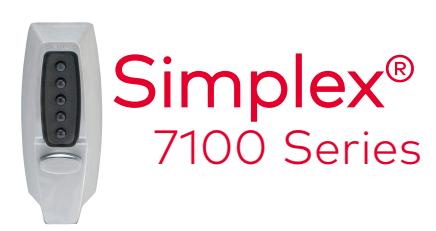

Simplex 7100 Series Configurator
Open the original PDF document
View PDF
| Base Model | Description |
|---|---|
| 7104-26D-41 | Auxiliary Lock with Thumbturn, 13 mm Deadlocking Latch, 70 mm backset |

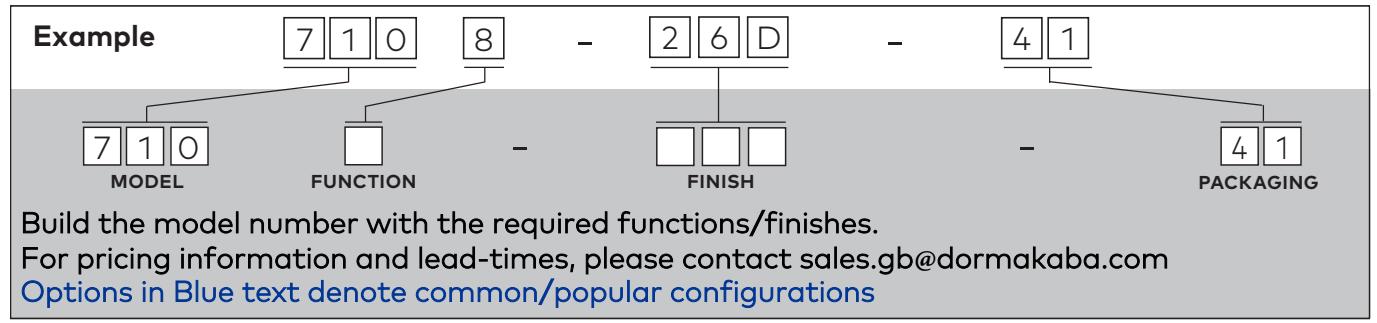

Choose One Option from Each Category
| Function Options | Description |
|---|---|
| 2 | 1" (25 mm) Tubular Deadbolt, flat front face plate 2¾" (70 mm) backset |
| 4 |
½" (13 mm) Deadlocking Latch, flat front face plate Adjustable 2⅜" (60 mm) to
2¾" (70 mm) backset |
| 6* |
⅝" (16 mm) Rim Deadlocking Latch (for wood doors only) 2⅜" (60 mm)
backset (Black or Satin Chrome lock only)** |
| 8 | 1" (25 mm) Tubular Deadbolt, flat front face plate 2⅜" (60 mm) backset |
| Finish Options | Description | |
|---|---|---|
| 26D | Satin Chrome (626) | Standard Finish |
| 05 | Antique Brass (609) | |
| 03 | Bright (polished) Brass (605) | Standard Finish |
| AW** | Antique White (Powder Paint) (062) | |
| AC** | Antique Copper (Powder Paint) (051) | |
| GV | Gold Vein (Powder Paint) (060) | |
| SV** | Silver Vein (Powder Paint) (061) | |
| 19* | Black (Powder Paint) |
* 7106 model available in black with black inside trim or satin chrome with black inside trim only. For all other black 7100 Series models, inside trim is satin chrome
Items Supplied with the Lock
- Installation Manual
- Full-Scale Template
- Required Installation Hardware
dormakaba UK & Ireland Lower Moor Way Tiverton Devon EX16 6SS
T: +44 (0)870 000 5625 E: info.gb@dormakaba.com
** While supplies last. contact sales.gb@dormakaba.com for availability
