Simplex 7000 Installation Template

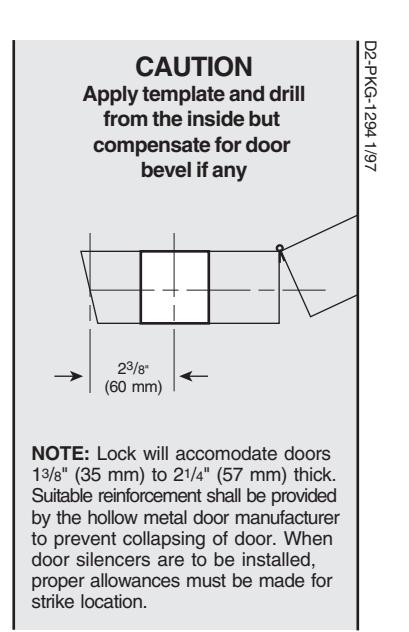

proper allowances must be made for strike location. 7006

to prevent collapsing of door. When door silencers are to be installed,

LEFT HAND DOOR

TEMPLATE

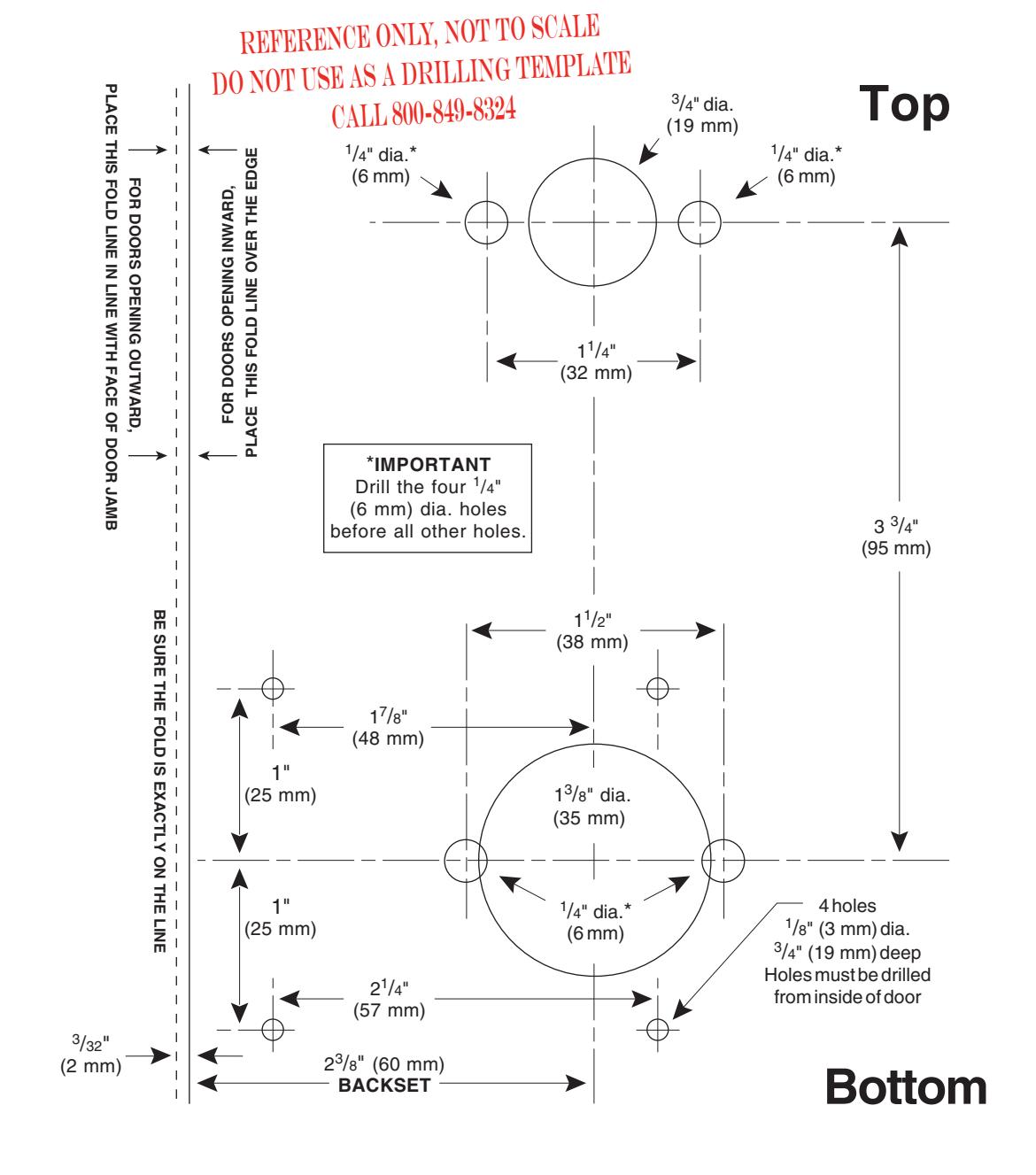

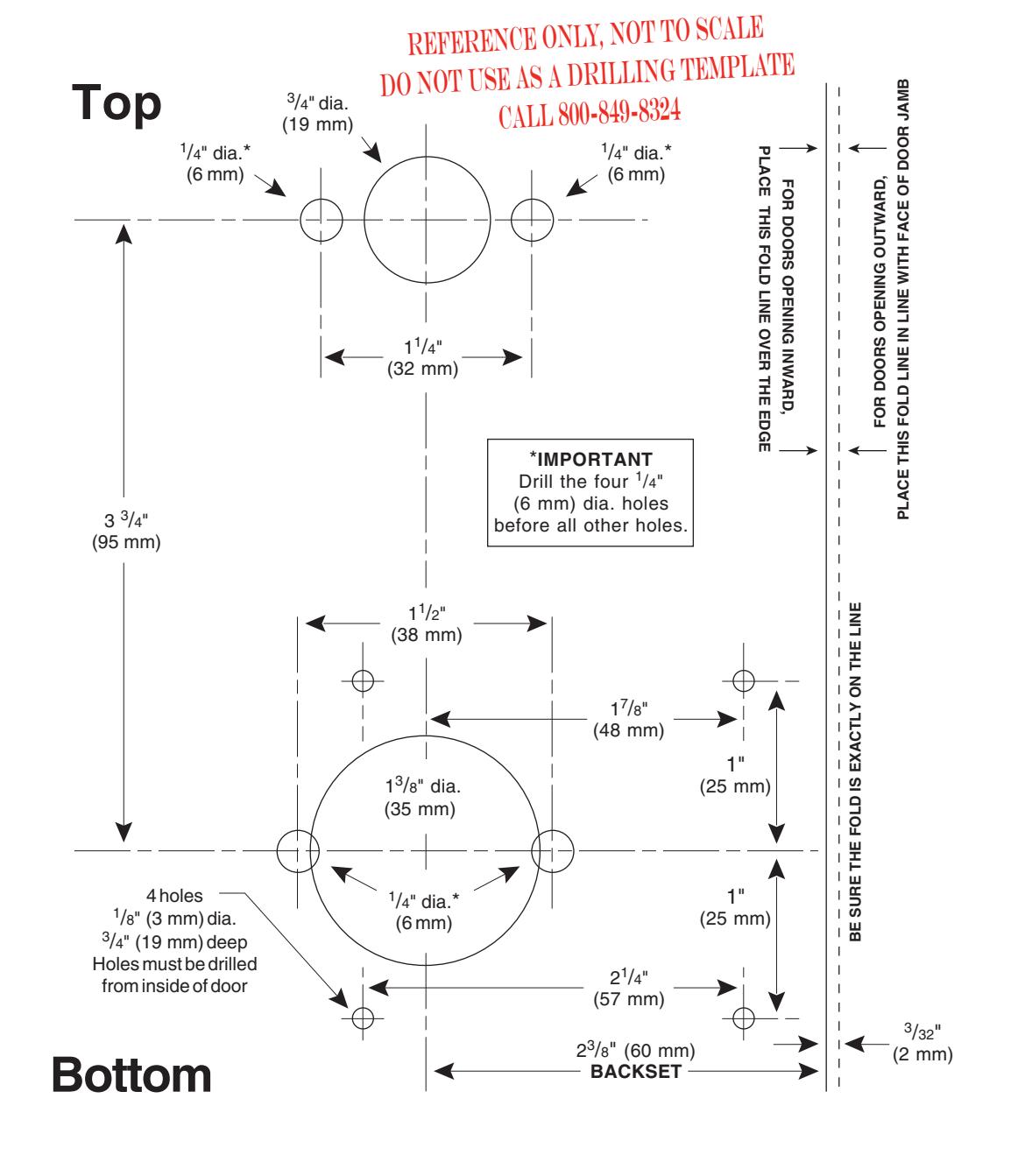

MARK ACCURATELY BORE STRAIGHT

Place this template on the INTERIOR SIDE OF THE DOOR using the correct fold line for door edge for door opening inward or outward.
