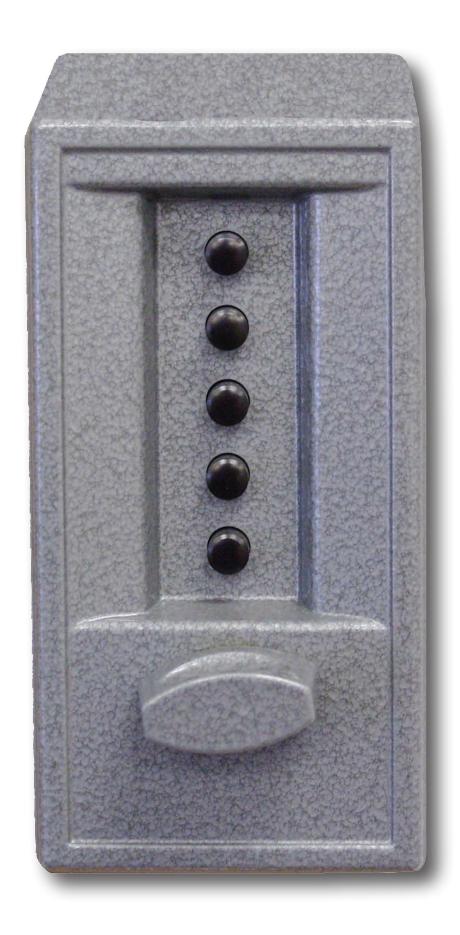

Simplex ® 6200

Model 6202

• Combination Entry
• UL Listed Latch
• ½" (13 mm) Throw Floating Face Plate
• Backset 2⅜" (60 mm)
• Primary Lock

Model 6204

• Combination Entry
• UL Listed Latch
• ½" (13 mm) Throw Floating Face Plate
• Backset 2¾" (70 mm)
• Primary Lock

Features

Access Control

Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides fully mechanical exterior access by combination, while allowing free egress at all times by interior knob.

No Battery

Fully mechanical lock eliminates the material and labor expense of battery replacements

Locking Device

Cylindrical latch

Number of Codes

Single access code—one easy-to-manage code for all users

Programming

Lock is easily programmed via keypad without removing lock from the door

Handing

Factory-handed left; easily field reversible

Operation Modes

Pushbutton Access

A cost effective access control solution

Mechanical Features

Construction	All metal cast front housing, force-resistant, clutch-protected exterior thumbturn, unified interior trim plate, fixed interior knob
Numeric Keypad	Vandal resistant, solid metal pushbuttons
Finishes	Hard, durable powder paint finishes: Gold Tone (060), Almond (067), Black (085), and Gray (086) (Gold and Almond inside trim/plated Bright Brass) (Black and Gray inside trim/plated Satin Chrome)
Latch	½" (13 mm) throw latch, floating faceplate (UL listed)
Backset	2¾" (70 mm) or 2⅜" (60 mm) backset
Strike	Standard strike plate
Minimum Stile Recommended	5" (127 mm)
Weight	4.5 lbs. (2 kg)
Installation
Installation	ASA 161 door preparation with two additional through bore holes. Lock can be inverted if the existing auxiliary lock obstructs installation.
Door Thickness	1⅜" (35 mm) to 2¼" (57 mm); wood or metal
Items Supplied Include	Installation manual, full-scale template, combination change tool, and required installation hardware
Certification and Testing

Durability	Weather resistant
Fire Rating	3-hour UL/ULC fire rating for "A" labeled doors

Warranty

Warranty 1-year warranty
