Simplex 5000 Series Price List
Open the original PDF document
View PDF

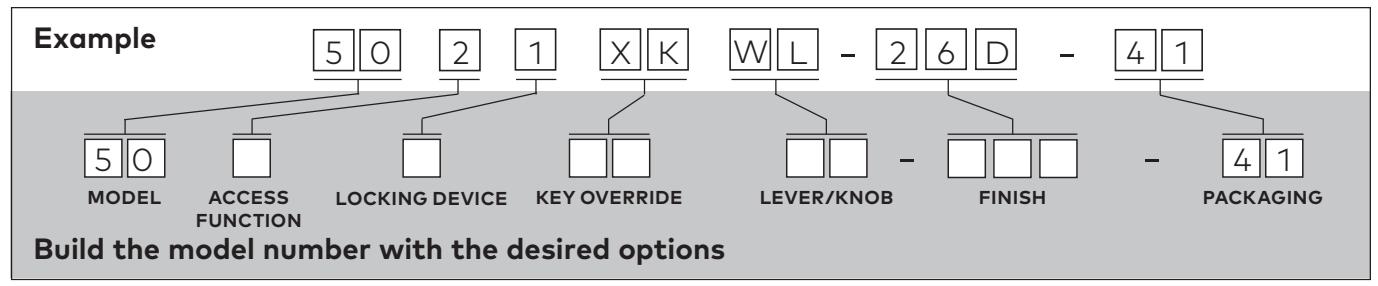

| Base Model | Description | Base Price |
|---|---|---|
| 5021XKWL26D41 | Cylindrical Lock with Lever, Key-in-Lever Cylinder | $600.00 |
Choose One Option from Each Category
| Function Options | Description | Price |
|---|---|---|
| 1+ | Exit Trim (E.T.) (available with lever only) | Add $100.00 |
| 2 | Cylindrical Lock | No Charge |
| 3 | Cylindrical Lock, Interior Combination Change—D.O.D. | Add $50.00 |
| 4 | Cylindrical Lock, Passage | Add $50.00 |
| 5 | Cylindrical Lock, Passage, Interior Combination Change—D.O.D. | Add $100.00 |
| 6* | American Steel/Mortise (ASM) (available with lever only) | Add $120.00 |
| Locking Device Options | Description | Price |
|---|---|---|
| 0+ | Exit Trim (available with E.T. only) | No Charge |
| 1 | Cylindrical " (13 mm) throw latch, floating face plate, " (70 mm) backset (UL listed) | No Charge |
| 2 | Cylindrical " (13 mm) throw latch, floating face plate, " (60 mm) backset (UL listed) | No Charge |
| 5 | Cylindrical ¾" (19 mm) throw latch, beveled face plate, 2¾" (70 mm) backset (UL listed) | No Charge |
| 6 | Std Mortise, 1¼" (32 mm) face plate, no deadbolt (non-handed) | No Charge |
| 7 | Std Mortise, 11/4" (32 mm) face plate, with deadbolt and lockout (non-handed) | Add $30.00 |
| 8 | Std Mortise, 11/4" (32 mm) face plate, no deadbolt with passage (non-handed) | Add $30.00 |
| Key Override Options | Description | Price |
| XK | K-I-L, Kaba Cylinder (Kaba 90 Keyway) included | No Charge |
| XS | K-I-L, Kaba Cylinder (Schlage "C" Keyway) included | No Charge |
| В | SFIC, Best and Equivalents (6 or 7-pin length); core not included | No Charge |
| С | LFIC, Corbin Russwin (6 or 7-pin length); core not included | No Charge |
| M | LFIC, Medeco/ASSA/Yale/Abloy (5 or 6-pin length); core not included | No Charge |
| R | LFIC, Sargent; core not included | No Charge |
| S | LFIC, Schlage; core not included | No Charge |
| Lever ⁄ Knob Options | Description | Price |
|---|---|---|
| WL | Winston Lever | No Charge |
| WK | Winston Knob (cylindrical locks only) | No Charge |
| Finish Options | Description | Price |
|---|---|---|
| 026 | Bright Chrome (625) | Add $25.00 |
| 03 | Bright Brass (605) | Add $25.00 |
| 04 | Satin Brass (606) | Add $25.00 |
| 26D | Satin Chrome (626) | No Charge |
| 676* | Black with Satin Chrome Accents | No Charge |
| 744 | Dark Bronze with Brass Accents (simulated 10B/613) | Add $100.00 |
* While supplies last - consult factory for availability
Items Supplied with the Lock
- Installation Manual
- Full-Scale Template
- Required Installation Hardware
- Tailpiece for Specified Key Override
Notes
+ Exit Device Compatibility: dormakaba 9300/F9300 Series Rim Exit Device - call 800-523-8483 for pricing and availability
Other Compatible Devices (for the most accurate listing of compatible Exit Devices, visit go.dormakaba.com/Simplex5000
|
Arrow S1250
Arrow S3883F/S3800 Black & Decker (K-2) QED111/112 |
Dorex 8500R/8500F
Dorex 9500PR/9500FR Monarch 18R**, F18R** |
Von Duprin 22/22F
Von Duprin 98/98F Von Duprin 99/99F |
|---|---|---|
| Cal Royal 9800 | Precision 21/FL21 | Von Duprin XP98/99 |
| Cal Royal 2200 | Sargent 2828 | Yale YME2100/2100 |
| Corbin Russwin ED5200/5200A | Sargent 3828 | Yale 7100 |
| Detex 1001 BP1 | Sargent 8810E/8800 | |
| Detex 10/F10 Series | Sargent 8888 |
**( requires special K-Hub Adapter, not supplied by dormakaba)
• Cannot be used with mortise design or vertical rod Exit Devices
ATTENTION: Compatibility is subject to change if modifications are made by Exit Device manufacturers without dormakaba's knowledge
Exit Device not included (sold separately)
For mortise applications where additional door support is needed, order a mortise stabilizer for a hollow metal door from the accessories section.
