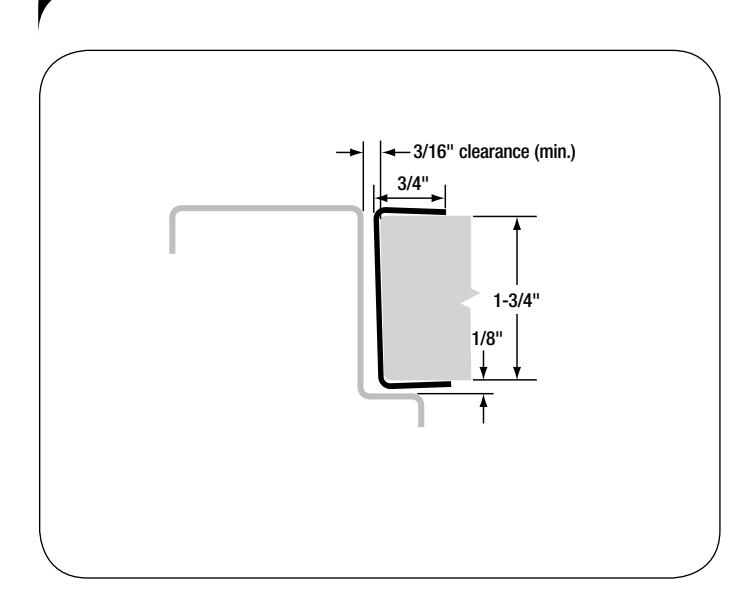

SL308 Continuous Edge Guard
MATERIAL: 16 gauge stainless steel.
LENGTHS: 79", 83", 85", 95" and 119" lengths standard for nominal door heights. Custom lengths are available.
FINISH: US32D satin stainless steel (630).
FASTENERS: #10 x 1-1/4" 304SS Phillips flathead undercut sheet metal screws are provided as a standard pack. Adjusta-Screw™ fasteners optional at extra cost.
ORDER: Specify edge guard length. Specify square or beveled door edge.
| SL308 EDGE GUARD SCREW COUNT | |
|---|---|
| HINGE LENGTH | DOOR SCREWS |
| 79" | 7 |
| 83" | 8 |
| 85" | 8 |
| 95" | 9 |
| 119" | 11 |
SL308 Continuous Edge Guard
SELECT Advantages
CORROSION-RESISTANT STAINLESS STEEL
Stainless steel construction creates a tough, highly secure opening.
VARIETY OF FINISHES
Available in polished, brushed and painted finishes to match, contrast or accent your building's design.
3-HR. FIRE RATING
Fire-rated out of the package. No extra parts to buy or install. No liability worries.
ADJUSTA-SCREW™ FASTENERS
Remedy out-of-square doors and frames easily. Correct fit variances up to 3/8" along full length of door. Available at extra cost.
