Select Hinges Geared Wide Throw Templates

TEMPLATES Wide Throw Geared Hinges

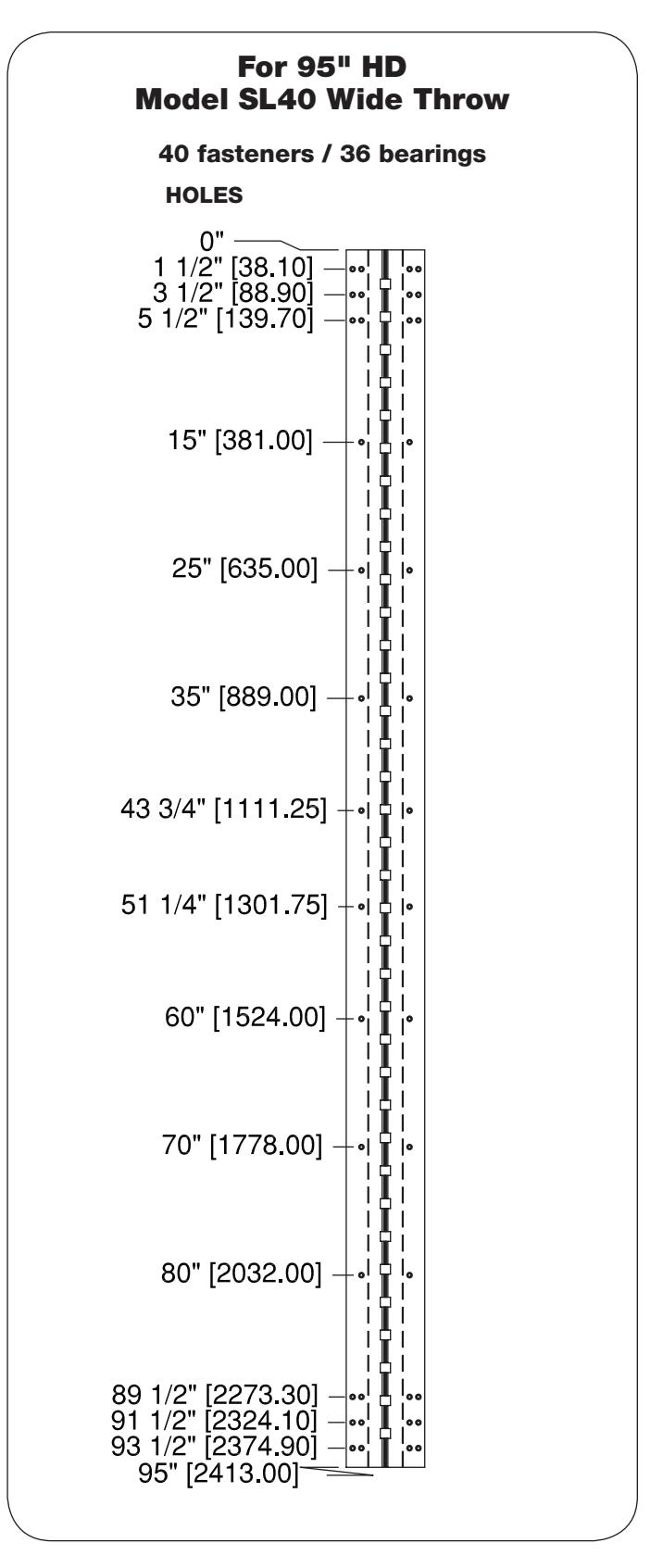

Q All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.

For 83" HD Model SL40 Wide Throw 38 fasteners / 32 bearings HOLES
