Select Hinges Geared Toilet Partition Templates

TEMPLATES Toilet Partition Geared Hinges

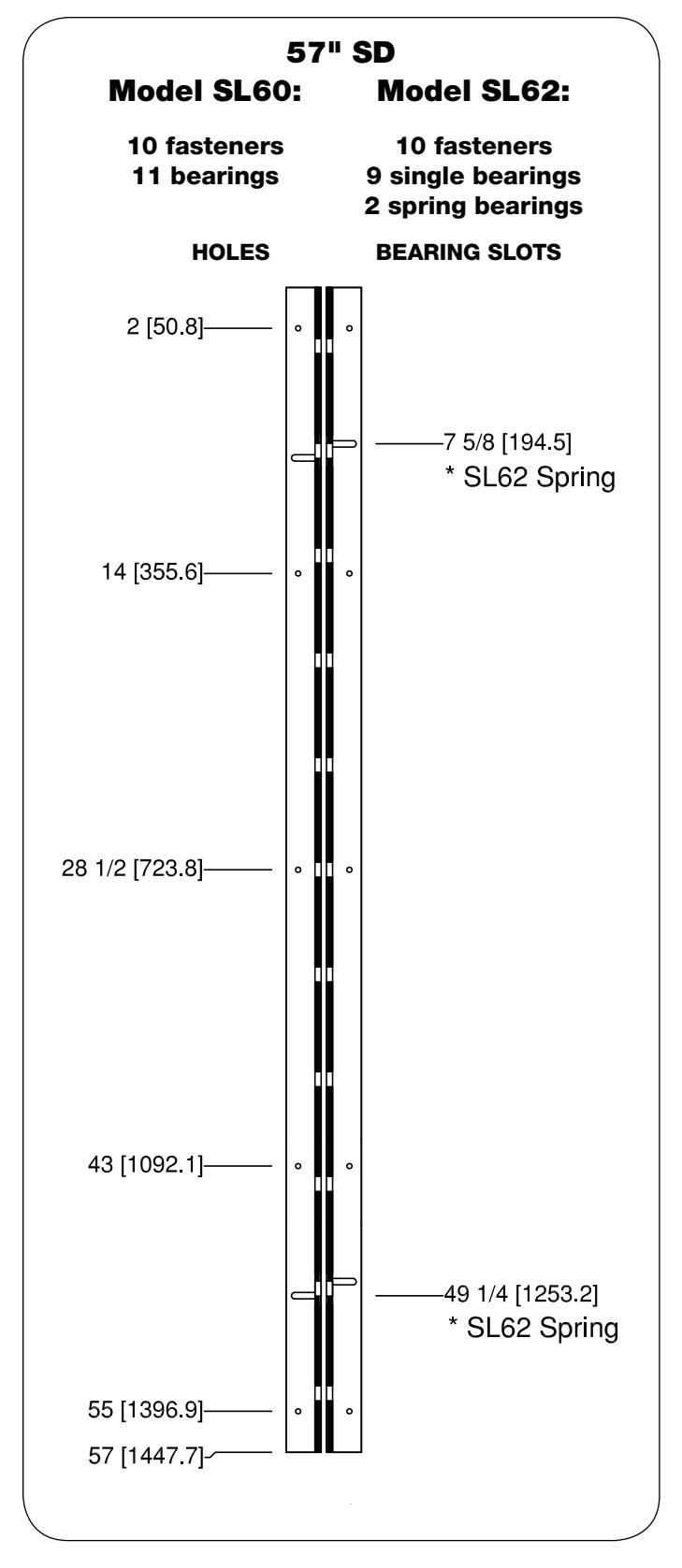

• Q All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.
• Q Minimum hinge length for two spring bearings on SL62 = 43-1/2".
