TEMPLATES Half Surface Geared Hinges

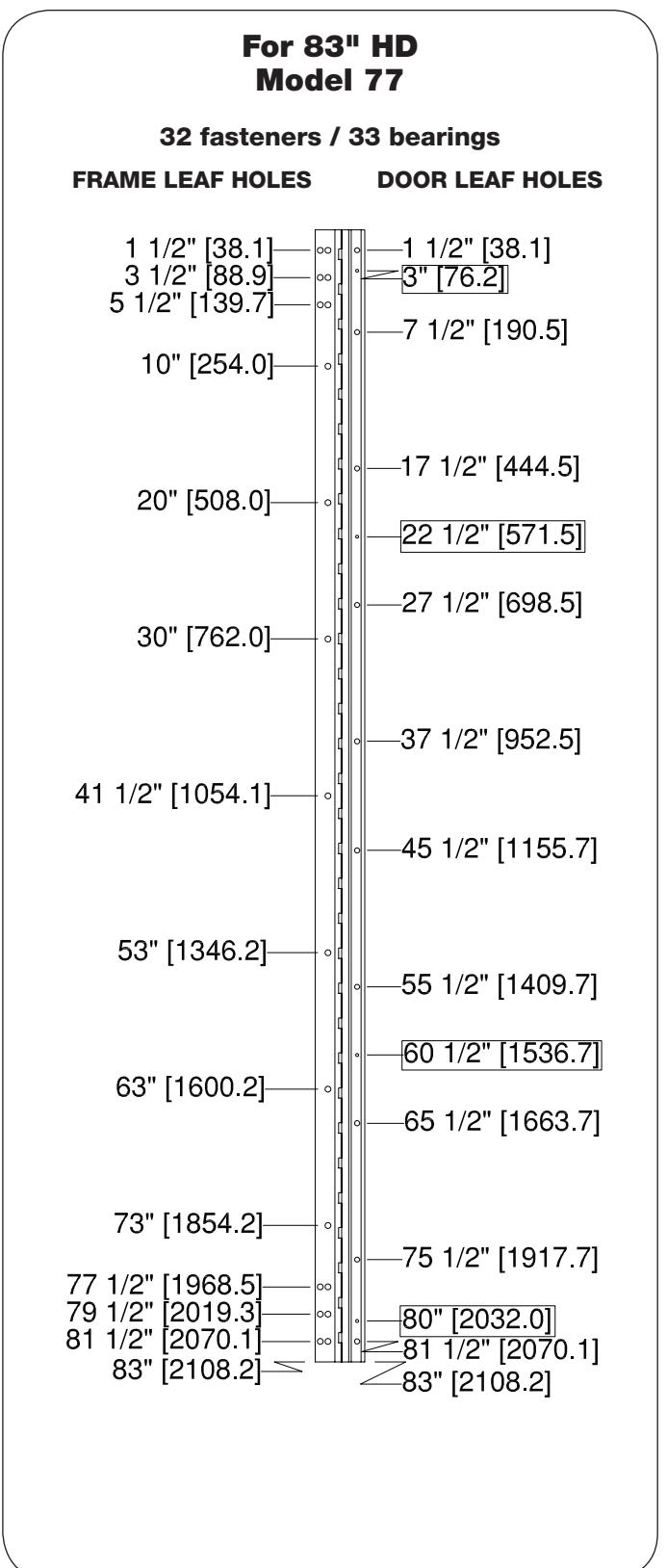

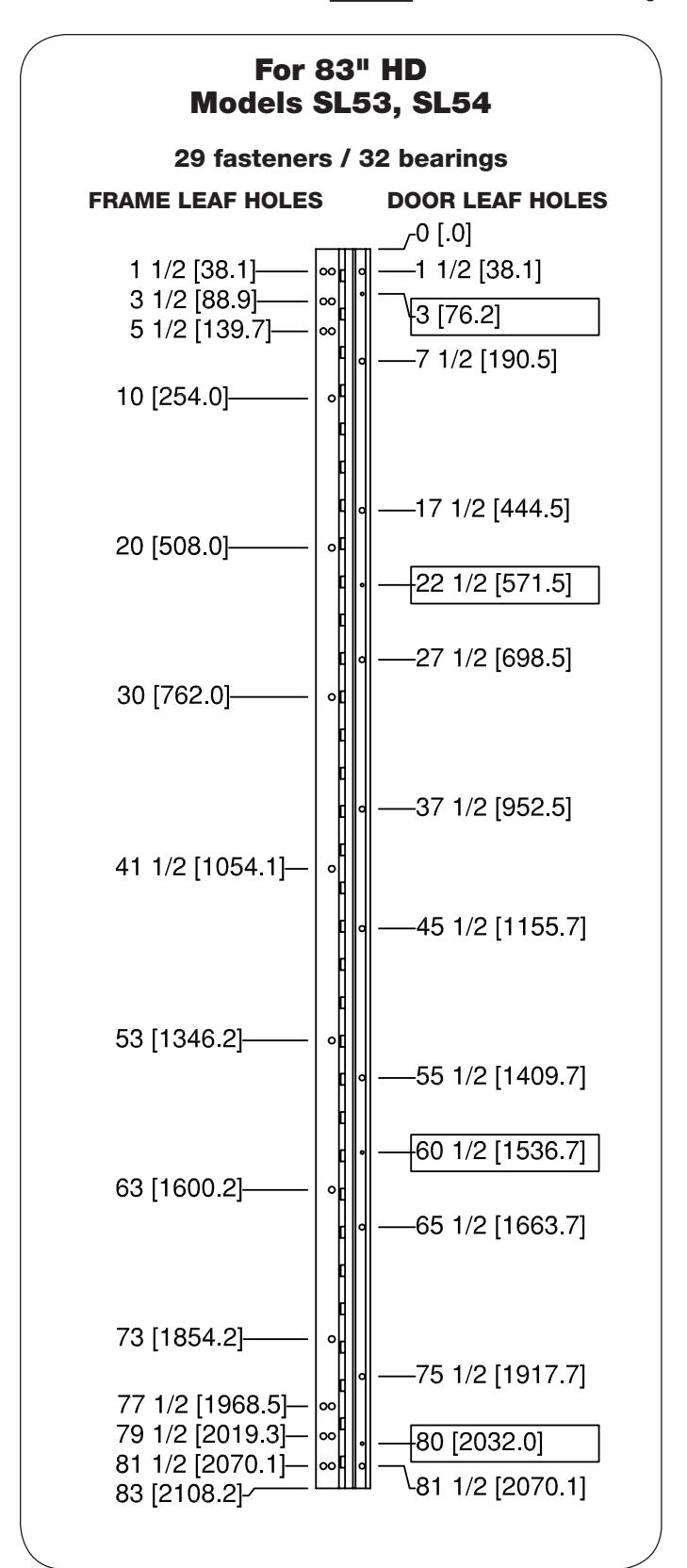

All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.
Dimensions shown inside boxes are locator screw mounting holes.

TEMPLATES Half Surface Geared Hinges

All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.
Dimensions shown inside boxes are locator screw mounting holes.

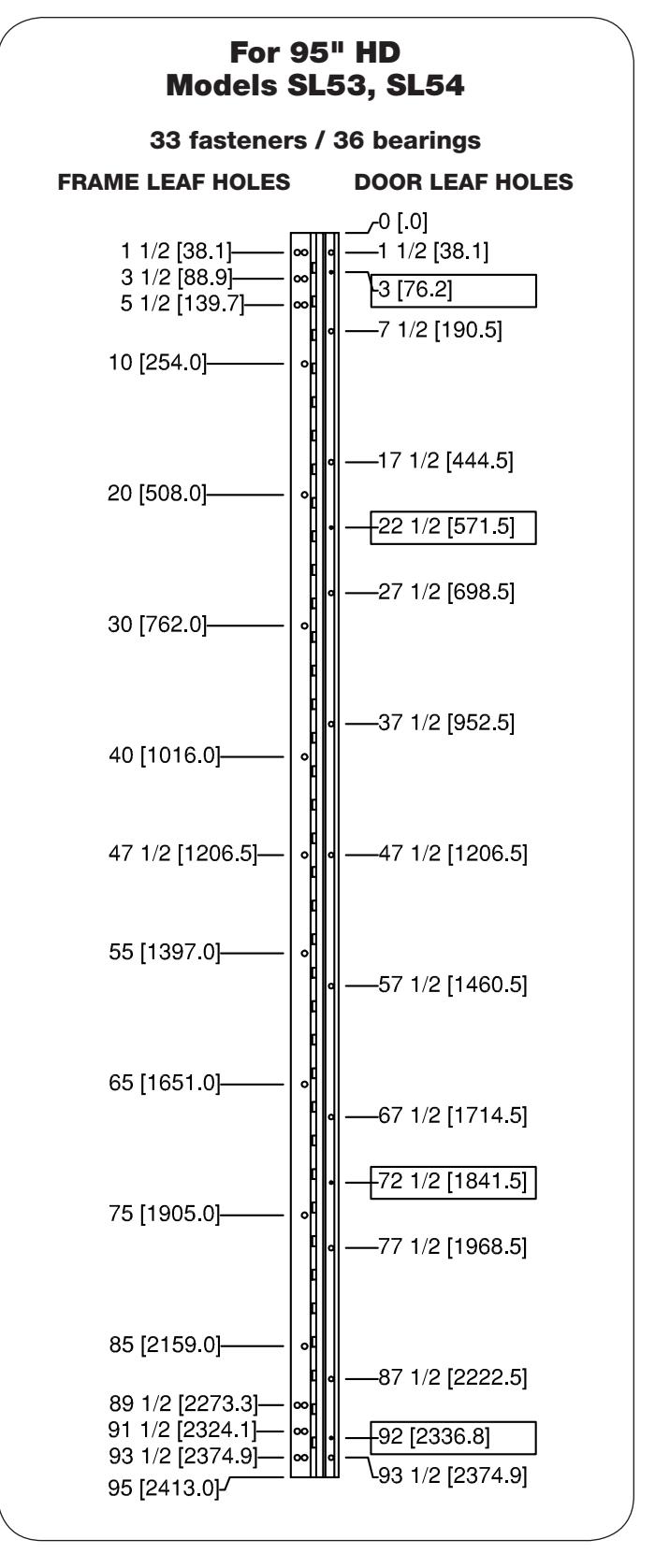

For 85" HD Models SL53, SL54 29 fasteners / 32 bearings FRAME LEAF HOLES DOOR LEAF HOLES

TEMPLATES Half Surface Geared Hinges

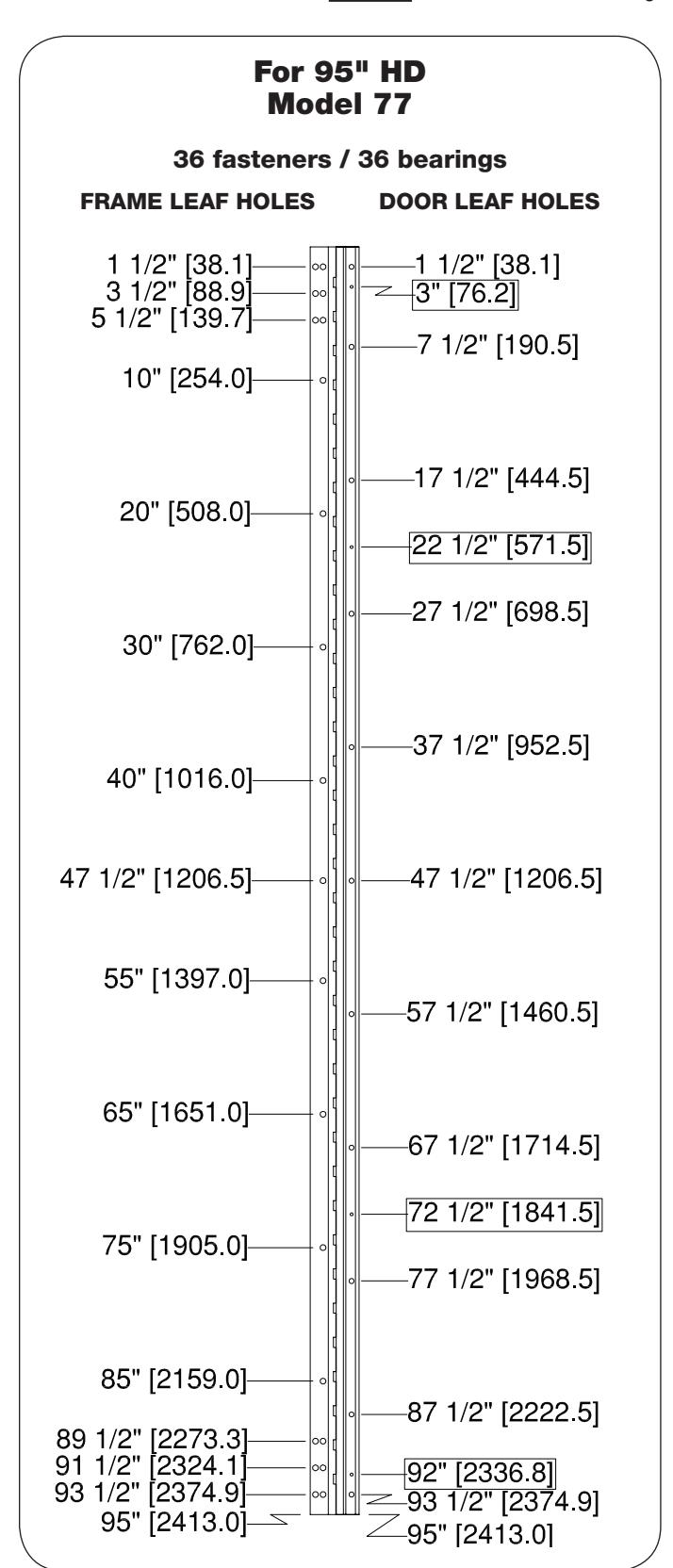

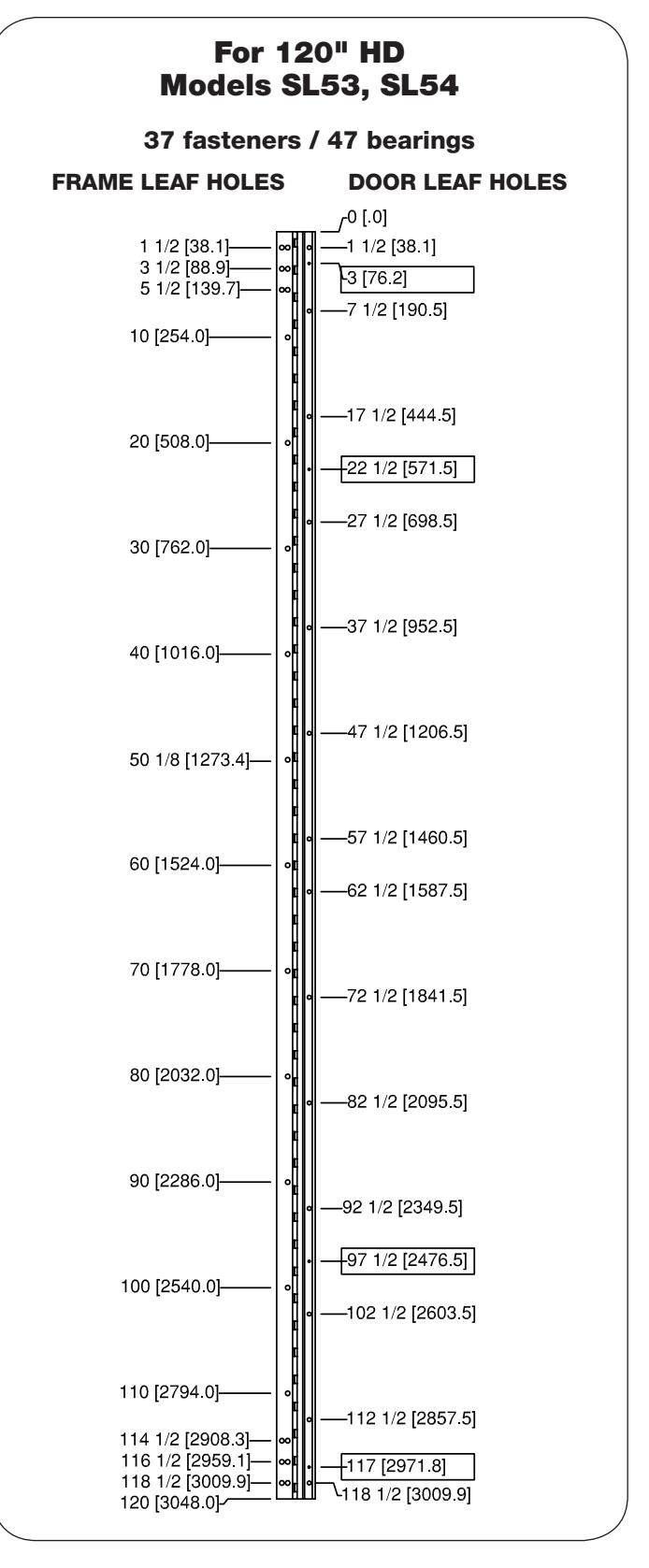

All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.
Dimensions shown inside boxes are locator screw mounting holes.
