Select Hinges Geared Half Mortise Templates

TEMPLATES Half Mortise Geared Hinges

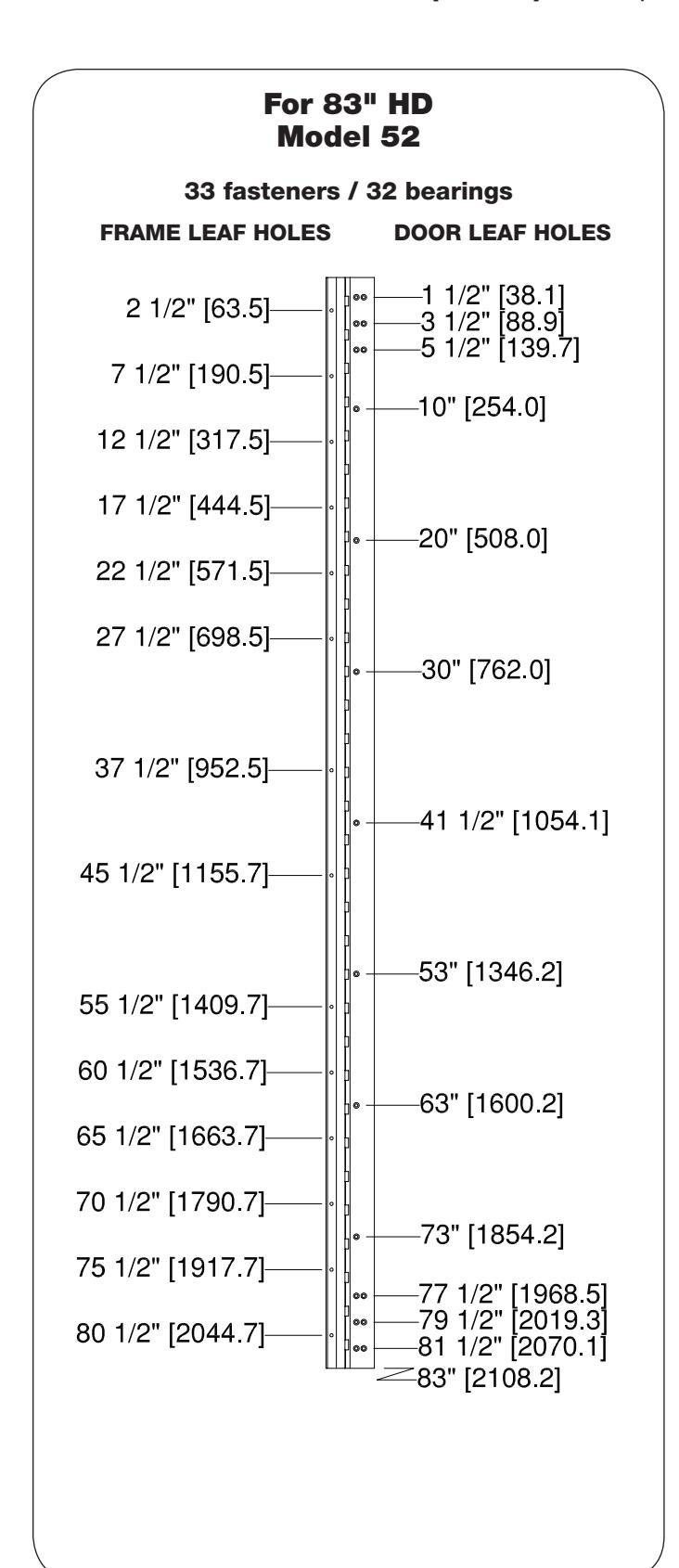

■ All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.

TEMPLATES Half Mortise Geared Hinges

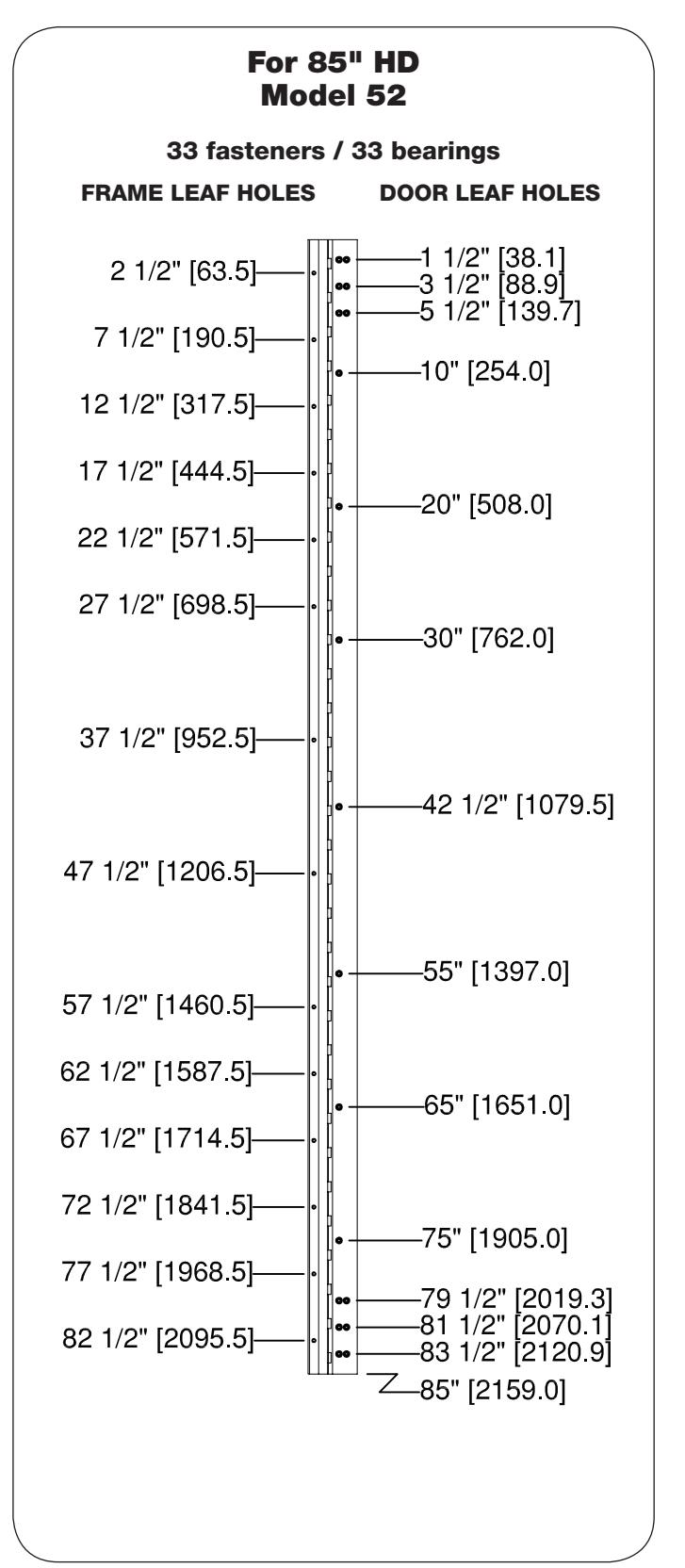

■ All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.

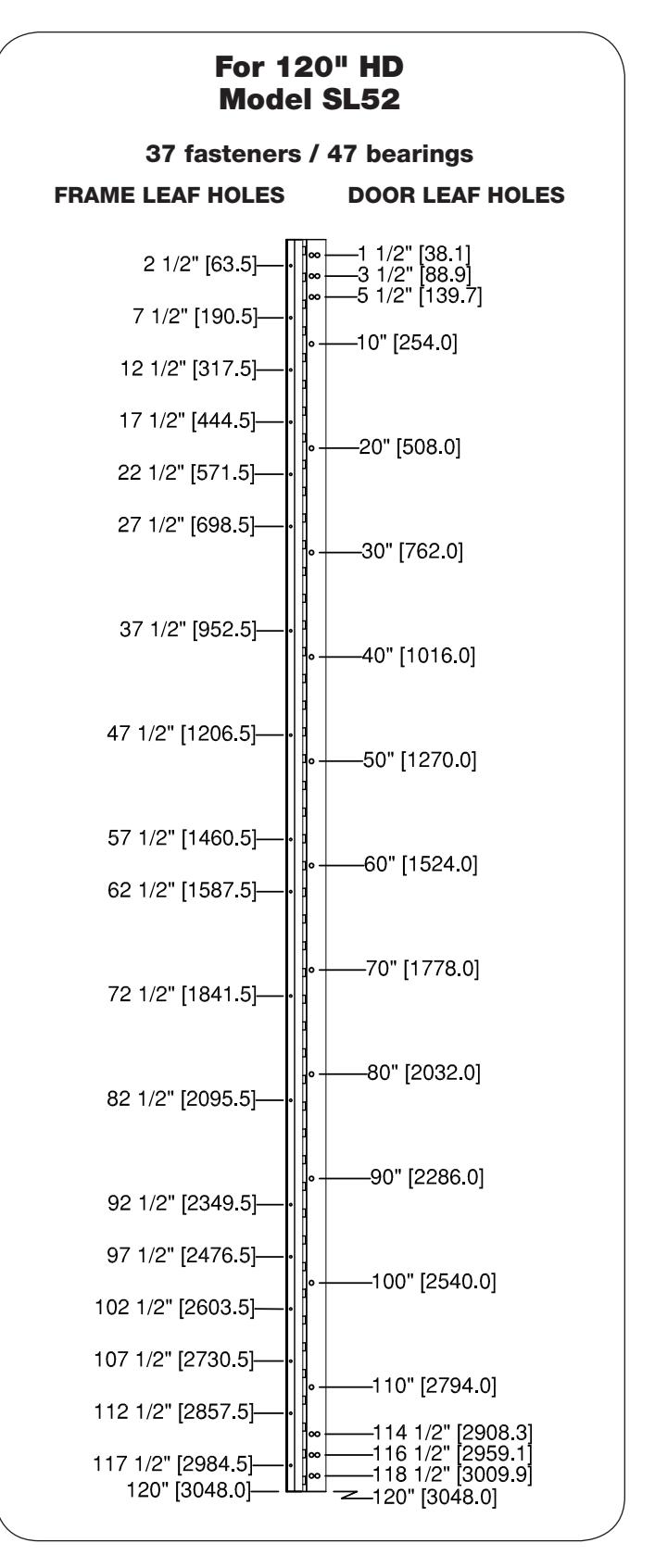

For 95" HD Model SL52 36 fasteners / 36 bearings FRAME LEAF HOLES DOOR LEAF HOLES
