Select Hinges Geared Concealed Templates

Open the original PDF document

View PDF

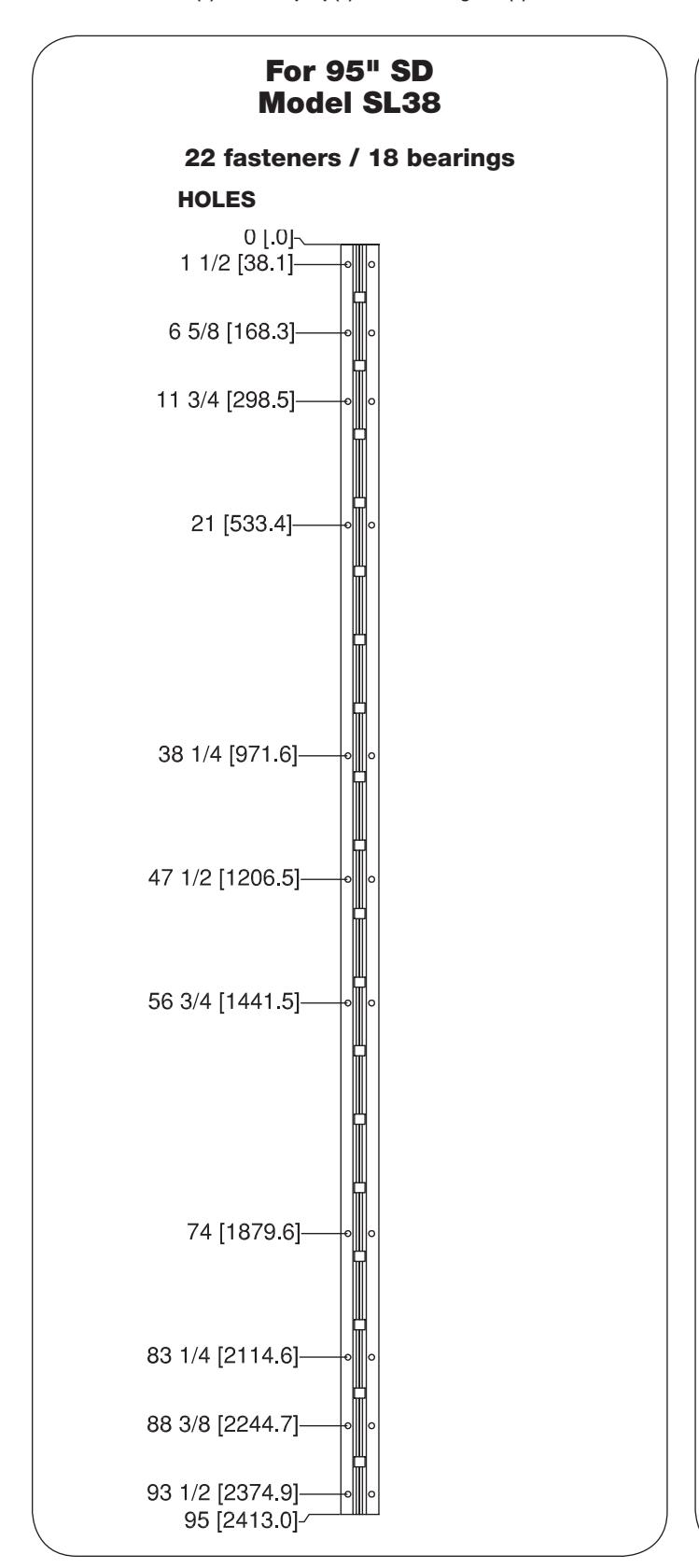

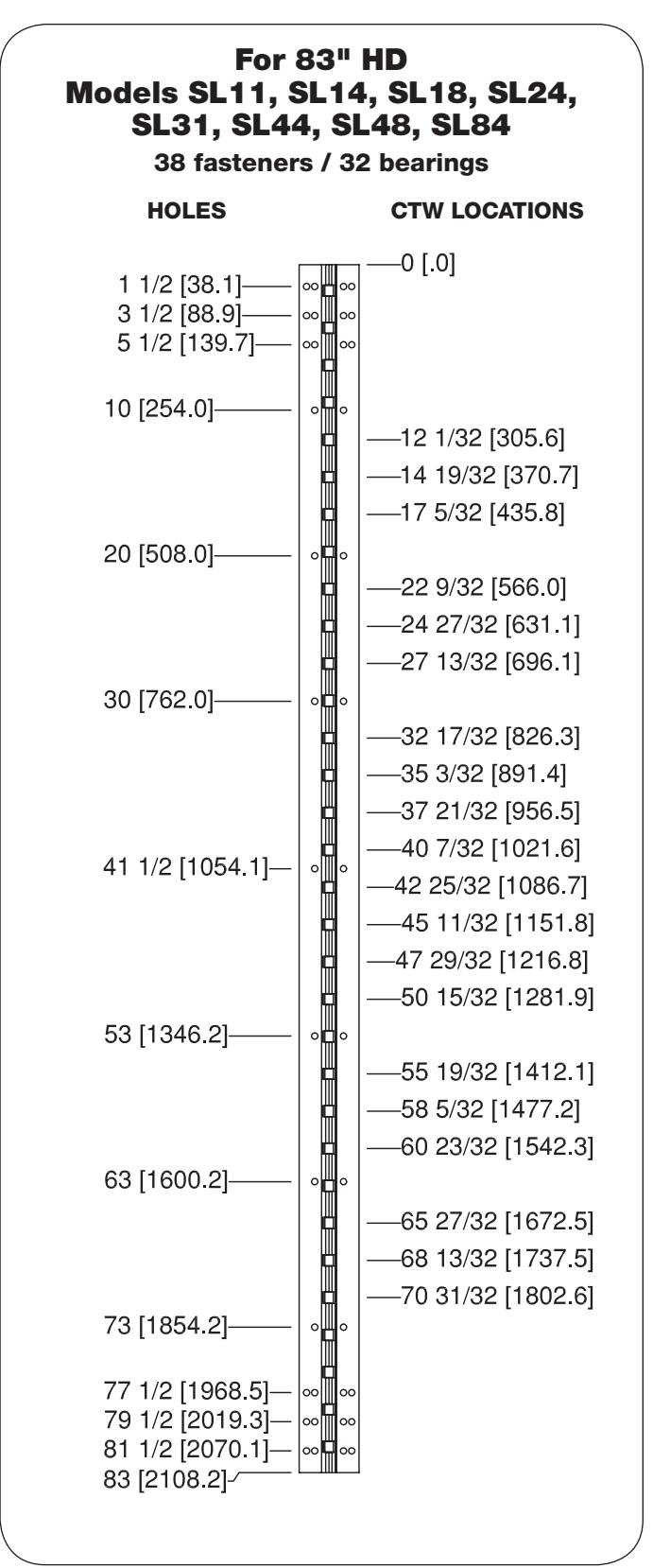

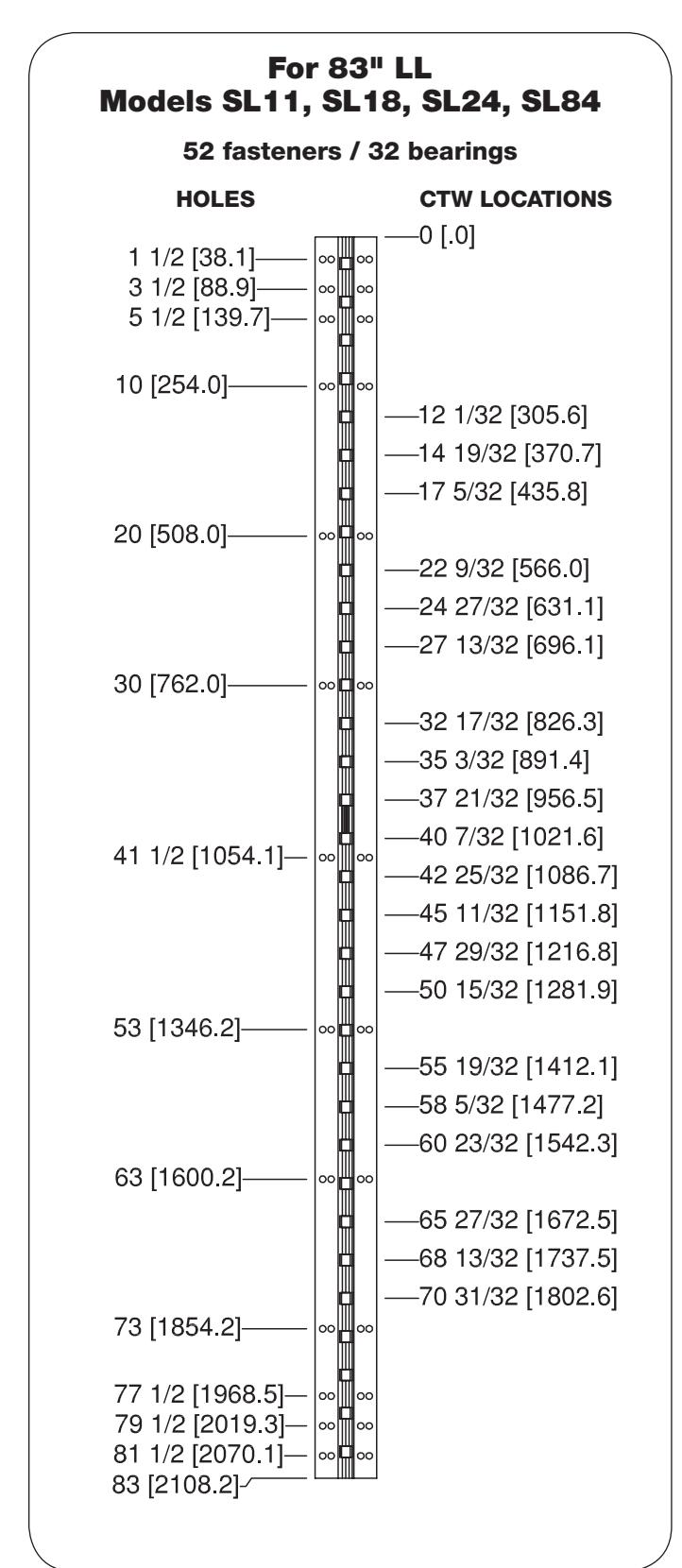

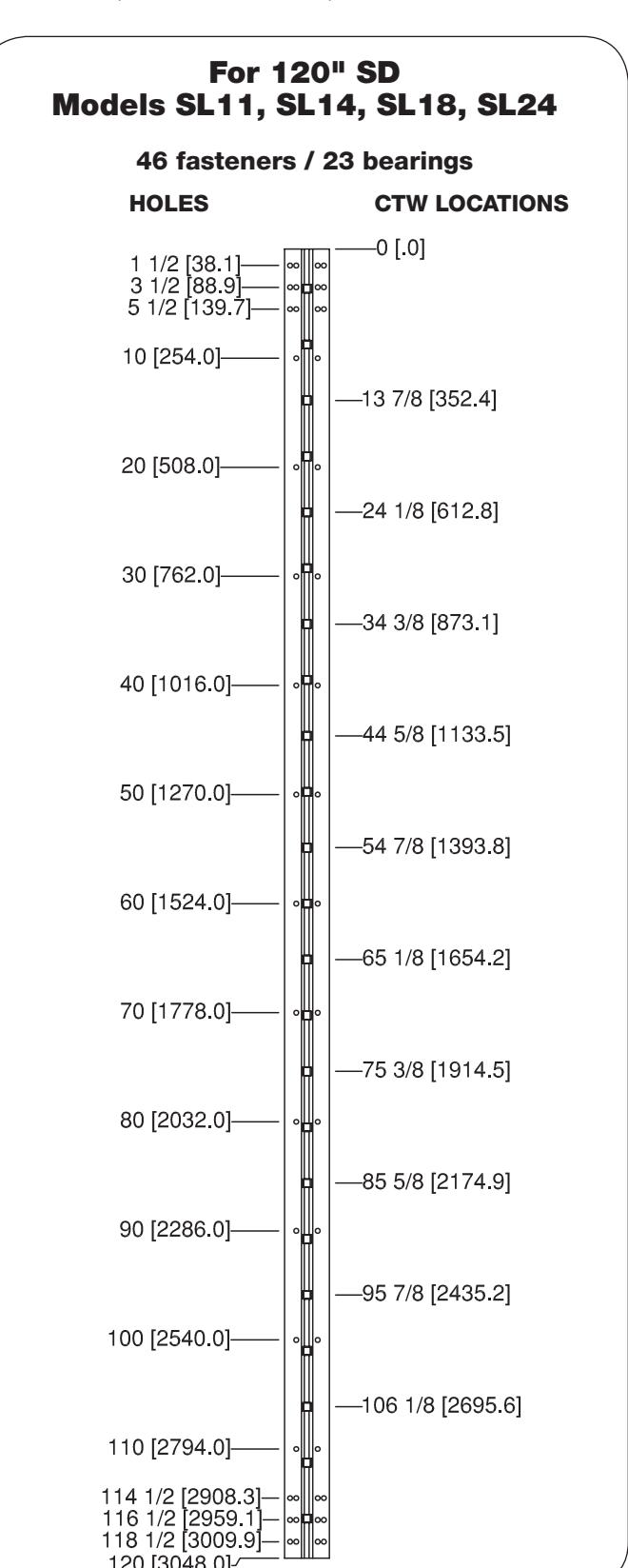

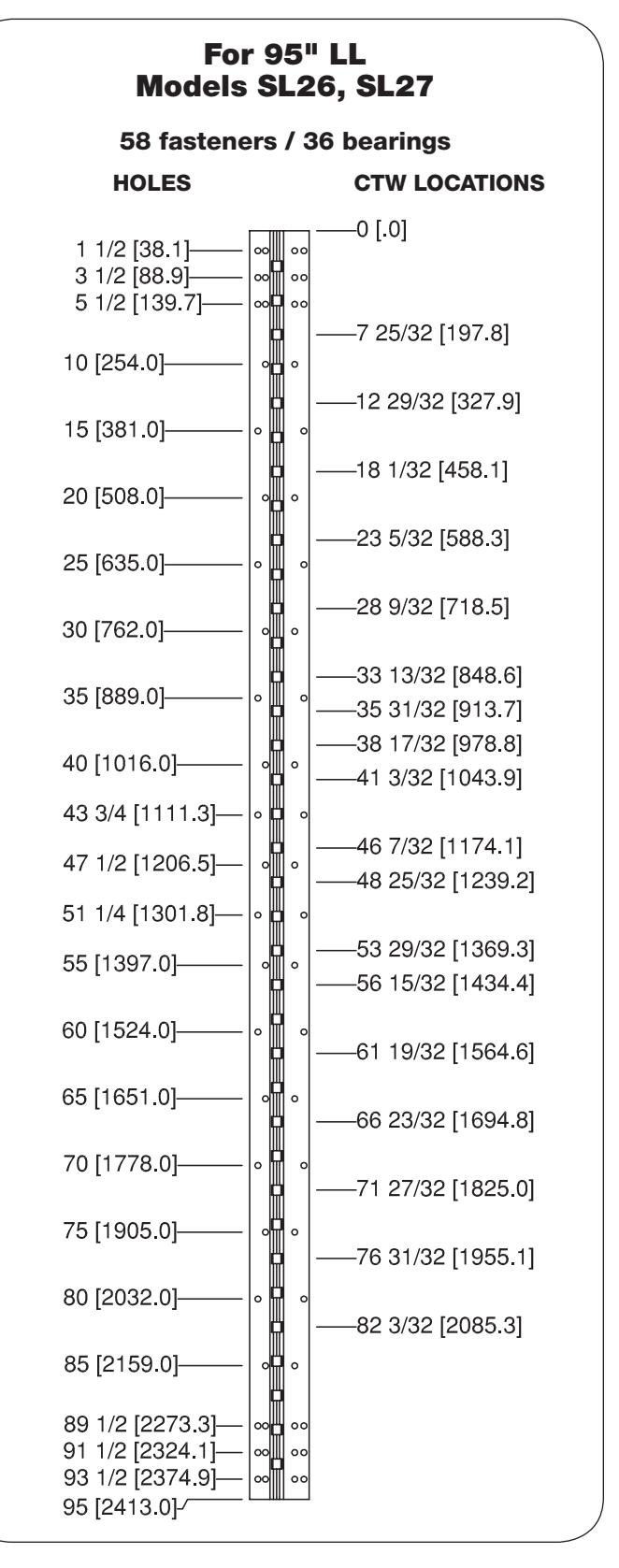

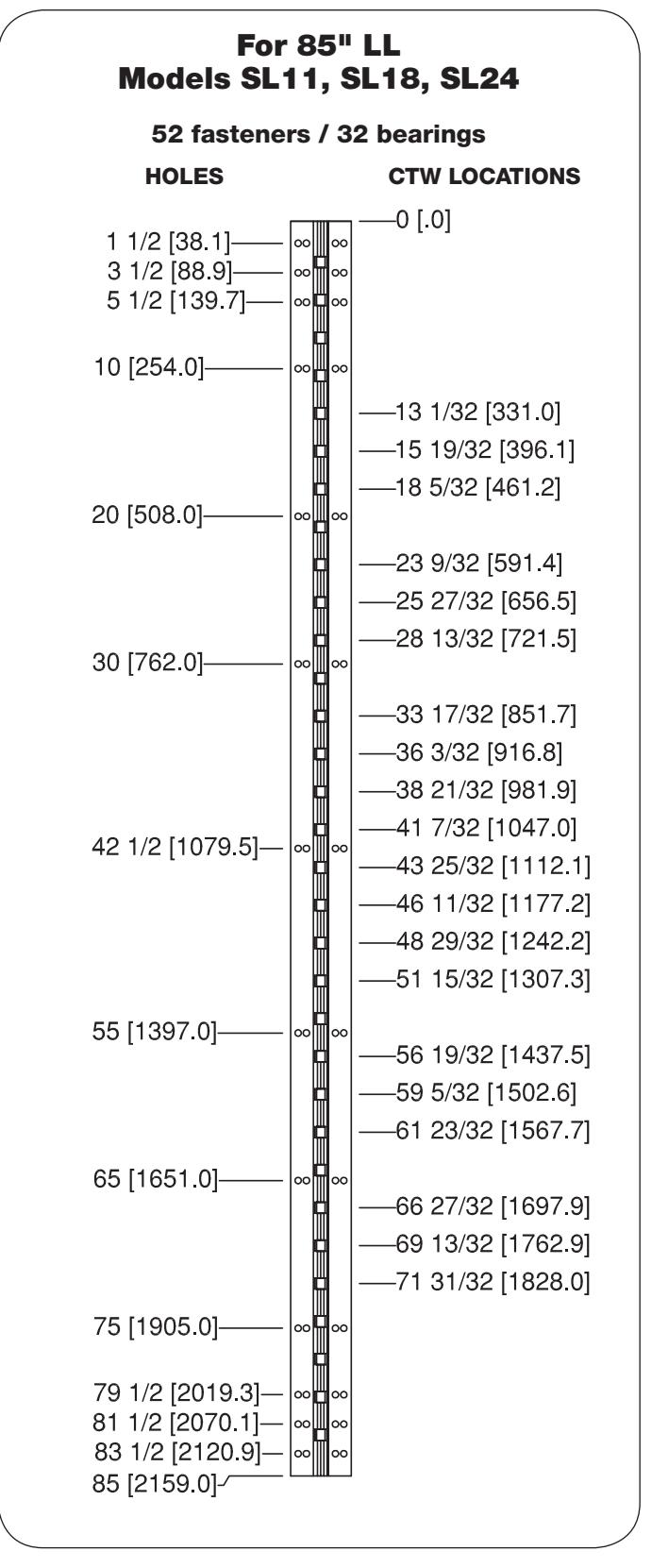

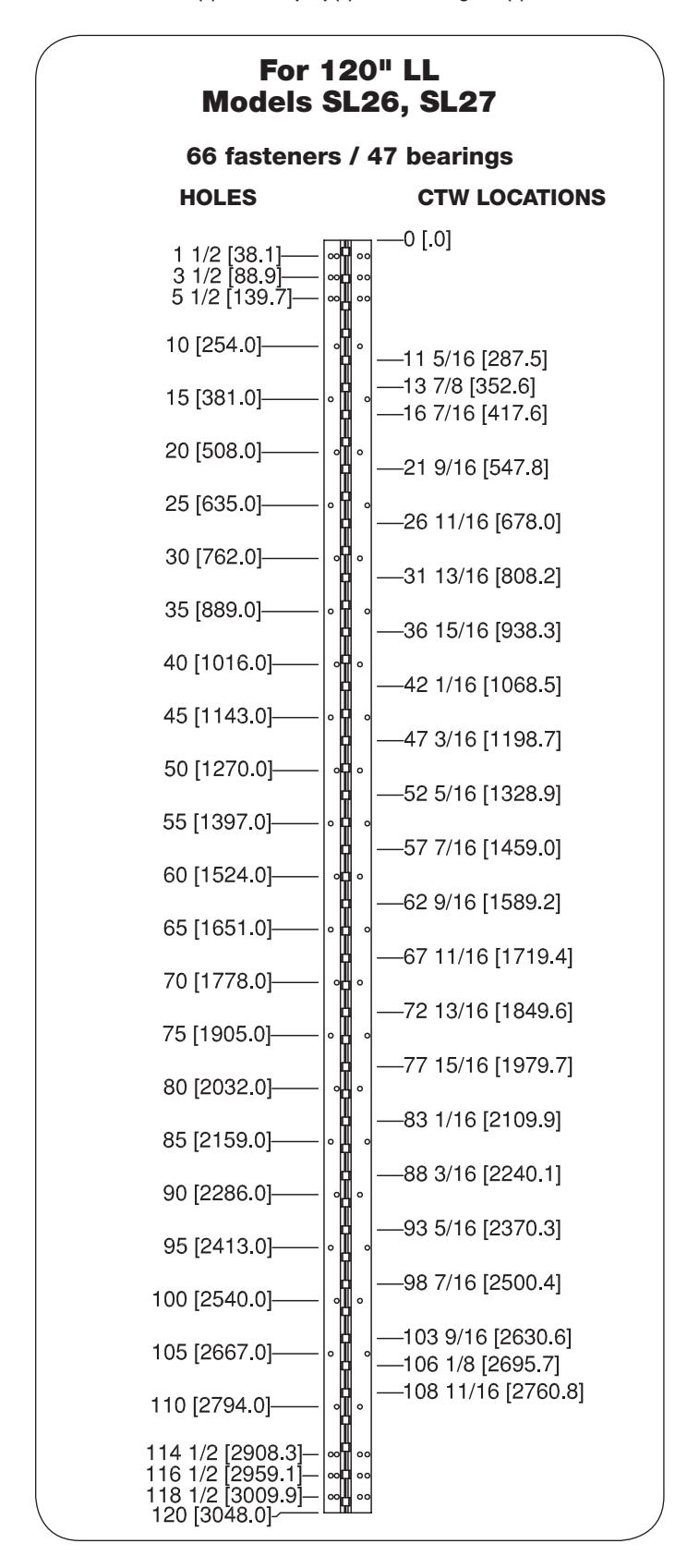

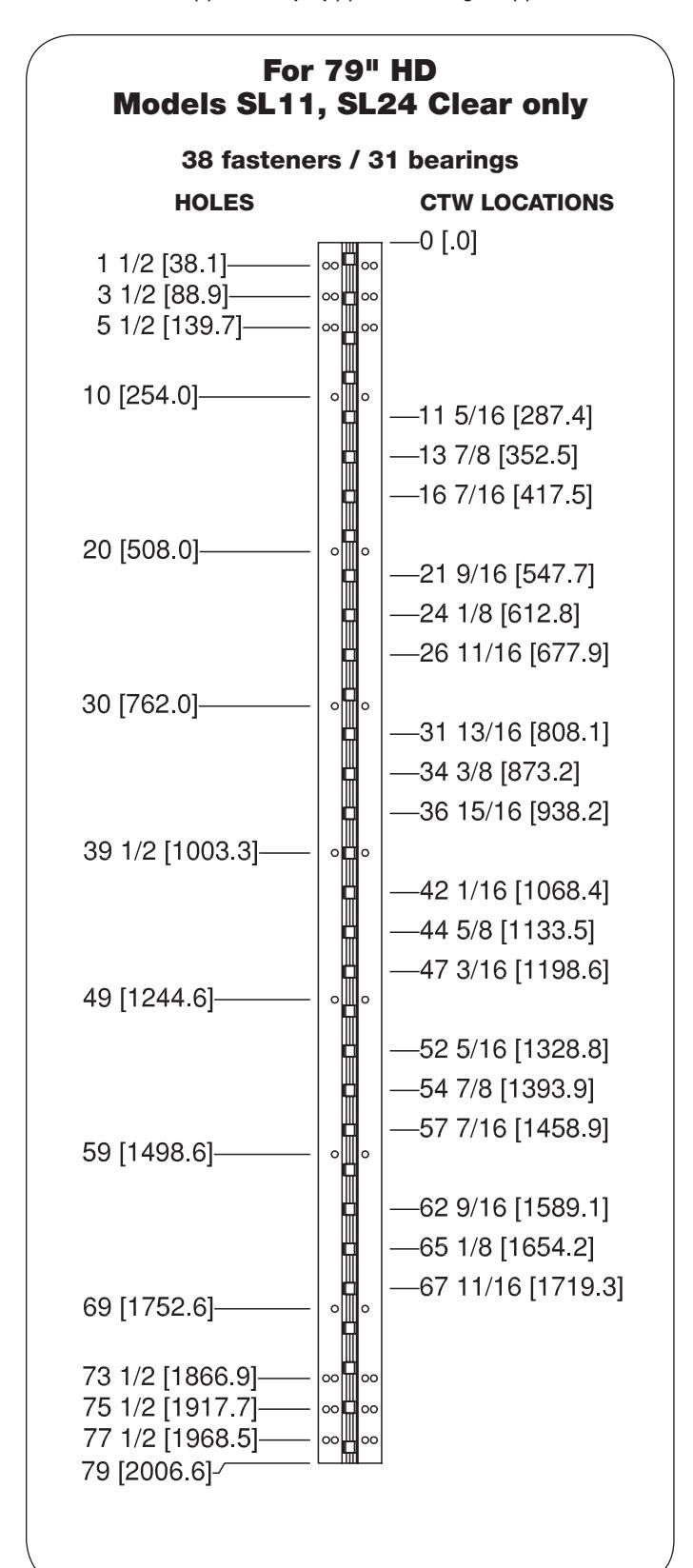

  • All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes and bearings.
  • Choose location(s) for CTW prep(s) from bearing slot(s) dimensioned. CTW4/5 = 1 location; CTW8/10 = 2 locations; CTW12 = 3 locations.

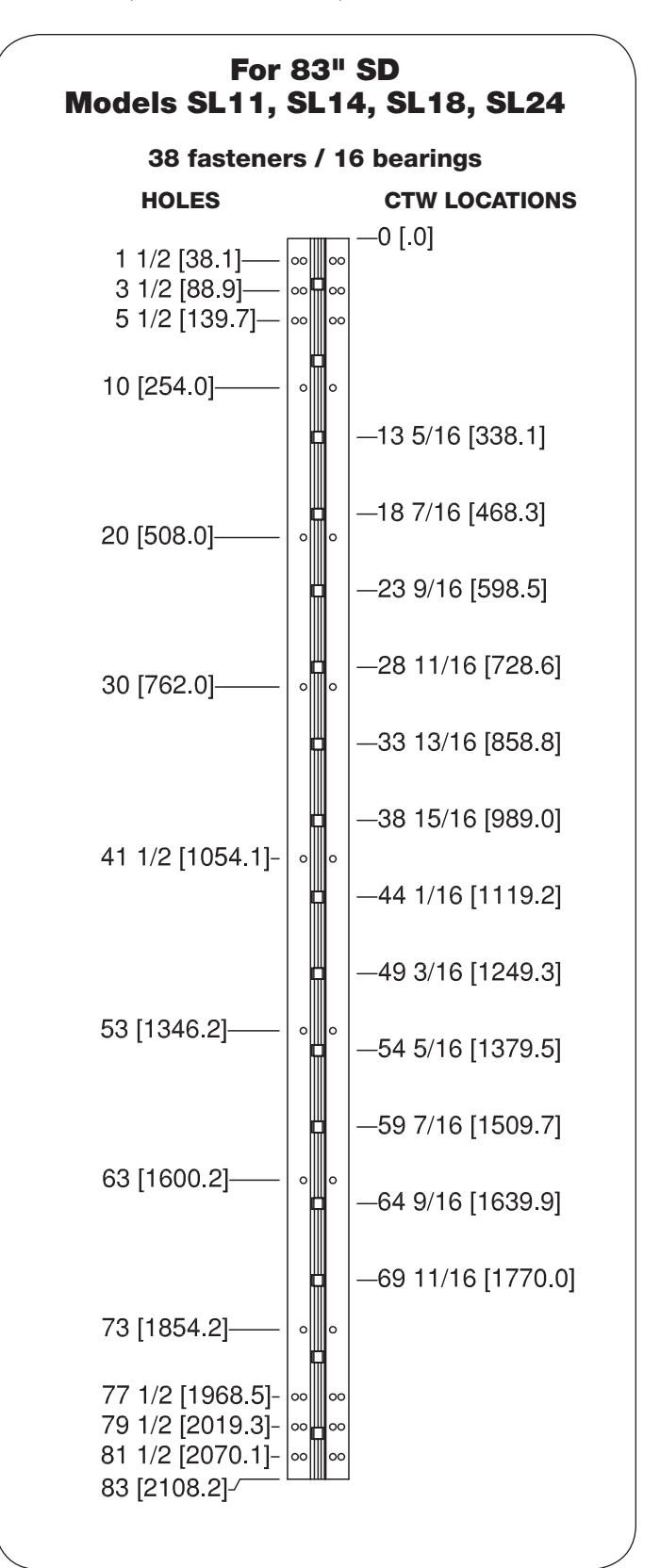

  • All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes and bearings.
  • Choose location(s) for CTW prep(s) from bearing slot(s) dimensioned. CTW4/5 = 1 location; CTW8/10 = 2 locations; CTW12 = 3 locations.

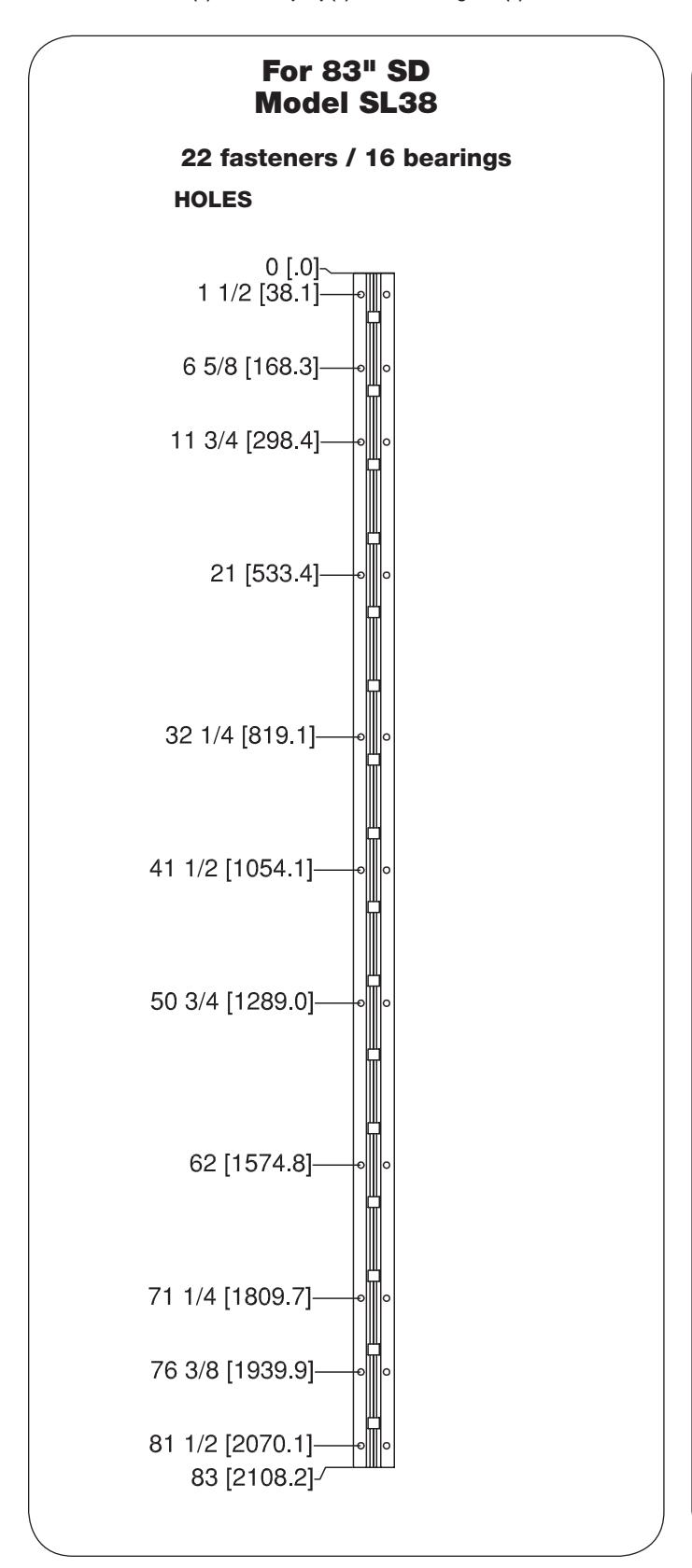

  • All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes and bearings.
  • Choose location(s) for CTW prep(s) from bearing slot(s) dimensioned. CTW4/5 = 1 location; CTW8/10 = 2 locations; CTW12 = 3 locations.

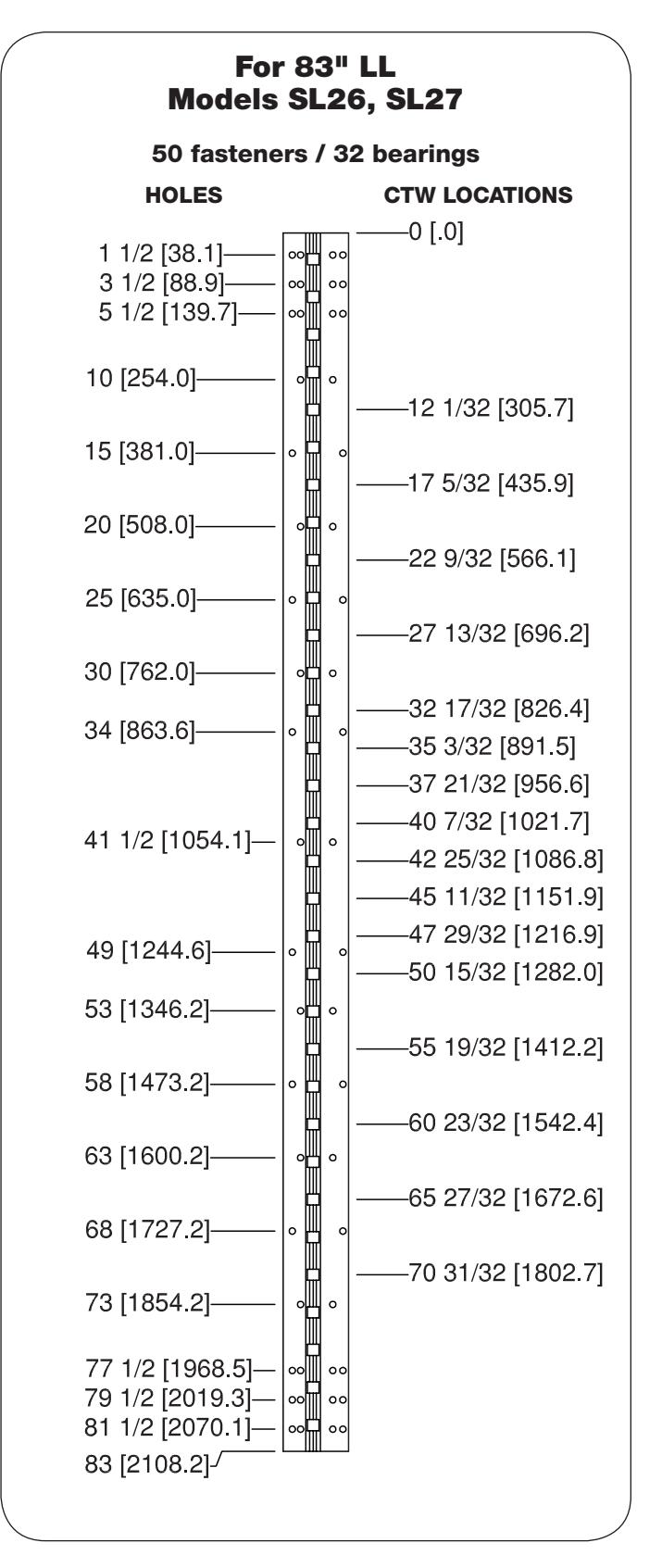

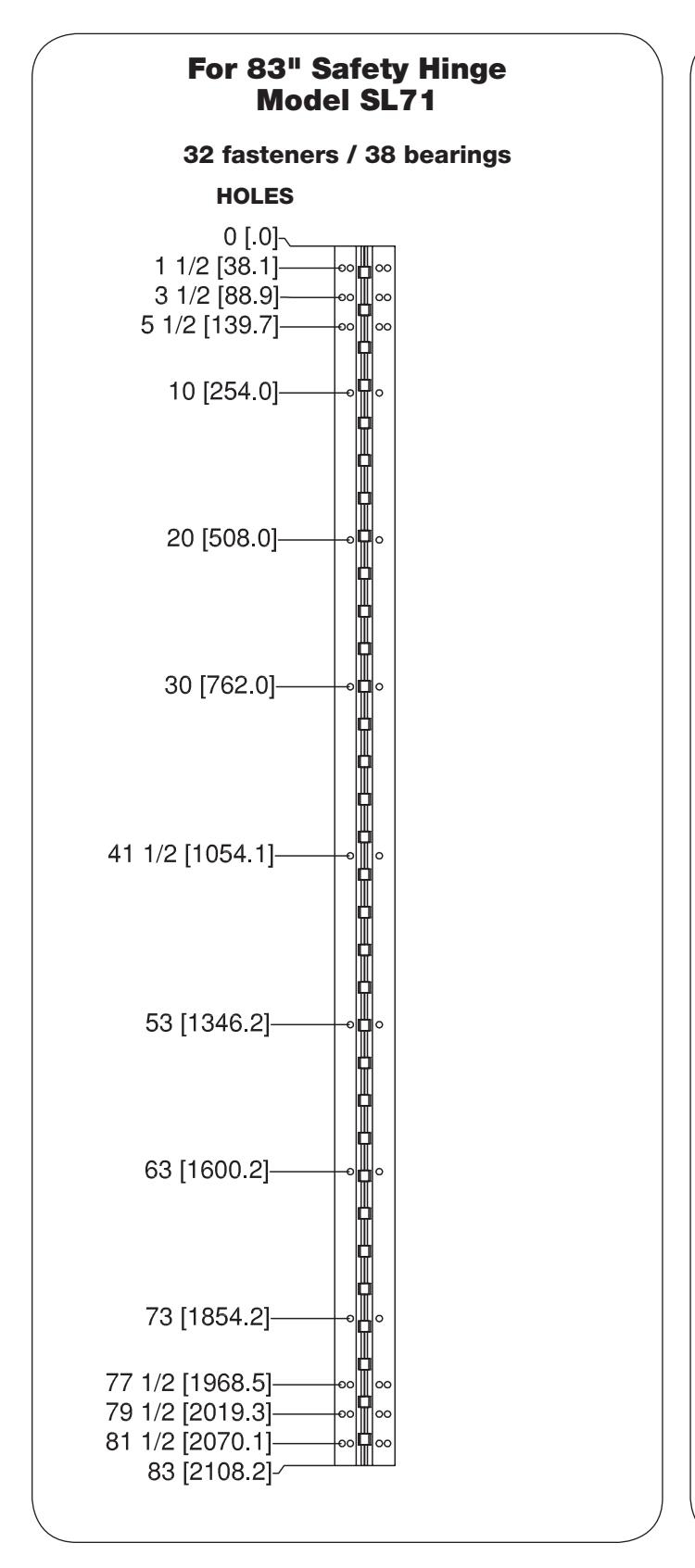

  • All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes and bearings.
  • Choose location(s) for CTW prep(s) from bearing slot(s) dimensioned. CTW4/5 = 1 location; CTW8/10 = 2 locations; CTW12 = 3 locations.

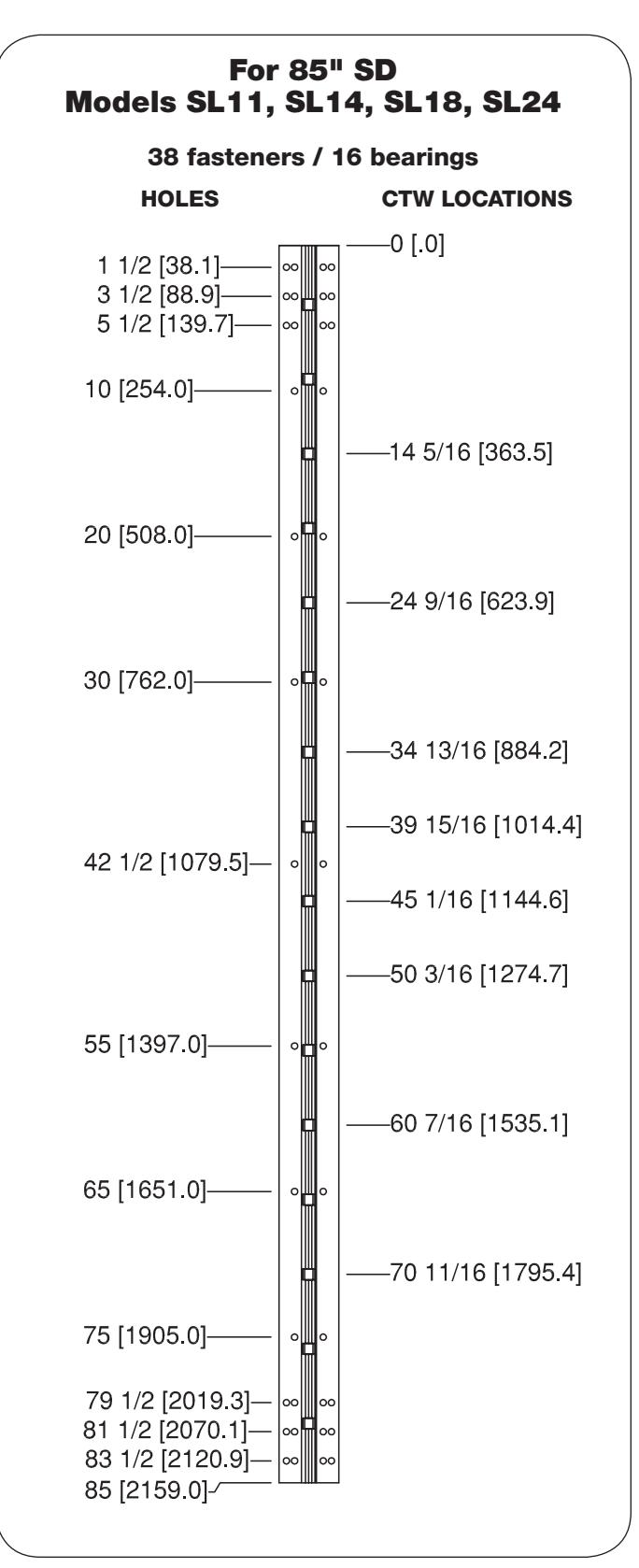

  • All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes and bearings.
  • Choose location(s) for CTW prep(s) from bearing slot(s) dimensioned. CTW4/5 = 1 location; CTW8/10 = 2 locations; CTW12 = 3 locations.

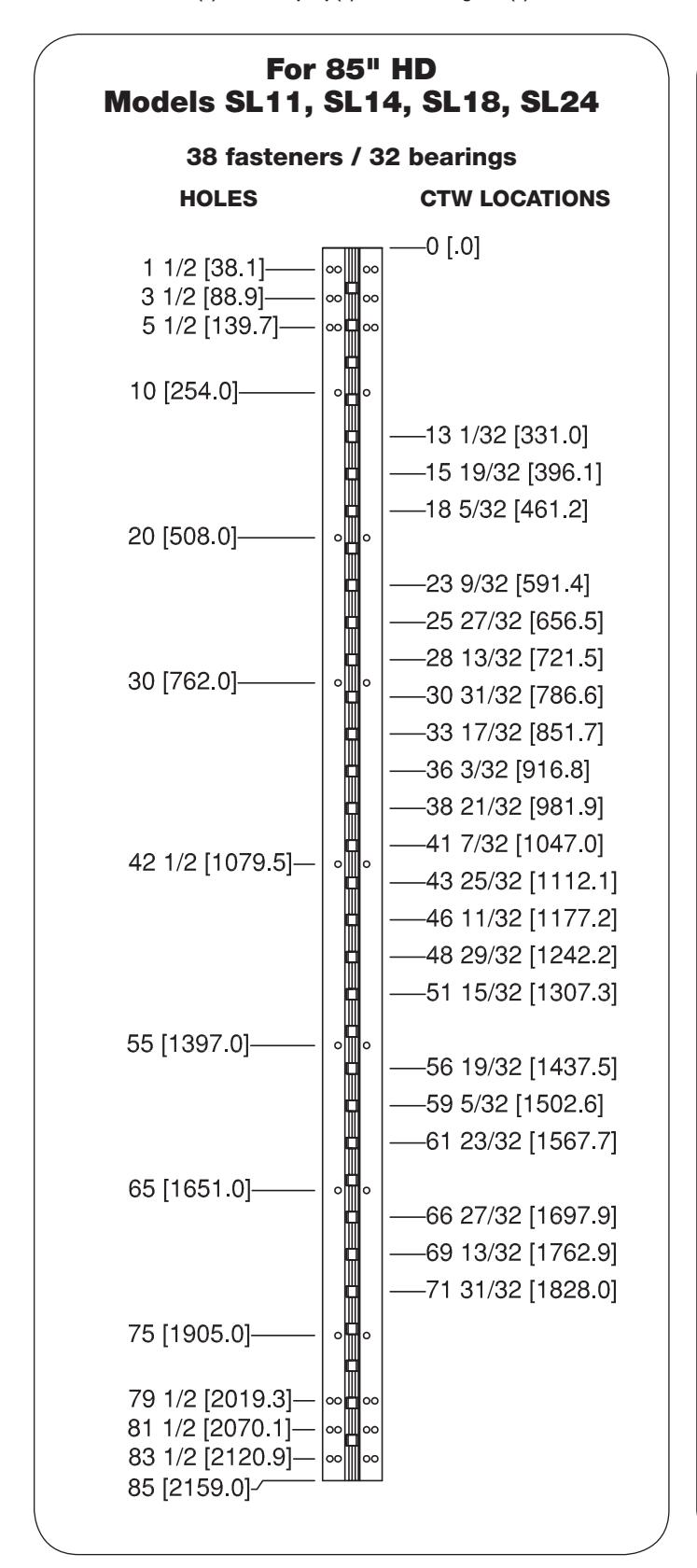

  • All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes and bearings.
  • Choose location(s) for CTW prep(s) from bearing slot(s) dimensioned. CTW4/5 = 1 location; CTW8/10 = 2 locations; CTW12 = 3 locations.

For 85" LL Models SL26, SL27 50 fasteners / 32 bearings HOLES CTW LOCATIONS

  • All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes and bearings.
  • Choose location(s) for CTW prep(s) from bearing slot(s) dimensioned. CTW4/5 = 1 location; CTW8/10 = 2 locations; CTW12 = 3 locations.

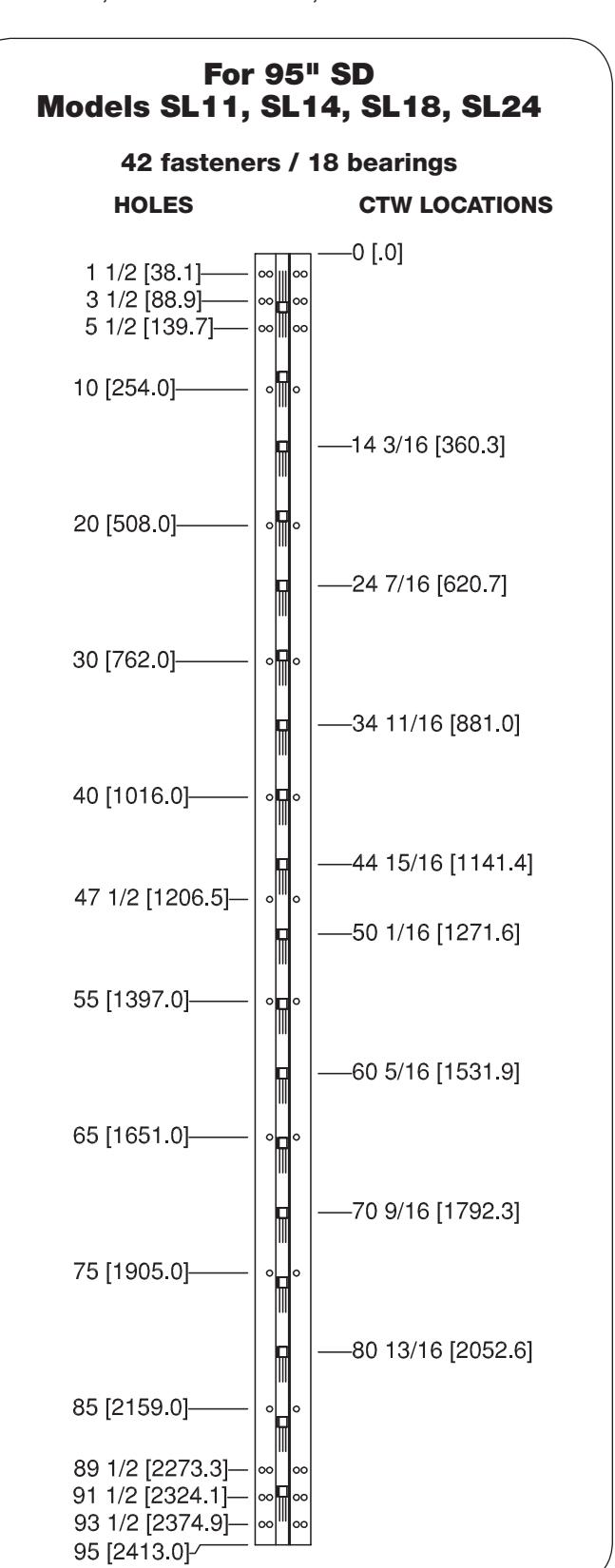

  • All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes and bearings.
  • Choose location(s) for CTW prep(s) from bearing slot(s) dimensioned. CTW4/5 = 1 location; CTW8/10 = 2 locations; CTW12 = 3 locations.

For 95" LL Models SL11, SL18, SL24, SL84 60 fasteners / 36 bearings HOLES CTW LOCATIONS

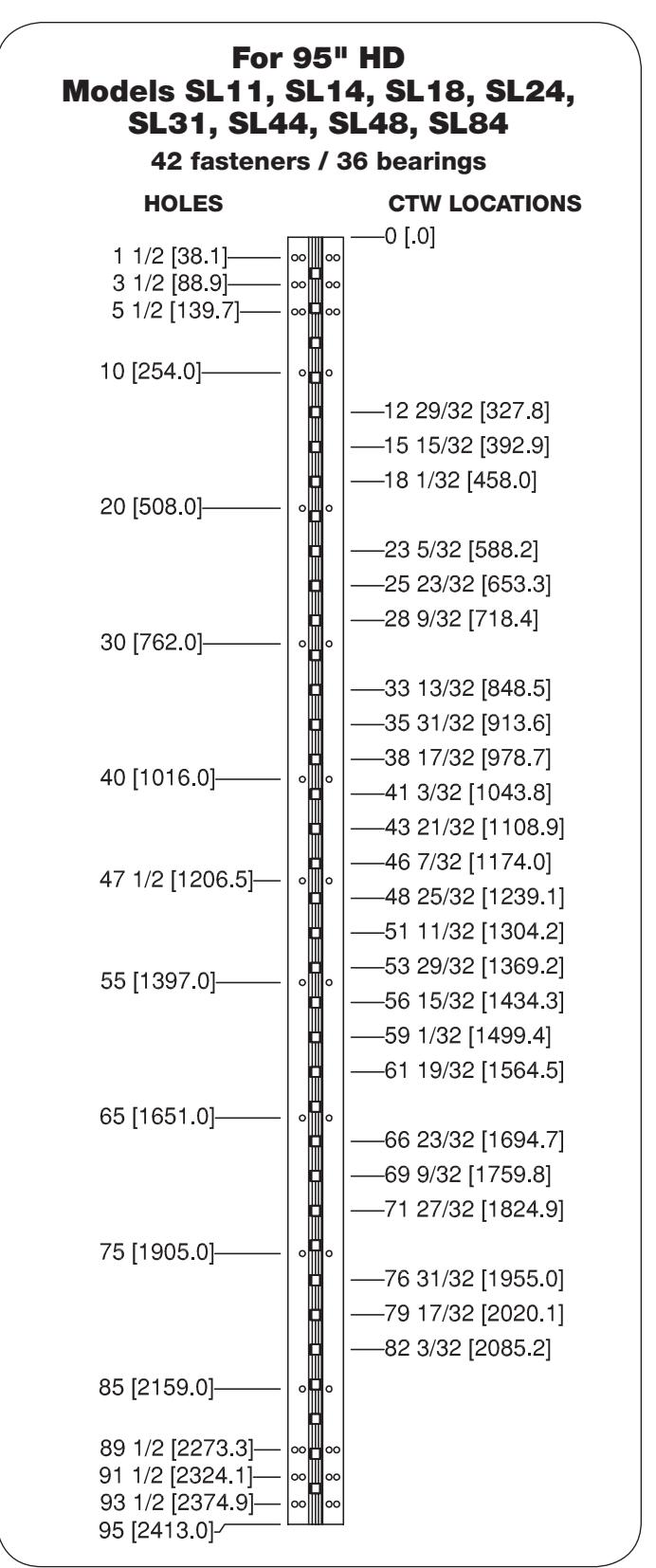

  • All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes and bearings.
  • Choose location(s) for CTW prep(s) from bearing slot(s) dimensioned. CTW4/5 = 1 location; CTW8/10 = 2 locations; CTW12 = 3 locations.

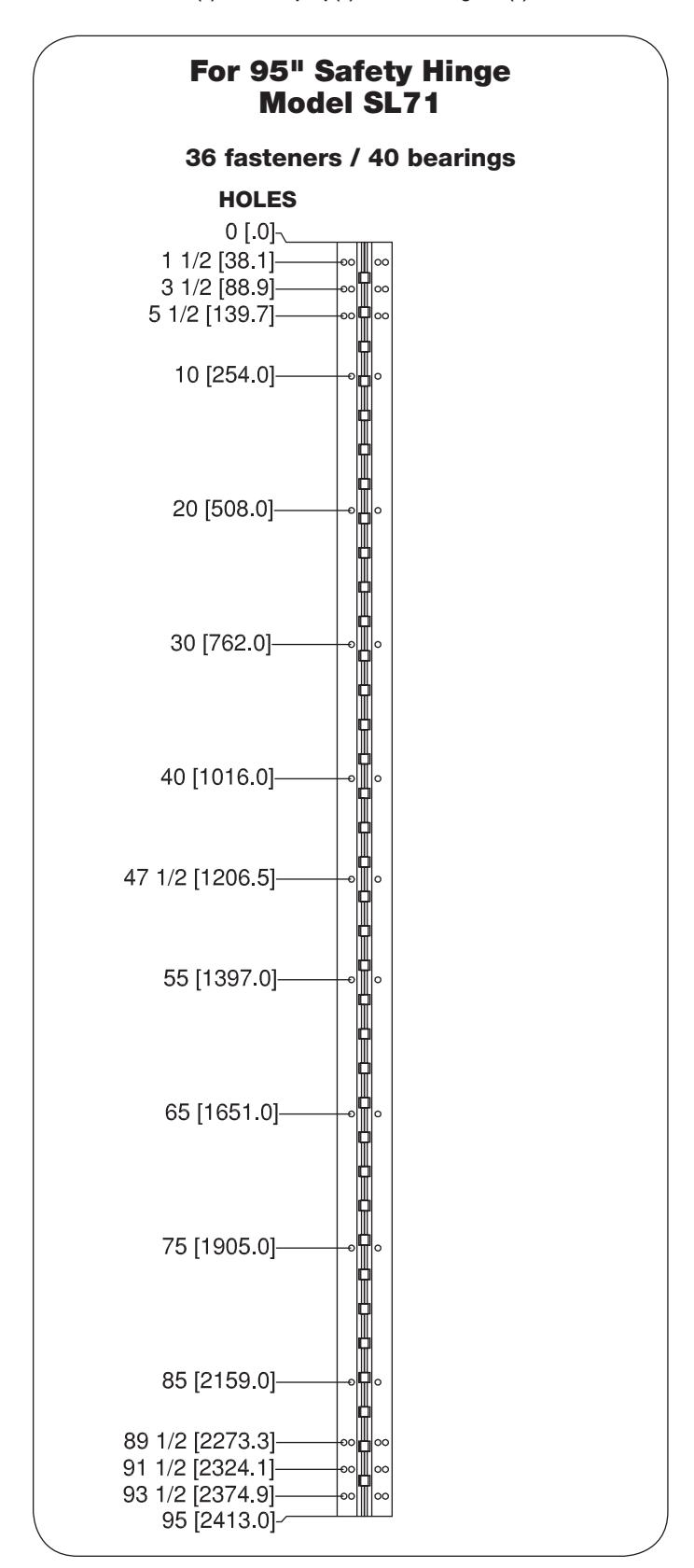

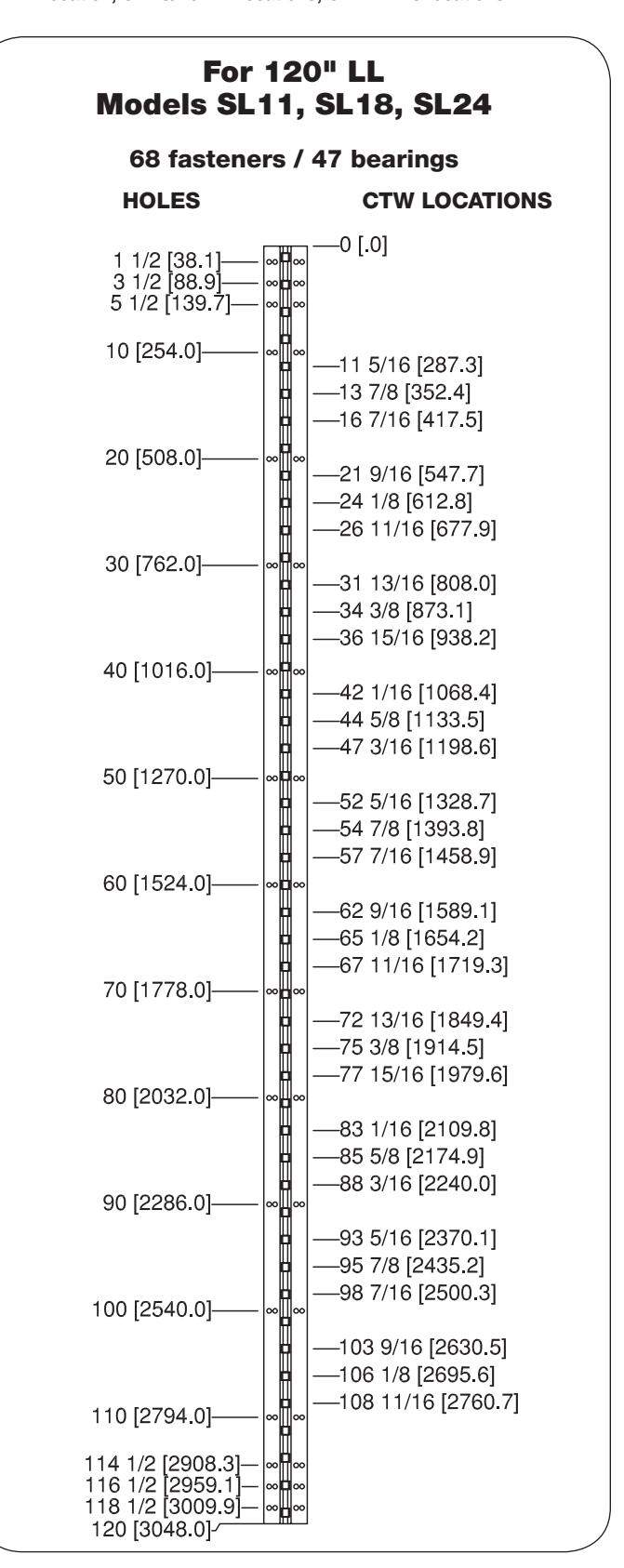

  • All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes and bearings.
  • Choose location(s) for CTW prep(s) from bearing slot(s) dimensioned. CTW4/5 = 1 location; CTW8/10 = 2 locations; CTW12 = 3 locations.

For 120" HD Models SL11, SL14, SL18, SL24 46 fasteners / 47 bearings HOLES CTW LOCATIONS

  • All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes and bearings.
  • Choose location(s) for CTW prep(s) from bearing slot(s) dimensioned. CTW4/5 = 1 location; CTW8/10 = 2 locations; CTW12 = 3 locations.
