Select Hinges ATW Location Templates

Open the original PDF document

View PDF

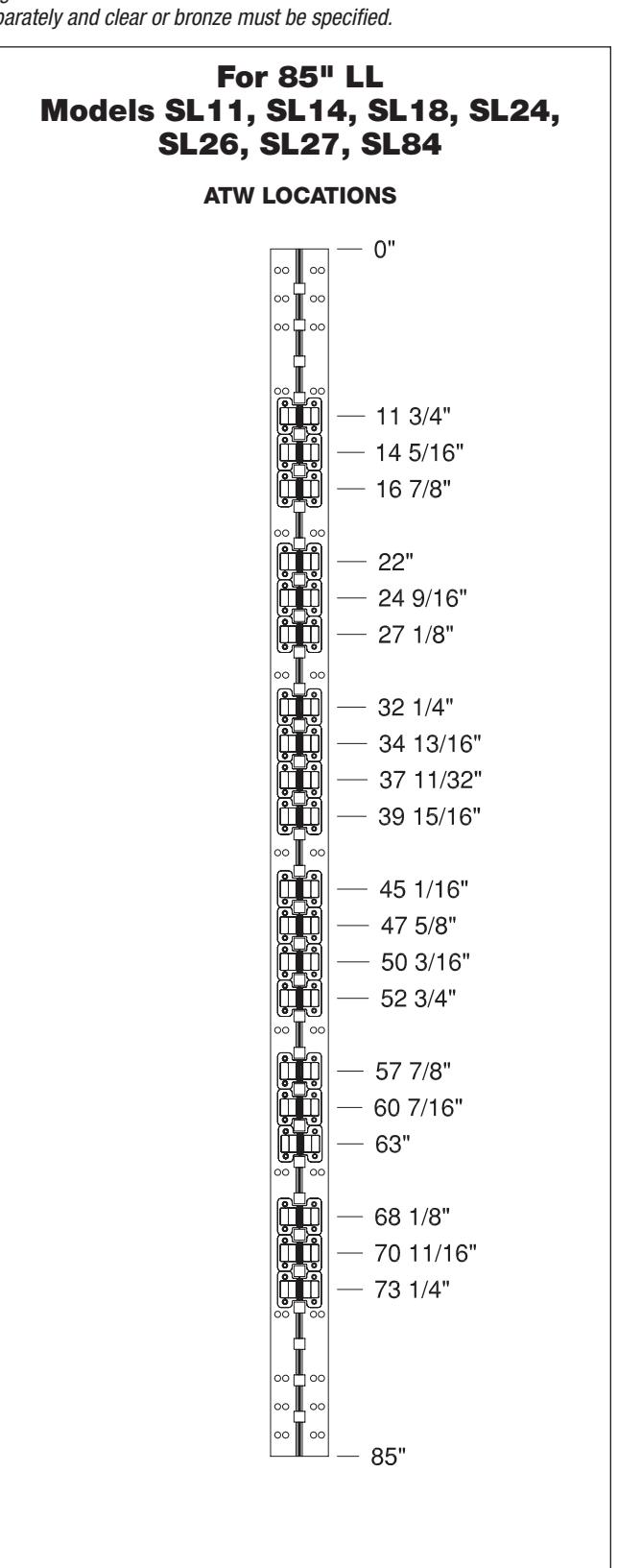

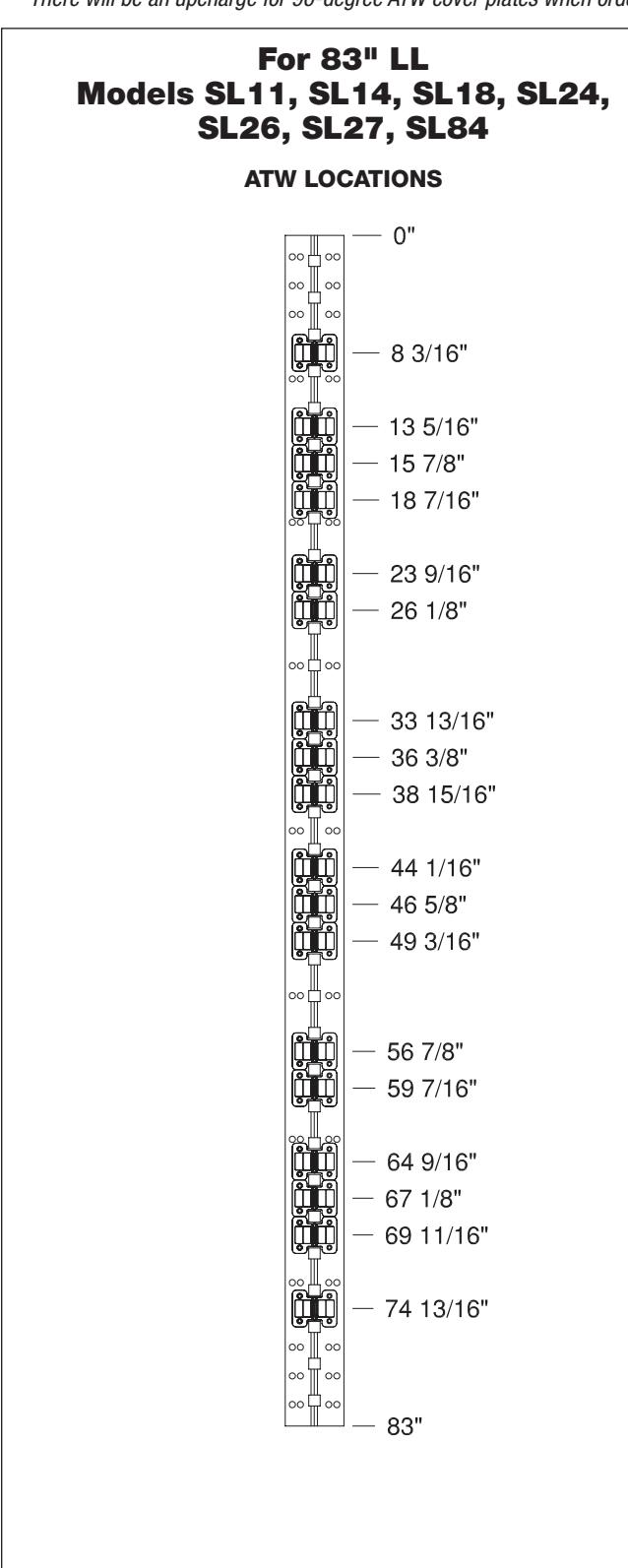

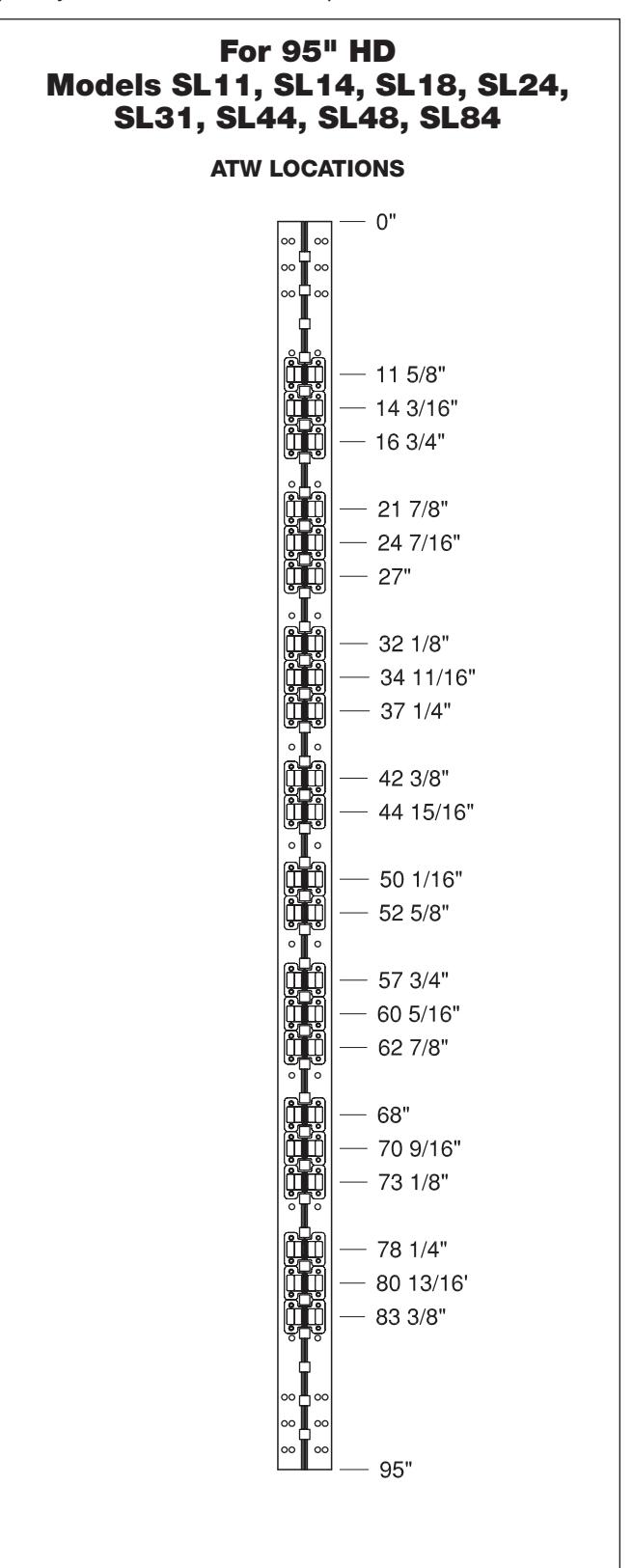

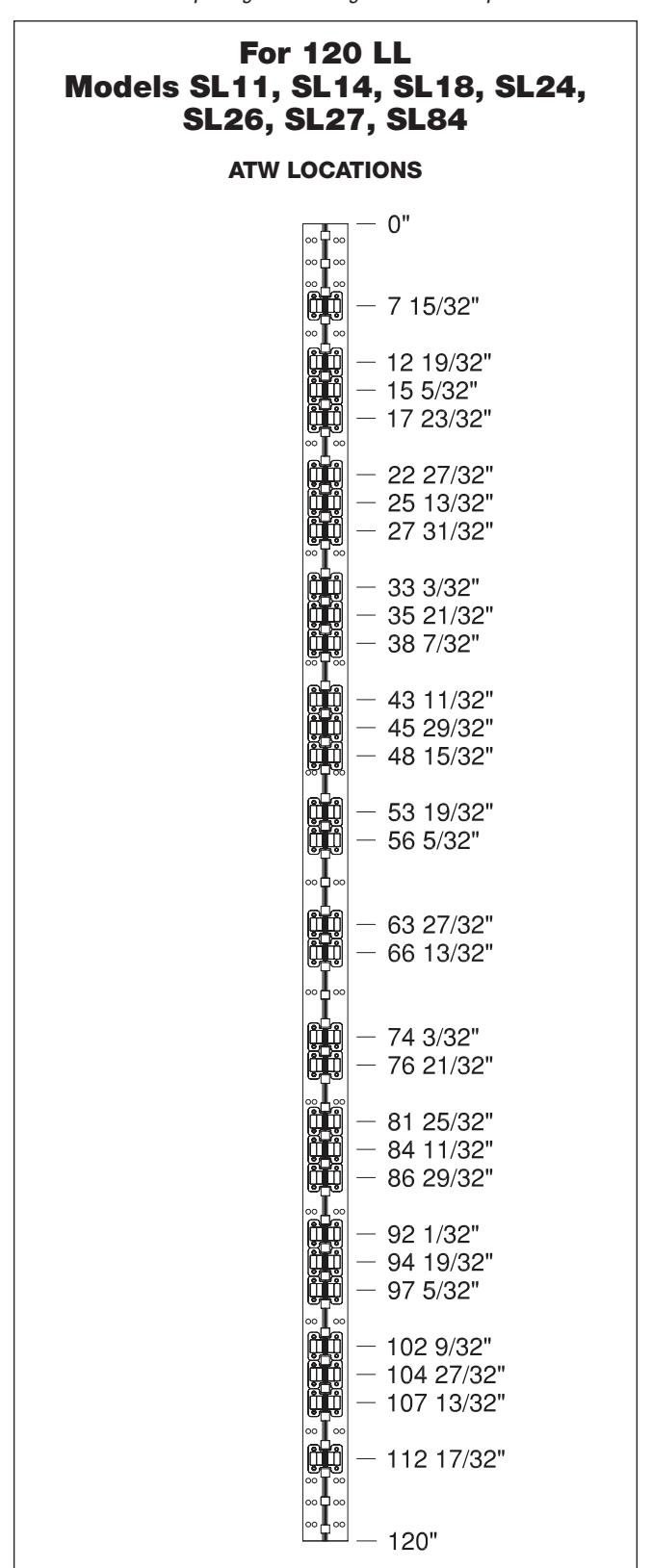

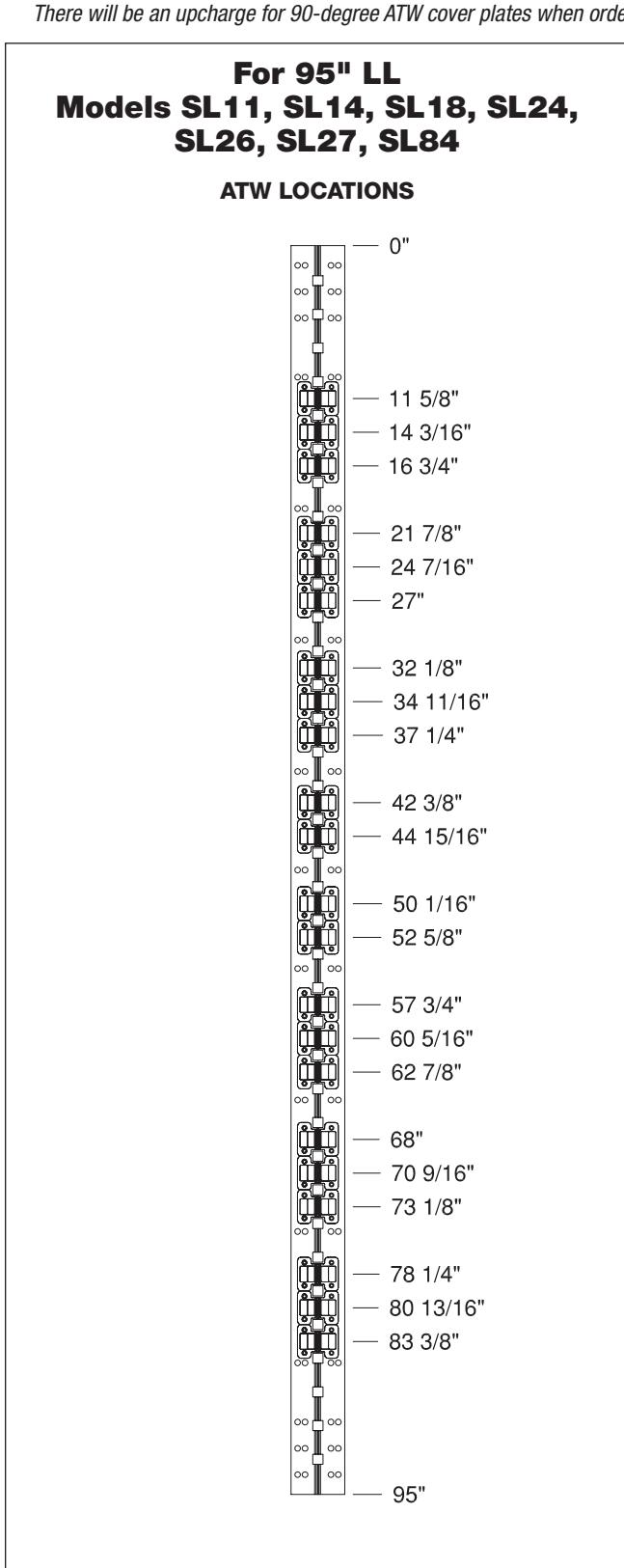

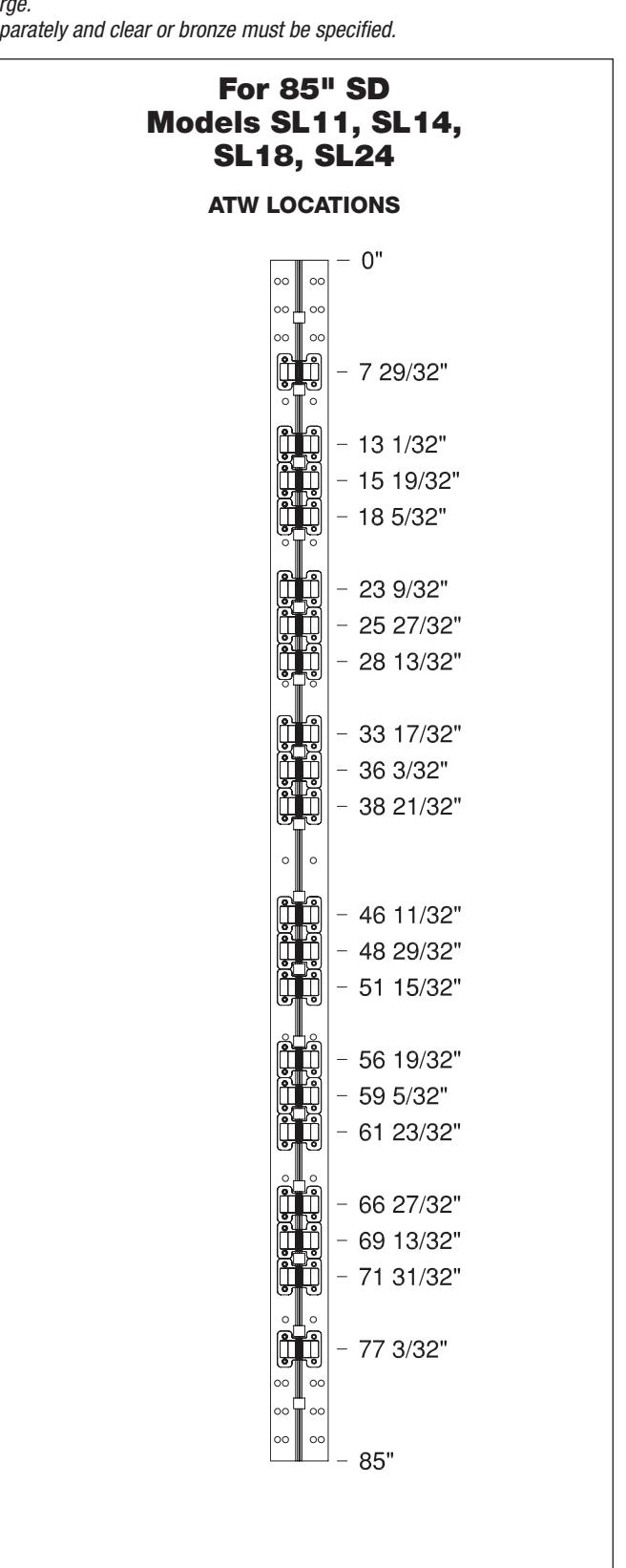

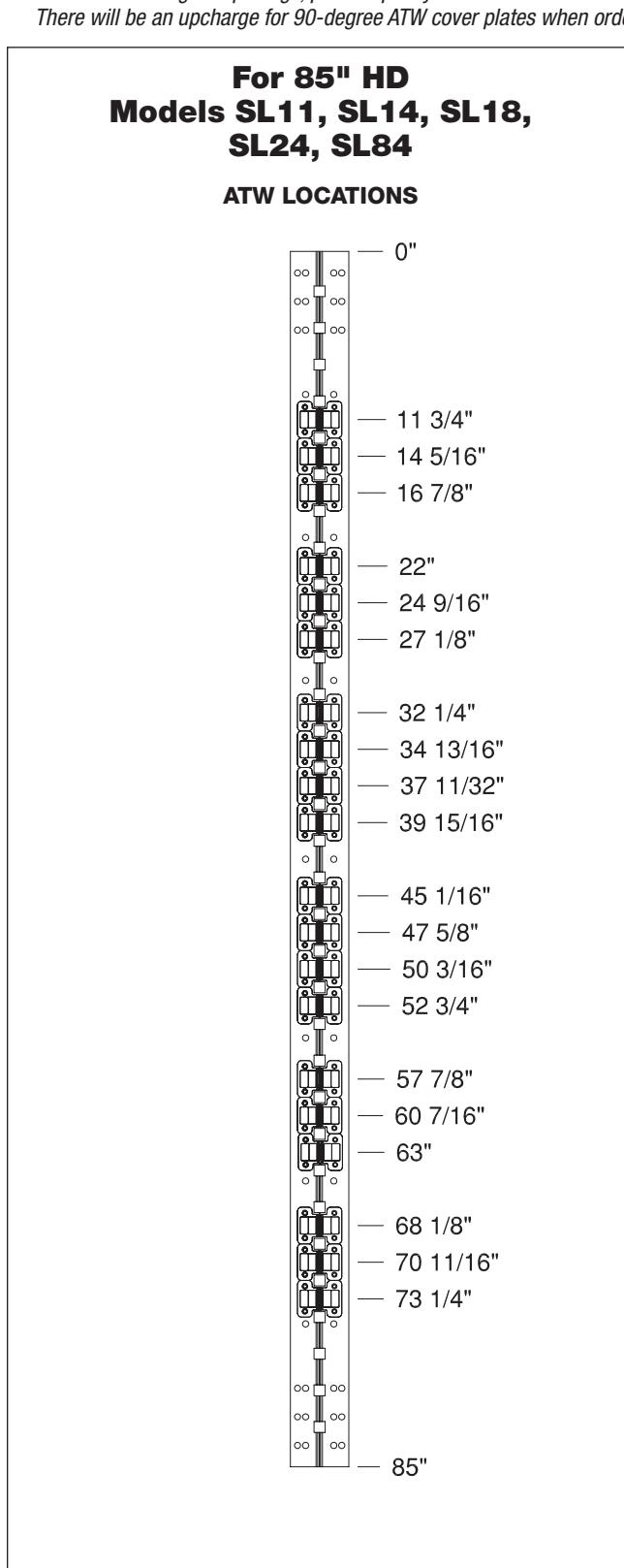

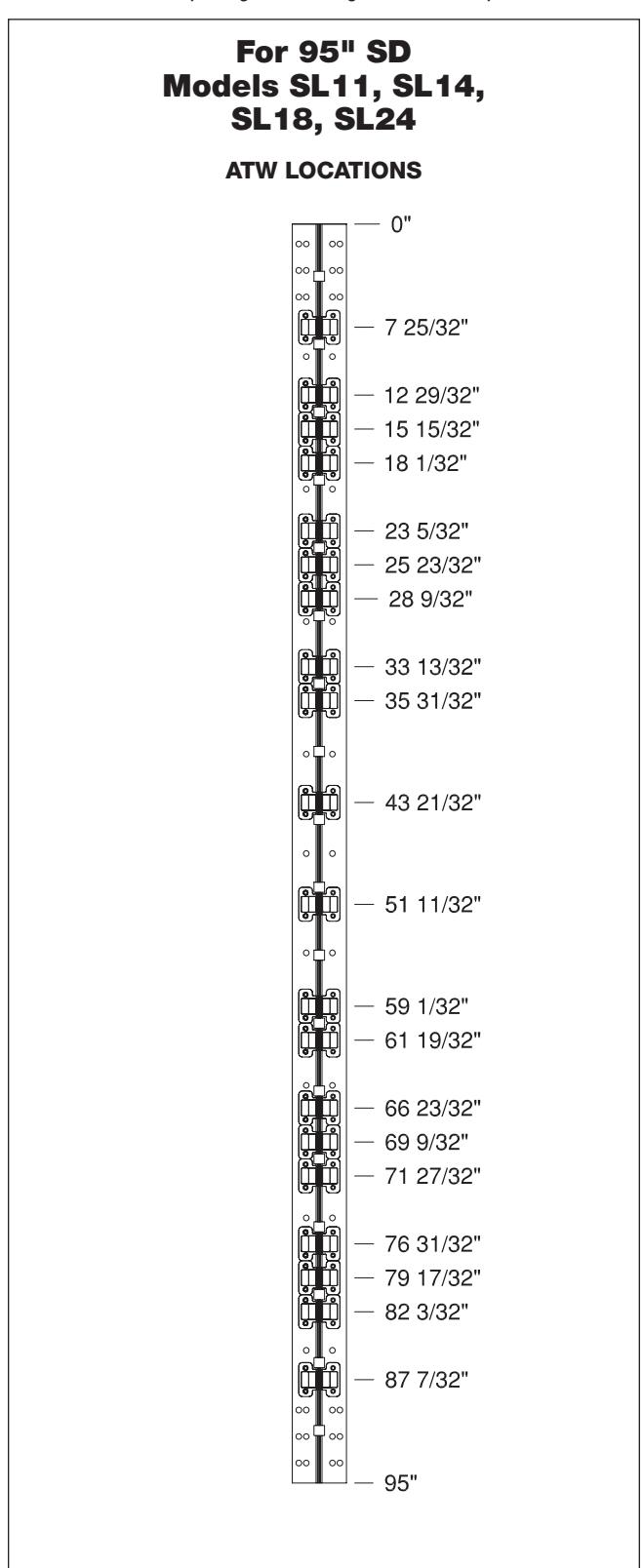

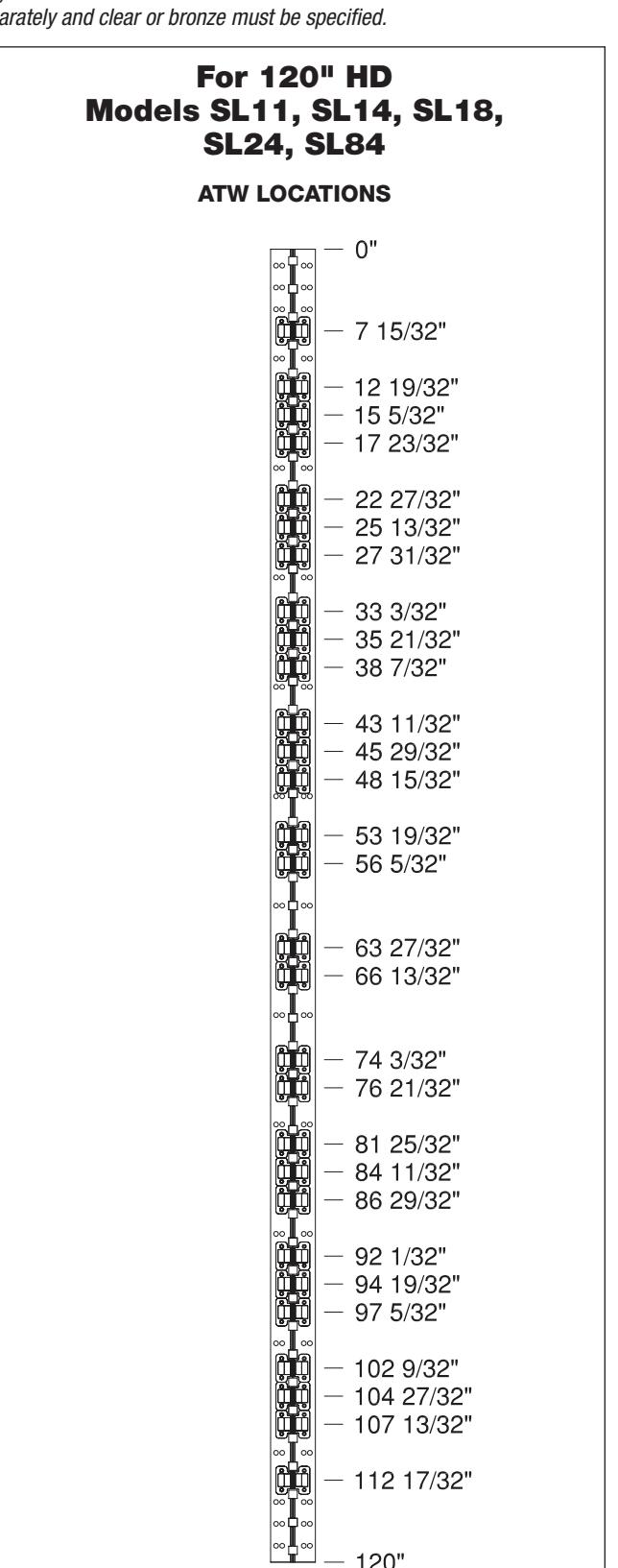

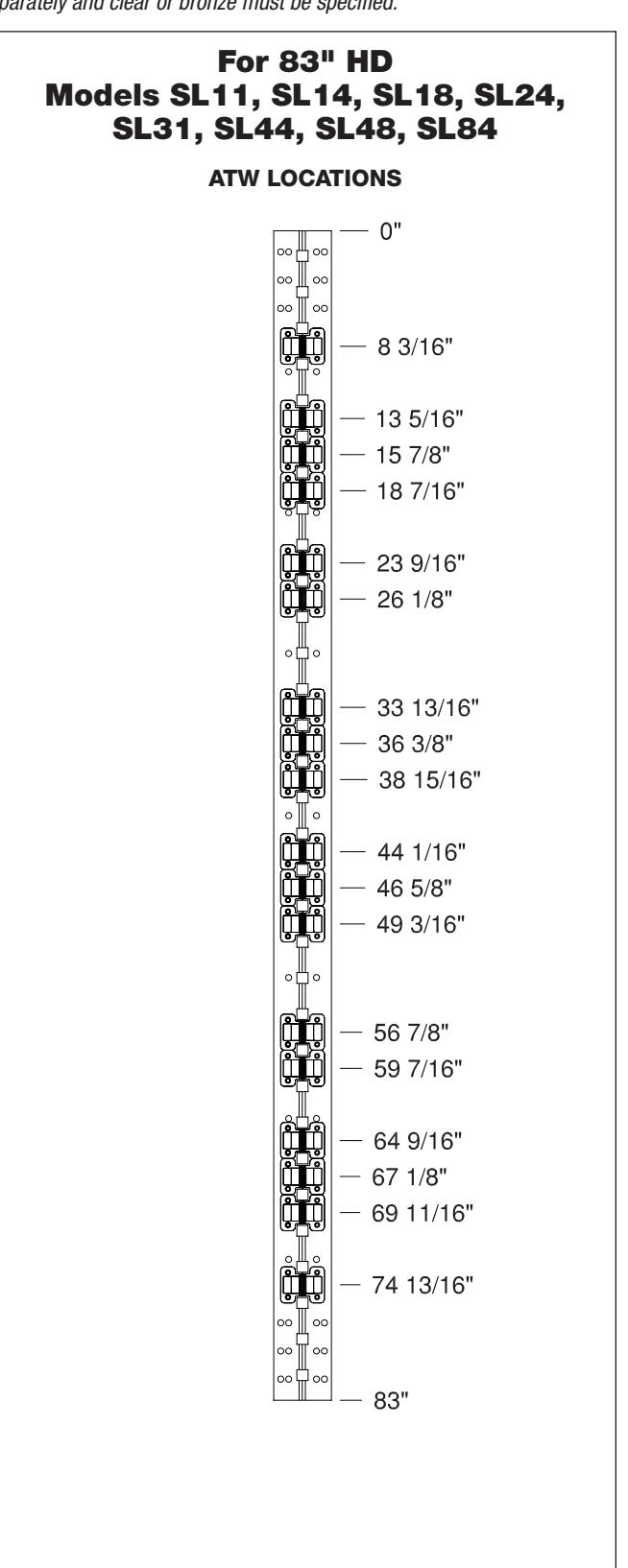

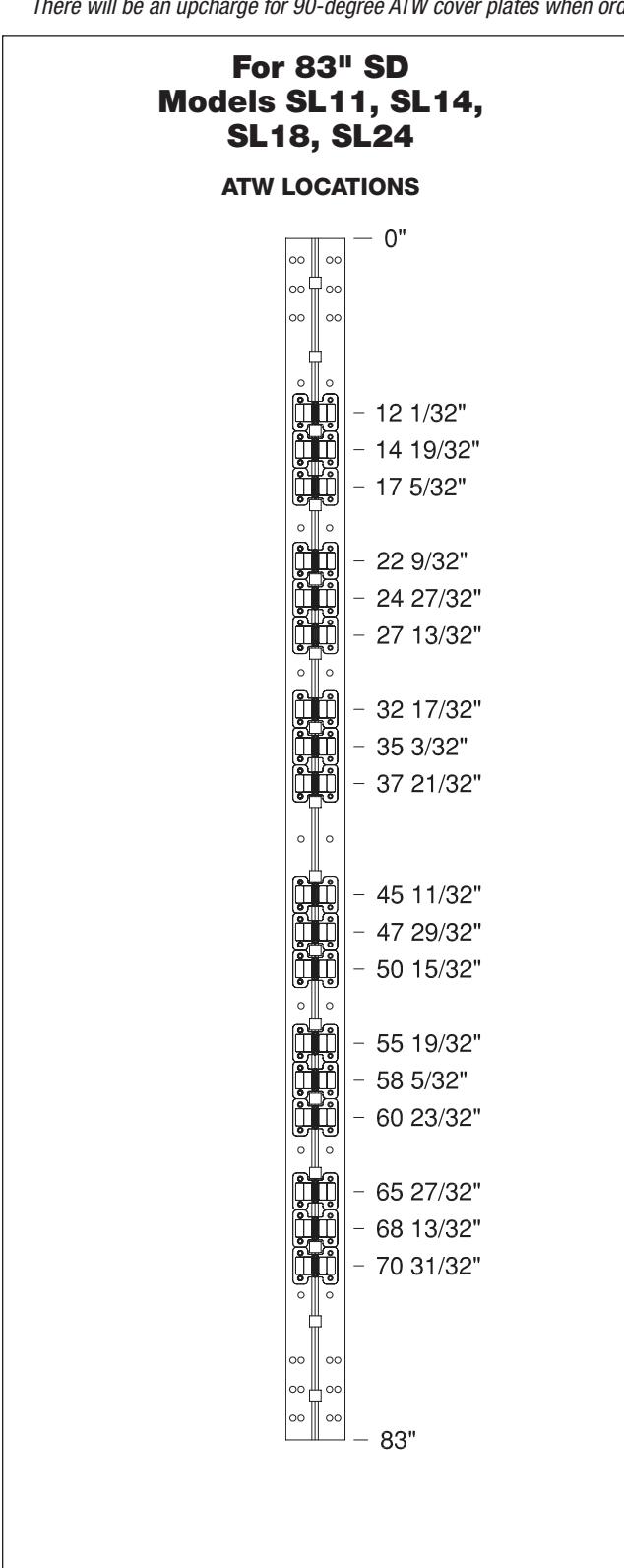

  • All dimensions are measured in inches from the top of the door to the centerline of the ATW panels.
  • Choose location for ATW prep. ATW4 = 1 location; ATW8 = 1 location; ATW12 = 1 location.
  • NOTE: For 90-degree openings, please specify at time of order for no upcharge. There will be an upcharge for 90-degree ATW cover plates when ordered separately and clear or bronze must be specified.

  • All dimensions are measured in inches from the top of the door to the centerline of the ATW panels.
  • Choose location for ATW prep. ATW4 = 1 location; ATW8 = 1 location; ATW12 = 1 location.
  • NOTE: For 90-degree openings, please specify at time of order for no upcharge. There will be an upcharge for 90-degree ATW cover plates when ordered separately and clear or bronze must be specified.

  • All dimensions are measured in inches from the top of the door to the centerline of the ATW panels.
  • Choose location for ATW prep. ATW4 = 1 location; ATW8 = 1 location; ATW12 = 1 location.
  • NOTE: For 90-degree openings, please specify at time of order for no upcharge. There will be an upcharge for 90-degree ATW cover plates when ordered separately and clear or bronze must be specified.

  • All dimensions are measured in inches from the top of the door to the centerline of the ATW panels.
  • Choose location for ATW prep. ATW4 = 1 location; ATW8 = 1 location; ATW12 = 1 location.
  • NOTE: For 90-degree openings, please specify at time of order for no upcharge. There will be an upcharge for 90-degree ATW cover plates when ordered separately and clear or bronze must be specified.

  • All dimensions are measured in inches from the top of the door to the centerline of the ATW panels.
  • Choose location for ATW prep. ATW4 = 1 location; ATW8 = 1 location; ATW12 = 1 location.
  • NOTE: For 90-degree openings, please specify at time of order for no upcharge. There will be an upcharge for 90-degree ATW cover plates when ordered separately and clear or bronze must be specified.

  • All dimensions are measured in inches from the top of the door to the centerline of the ATW panels.
  • Choose location for ATW prep. ATW4 = 1 location; ATW8 = 1 location; ATW12 = 1 location.
  • NOTE: For 90-degree openings, please specify at time of order for no upcharge. There will be an upcharge for 90-degree ATW cover plates when ordered separately and clear or bronze must be specified.
