Security STUD For Full Concealed Stainless Steel Hinges 14 & 12 Gauge
Open the original PDF document
View PDFSECURITY "STUD" FOR FULL CONCEALED STAINLESS STEEL HINGES 14 & 12 GA.
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

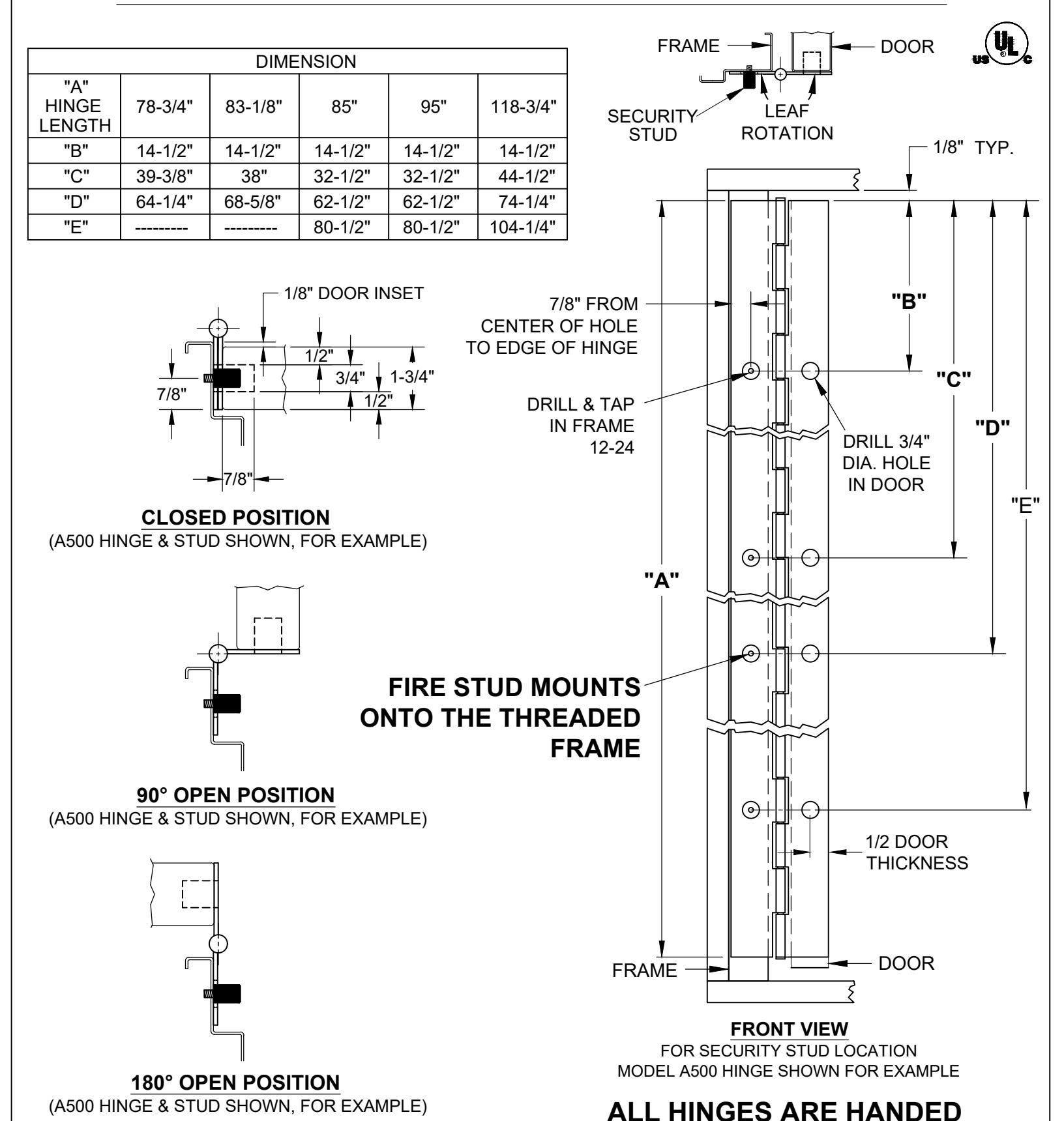

FC SECURITY STUD LOCATION SS-05.DWG
FULL CONCEALED SECURITY STUD LOCATION INSTRUCTIONS
© 2020 ABH Mfg., Inc. printed in USA
ISSUED 10-21-20
