Security indicators

Overview

Designed for high use and abuse institution environments, such as schools and hospitals, these Von Duprin® products are recommended for the following applications:

• § Visual verification Reduce the time it takes to tour your facility and ensure each door is secure by installing the Von Duprin security indicator to provide at-a-glance visual verification.
• § Lockdown Lock down high occupancy areas such as auditoriums, cafeterias and gymnasiums, from inside the room with the Von Duprin security indicator that provides positive visual confirmation.

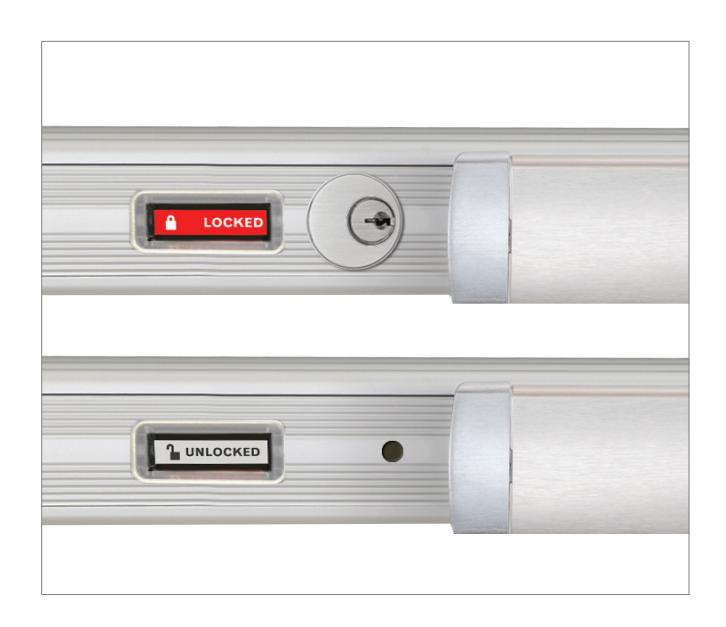

The CDSI/HDSI dogging indicator provides an at-aglance verification of the status of the door from inside of the room. Visible "LOCKED" and "UNLOCKED" indicators show whether the device is undogged or dogged. This feature can be used with hex key (HDSI) or cylinder dogging (CDSI) options on various device types–rim, mortise and vertical systems.

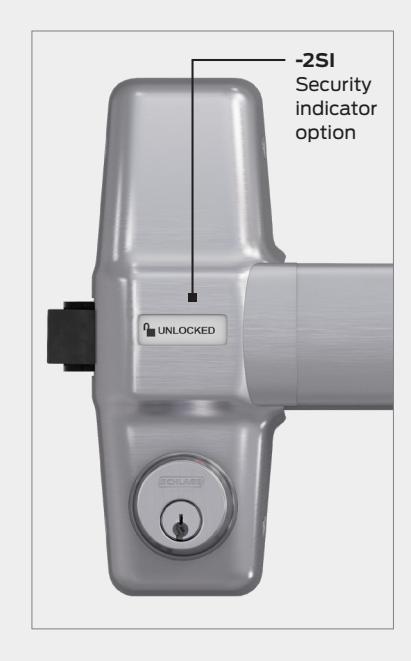

The -2SI Security Indicator provides an at-a-glance verification of the LOCKED/UNLOCKED status of the door from inside of the room. This option can be ordered as a new product or as a retrofit conversion kit to an existing 98/99 device.

Features and benefits

• § Lockdown solution that meets fire and life safety codes for free egress
• § Modular conversion kits allow you to quickly and easily upgrade your existing devices
• § Visual indication of whether the exit device is locked or unlocked from inside a room

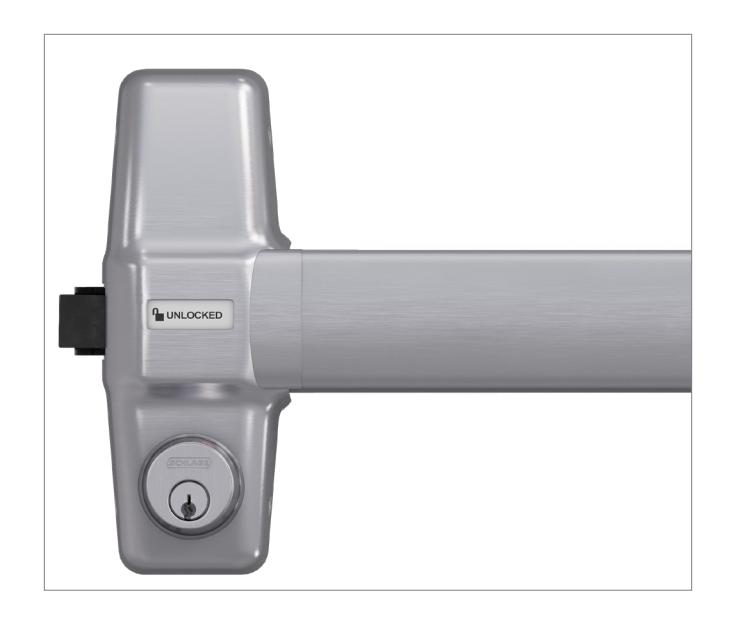

2SI security indicator with double cylinder

• § Pad-printed directional indicator provides a clear direction of rotation to secure opening
• § Available for 98/99 Series devices

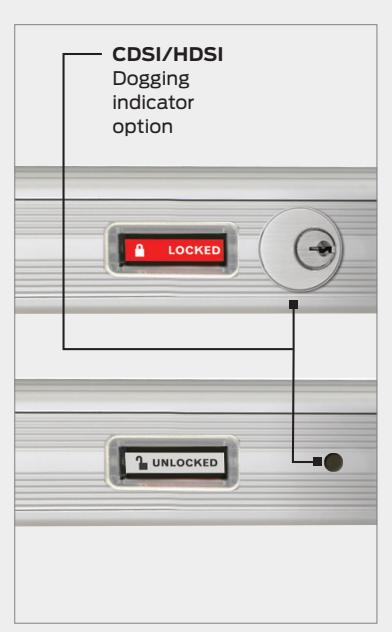

CDSI/HDSI dogging indicator

• § Hex or cylinder dogging options
• § Visual indication of whether the exit device is dogged or undogged
• § Available for 98/99 and 33A/35A Series panic devices

Product availability

-2SI Security indicator		New devices
Options	Device	How to order
Classroom security double cylinder with	98/99	Device suffix = -2SI Trim = 996-2
security indicator

Above applications available with L and L-BE functions. Must be paired with 996-2 trim. Specify device type, handing and finish. Cylinders are sold separately. Schlage rim cylinders 20-021 (keyed), XB11-979 (thumbturn), and XB13-379 (ADA thumbturn) are recommended.

Note: -2SI option is not available for XP98/99, 98/9952, or 98/9950WDC devices.

Security indicator	Conversion
conversion options	kits

Conversion kits are available for most 98/99 device types and include appropriate parts needed to upgrade installed devices/ trims. To order, specify device type with 2SI kit, handing and finish.

To update standard 996L or legacy 994L trim only, order 47427601 kit.

Cylinders with vertical tailpiece required. To accommodate cylinders with horizontal tailpiece, order 47686979 kit for compatibility.

CDSI/HDSI dogging indicator		New devices
Options	Device	How to order
Cylinder dogging security indicator	Panic devices: 33A/35A Series 98/99 Series	Prefix = CDSI
Hex dogging security indicator	Panic devices: 33A/35A Series 98/99 Series	Prefix = HDSI

Above options can not be used with fire-rated devices and are recommended for use in combination with the following trim functions - DT, K-DT, L-DT, EO, NL, K-NL, L-NL, NL-OP.

Dogging indicator conversion options*		Conversion kits
Part number	Description
040070 / 040071	33A CDSI conversion kit 3' / 4'
040072 / 040073	33A HDSI conversion kit 3' / 4'
040074 / 040075	35A CDSI conversion kit 3' / 4'
040076 / 040077	35A HDSI conversion kit 3' / 4'
040078 / 040079	98 CDSI conversion kit 3' / 4'
040080 / 040081	98 HDSI conversion kit 3' / 4'
040082 / 040083	99 CDSI conversion kit 3' / 4'
040084 / 040085	99 HDSI conversion kit 3' / 4'

^* For devices manufactured after 9/1997.
