V2M1200/1290 SERIES SINGLE DRILL TEMPLATE

Securitron

Phoenix, AZ 85044

Tel: 1-800-624-5625

Mon-Fri: 6:00am - 4:00pm PDT

Fax: 1-800-232-7329

MOUNTING INSTRUCTIONS

STEP 1 LOCATING MOUNTING HOLES

• A. FOLD template at dotted line.
• B. PLACE bottom portion of template against the door.

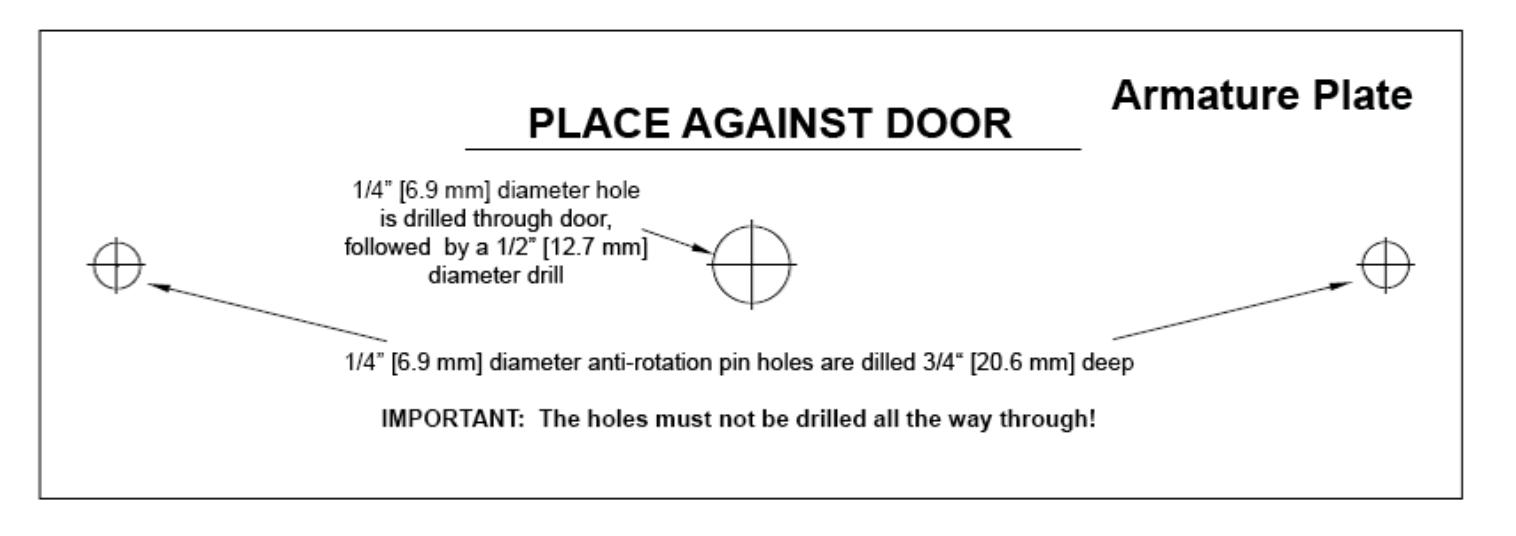

• C. LOCATE and MARK the three (3) holes on the armature plate.

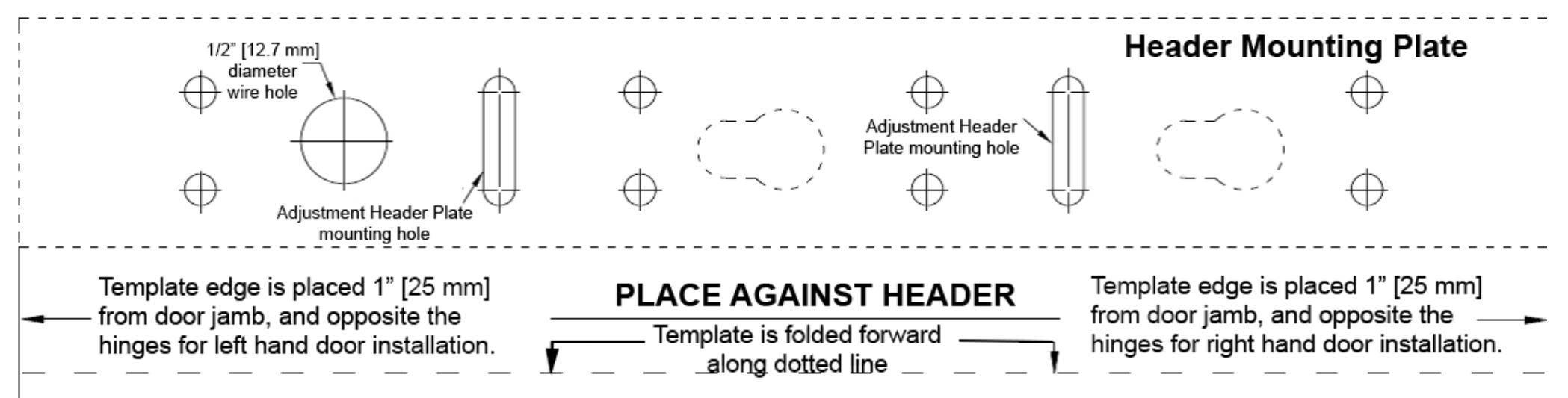

• D. LOCATE and MARK the two (2) adjustment header plate holes and wire hole on the header mounting plate.

STEP 2 INSTALLING ARMATURE PLATE

A. DRILL a level 1/4" diameter hole through the door. FOLLOW with a 1/2" diameter drill.

NOTE: The following is for a solid door only!

• B. DRILL two (2) 1/4" holes for the antirotation pins ¾" deep.
• C. MOUNT the armature plate to the door with the sex bolt.
• D. PLACE a metal washer, a rubber washer, and a metal washer on the bolt between the door and the armature.
• E. ENSURE armature rocks on the door.

STEP 3 HEADER MOUNTING PLATE

• A. MOUNT header plate to jamb using the two (2) adjustment holes.
• B. RUN the control cable through the wire hole.
• C. SLIDE maglock on the header mounting plate.
• D. ADJUST the position of the maglock to contact the armature.
• E. REMOVE the maglock and SECURE header mounting plate with the eight (8) remaining screws.

STEP 4 INSTALLING MAGNET

• A. SLIDE maglock on the header plate.
• B. FASTEN maglock to header plate with the Allen head cap screws located at each end of the lock.
• C. After checking for proper operation and alignment, APPLY THE screw locking agent to the header mounting plate screws, armature, and Allen head cap screws.
