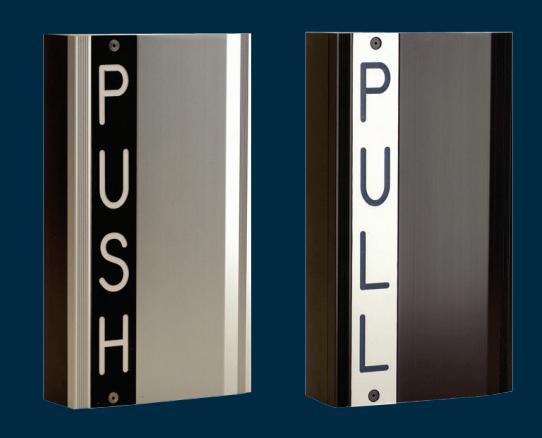

TSH Touch Sense® Handle

Compact push or pull egress alternative for electronic lock release

Sized to conceal existing mounting holes, the TSH Touch Sense Handle replaces standard pulls on aluminum doors to allow electronic lock release for egress.

With flexible options, it works equally well on in-swing doors or as a push-open device for out-swing doors, offering a clean look on aluminum frame glass doors.

Features

Standard Features

• For use on any push, pull or swing-through door
• Activates electronic release via 2 A DPST rated relay when touched to allow free egress
• Backup push button
• 16 ft. [4.8 m] 22 AWG 6 conductor cable and armored door cord included
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Optional Features

• (EL) ElectroLynx® connectors

Dimensions

Specifications

Certifications

• UL 294 Listed
• CSA-C22.2 No.205 Listed

Electrical

• 40 mA at rest; 25 mA releasing at 12 VDC or 24 VDC

Environmental

• Operating Temperature: 32˚ to 110˚ F [0˚ to 43˚ C]
• Indoor use only

Shipping Weight

• 3 lbs [1.36kg]

CONNECTOR STYLE	MODEL SERIES	FINISH
EL	– TSH	– CL
(blank) None	TSH Touch Sense Handle	BK Black Anodized
EL ElectroLynx		CL Clear Anodized
