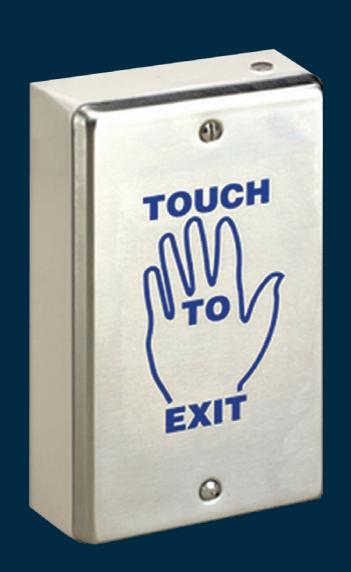

SP-1 Touch Sense® Plate

Touch Sense technology in a wall-mount request to exit plate

The SP-1 uses touch sensing technology to create a push plate with no moving parts.

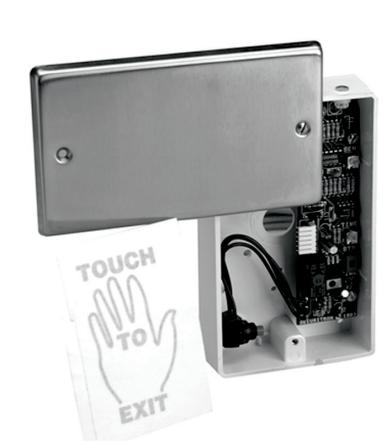

For indoor use only, the unit is oversized to cover a single gang cutout. Ideal to assist with ADA compliance, the unit includes a three-part vinyl "Touch to Exit" decal. A red LED is incorporated into the backbox.

Features

Standard Features

• Internal 0-25 second timer
• Backup push button
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

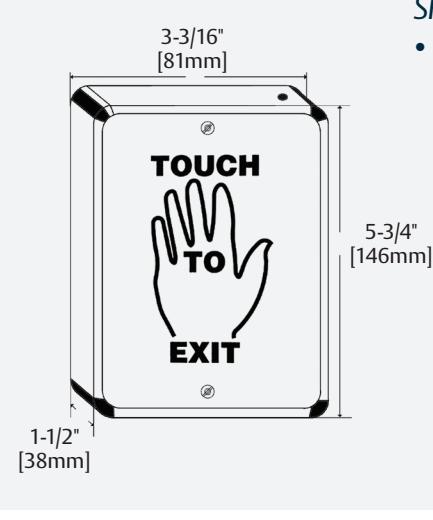

Dimensions

Specifications

Electrical

• 40 mA at rest; 25 mA releasing at 12 or 24 VDC

Environmental

• Operating Temperature: 32˚ to 110˚ F [0˚ to 43˚ C]
• Indoor use only

Shipping Weight

• 1.5 lbs [0.68kg]

How to Order

MODEL SERIES	LABEL
SP-1
SP-1 Touch Sense Plate, Clear Anodized	L Touch To Exit Label LH Handicap Label
