Securitron SAM2 Addendum Template

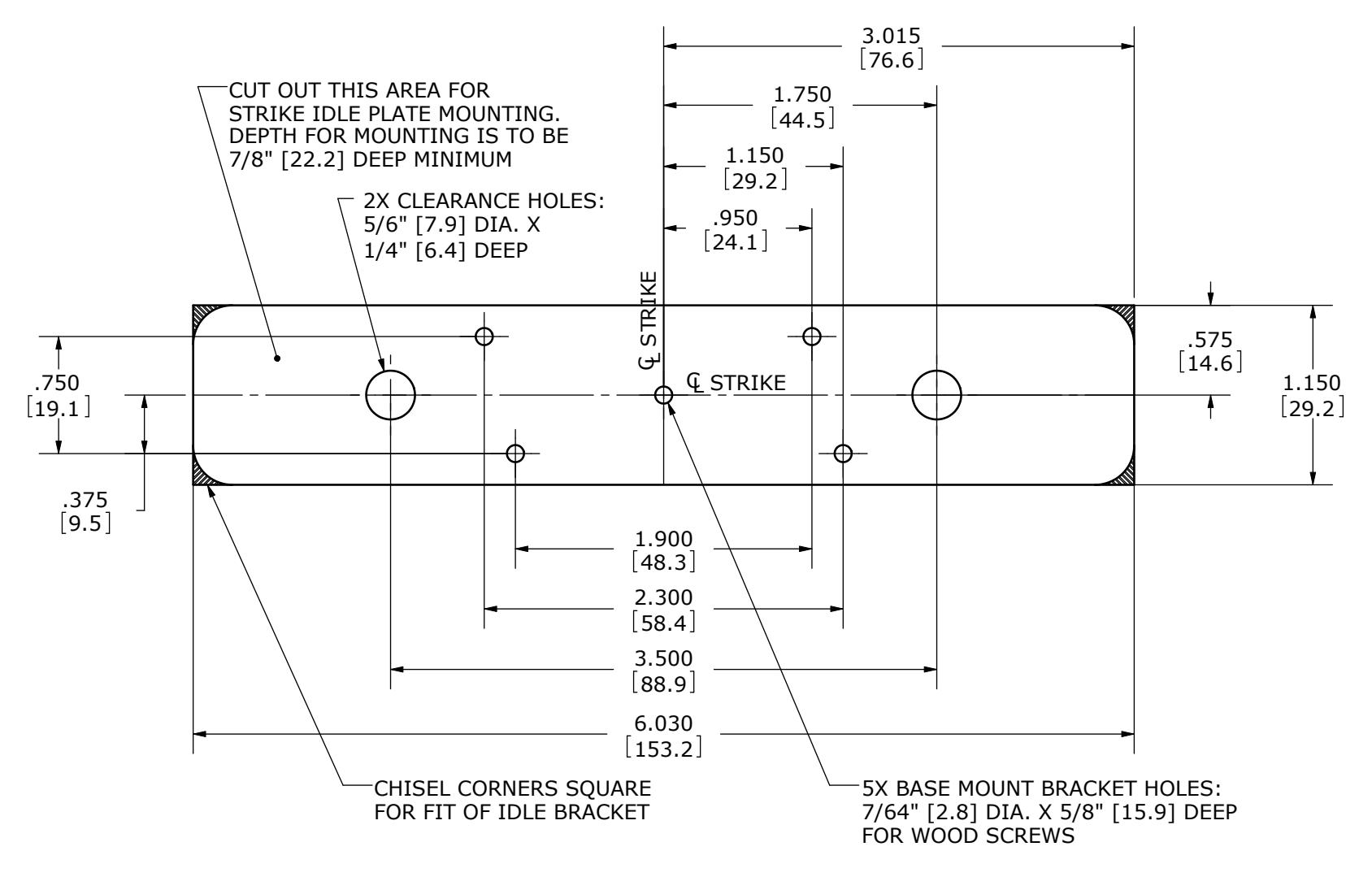

-ADDENDUM-SAM2 STRIKE ASSEMBLY INSTALLATION TEMPLATE

*FOR HARD CORE WOOD TYPE DOOR

ASSA ABLOY

*THIS TEMPLATE IS TO BE USED IN PLACE OF THE HARD CORE WOOD TYPE DOOR TEMPLATE SHOWN ON SHEET 2 OF 3 OF THE SAM2 TEMPLATE (P/N 500-20240) UNTIL FURTHER NOTICE.

P/N 500-20241-A (SHEET 1 OF 1)
