Securitron® R100 Aperio® Wireless Card Reader

Installation & Operating Instructions

Product Contents

A Reader

B Backplate

C VHB Tape

D Torx T8 4-40 x 1/4" Security Screw

E Torx T8 Driver Security Bit

F Alcohol Swab

G 2X AA Lithium Batteries*

*AA Lithium Batteries required. Use of other types of batteries, such as Alkaline, will significantly decrease battery life.

Recommended Tools

• Level
• Pencil, Wax Pencil
• Clamp

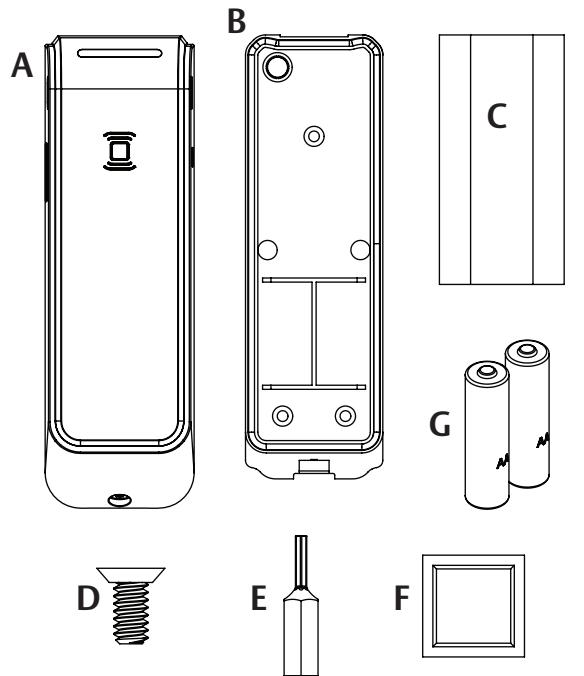

Diagram 1: Product Components

Product Specifications

• • Wireless Frequency 2.4GHz, IEEE 802.15.4, using AES 128-bit encryption
• • Lock Battery Type AA Lithium, 1.5 Volts (V)
• • Battery Life 50,000 cycles*

*All battery life claims are approximate and based on a set configuration profile. Battery performance is based on pre-defined system settings such as battery chemistry and battery model used, credential presentation settings (LED/buzzer), UHF polling period, UHF status intervals, and operations per day. Actual battery performance will vary and depends on the factors above.

• Operating Temperature 32° to 122° F (0° to 50° C)

• • HID® multiCLASS SE® technology Credentials Supported:
  • • High Frequency (13.56 MHz):
    • » HID iCLASS®
    • » HID iCLASS SE® (SIO-enabled)
    • » HID iCLASS® Seos™
    • » HID MIFARE® SE
    • » HID DESfire® EV1 SE
    • » MIFARE CLASSIC
    • » DESfire® EV1
  • • Low Frequency (125 kHz):
    • » HID Prox®, AWID, EM4102, ioProx
  • • NFC/BLE*
    • » Mobile enabled credentials
      • * Supported on BLE-enabled models

Mounting the Back Plate

• 1. Level and mark the desired placement. Clean the mounting surface with provided alcohol swab. Remove reader from backplate.
• 2. Cut the VHB tape into two pieces and apply tape as shown in Diagram 3. Mount backplate to marked location and apply pressure to activate tape adhesive.

NOTE: VHB tape is intended to be used on glass and non-porous metal surfaces. For all other surfaces, use an appropriate adhesive and follow the manufacturer's instructions.

• 3. Install batteries (Diagram 4) .
• 4. Secure reader to backplate.

NOTE: Ensure reader is fully seated against the backplate and the screw hole is properly aligned before securing.

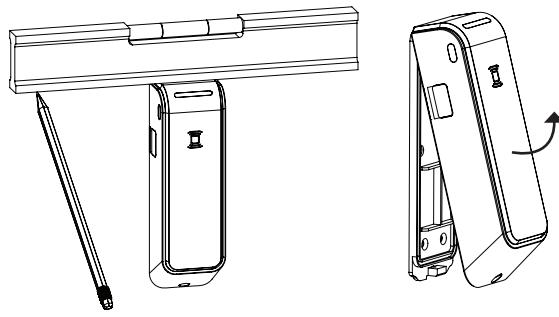

Diagram 2: Mark Placement & Remove Back Cover

Diagram 3: VHB Placement & Mounting

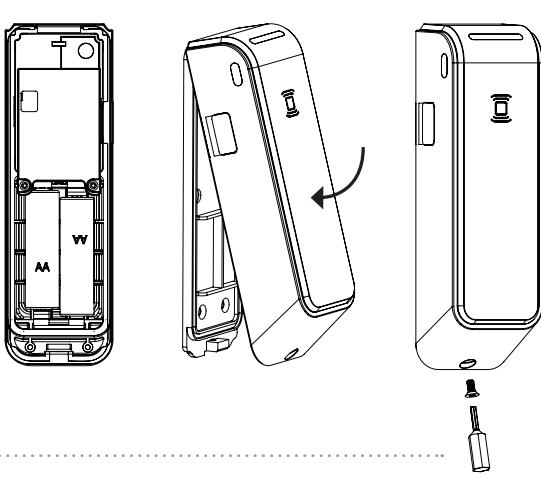

Diagram 4: Install Batteries & Secure Reader

Micro USB Port

For emergency power & local (hard wired) firmware updates, use micro USB port located on the side of the R100 reader.

Diagram 5: Micro USB

Aperio Hub Specifications

• Approvals CE, ETL, FCC, IC, C-Tick
• Safety & Emissions FCC 47CFR Part 15 subpart B and subpart C; IC RSS-210 EN ETSI 301 489-17 v2.1.1; ENETSI 300 328 v1.7.1; EN 60950-1 ed.2 2007
• Dimensions 82mm x 82mm x 37mm
• Power Supply 8-24 VDC
• Current 250 mA minimum
• Internal Antenna 2 cross polarized dipoles
• External Antenna (Part No. EXT-10-ANT) One reverse polarity SMA external antenna connector. Optional antenna type dipole with max antenna gain of 3.9dBi

• Radio Standard IEEE 802.15.4(2.4GHz) 15 channels (11-25)
• Encryption (RadioCommunications) AFS 128 bits
• Wireless Operating Range Up to 50 ft
• Receiver Sensitivity 100dBm 20% PER
• Wireless Transmit Power 10 d Bm/MHz
• Class of Protection IP 20
• Operating temperature 41°F to 95°F [5°C to 35°C]
• Humidity < 95% non-condensing
• Status LED (red/green/yellow)

LED Codes

Aperio LED LOCK Codes
(1) ONE Yellow Flash		Card read
(1) ONE Green Flash		Access Granted
(5) FIVE Yellow (1) ONE Red	111111	Force Closed (in open mode)
Continuous Yellow Flashes (.25 sec every second)	1 1 1 1	Comhub busy
(1) ONE Red Flash	ı	Access Denied (AC Online)
(3) THREE Red Flash	Ш	Access Denied (AC Offline)
Continuous Red Flashes (.125 sec every second)	1111	Lock is Blocked (when closing)
(10) TEN Red Flashes		Error in Lock
Continuous Yellow Flashes (.25 sec every 5 seconds)		Low Battery
Continuous Red Flashes (.25 sec every 5 seconds)		Dead Battery

Aperio LED HUB Codes
Steady Green		Online
Steady Green + (1) ONE Red Flash		Lock Offline
Steady Green +(2) TWO Red Flashes	-	Access Control Offline
Steady Green +(3) Three Red Flashes		Access Control & Lock Offline
Flashing Yellow		UHF Communication

Connecting the Hub

The following applies only to Aperio factory paired kits with AH20 Hubs.

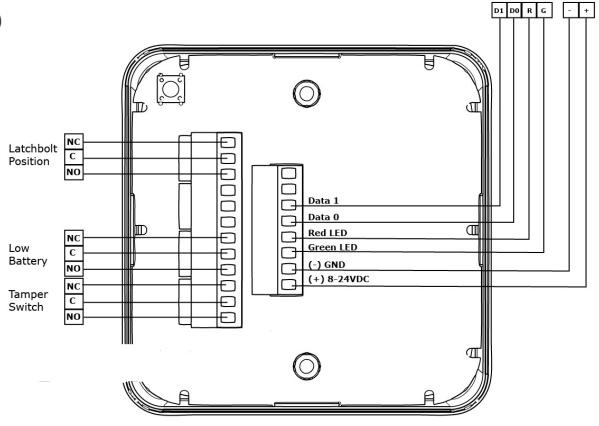

1. Connect the Wiegand D1, D0, red, and green LED signals.

NOTE: The Green LED input is used to grant access to the cabinet lock. If the Green LED signal is not available to indicate approved access, the approval input can be activated by a relay with "NO" attached to Green LED and "C" to GND. The Red LED input is used to indicate access denied. If the RED LED signal is not connected, the lock will flash RED three times when a non-approved card is presented indicating loss of connection to the hub rather than access denied. Any other codes may be reference on the LED reference card.

For placement of hub, see AH20/AH30 Installation Instructions
