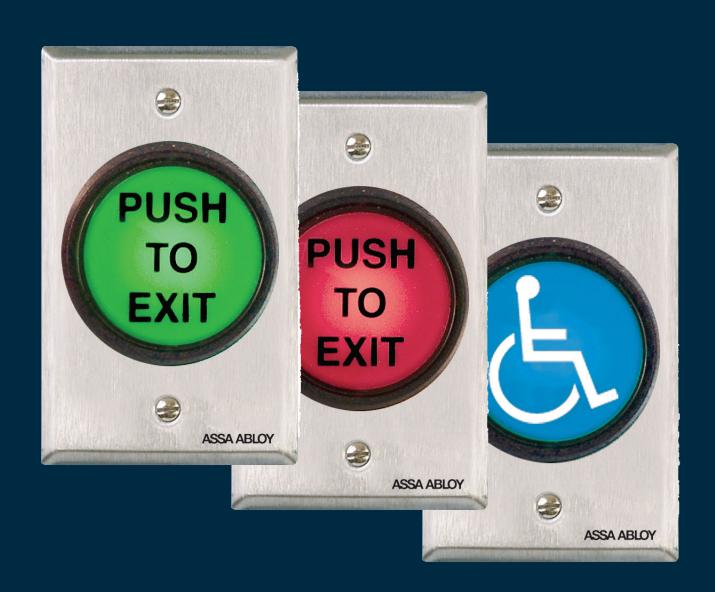

PB5 Series Push Buttons

Medium round, illuminated push button

High quality Push Buttons are available in a broad selection of colors, sizes, switch types and outputs.

With a wide range of options for interchangeable lenses and field convertible outputs, push buttons can release any lock, alone or in conjunction with door closers and other hardware.

Features

Standard Features

• Includes interchangeable green, red and blue ADA lenses
• Field convertible from DPST to DPDT
• Field selectable 12/24VDC
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Specifications

Dimensions

• Stainless steel single gang plate: 4-1/2" x 2-3/4" [114mm x 70mm]

Electrical

• 9 mA at 12 VDC
• 20 mA at 24 VDC
• 5 A rated contacts

How to Order

MODEL SERIES	ILLUMINATION
PB5	E
PB5 Push Button	(blank) Illuminated
	E Non-Illuminated
