PB4L Series Push Buttons

Stainless push button with illuminated halo

High quality Push Buttons are available in a broad selection of colors, sizes, switch types and outputs.

With a wide range of options for interchangeable lenses and field convertible outputs, push buttons can release any lock, alone or in conjunction with door closers and other hardware.

Features

Standard Features

  • Illuminated green halo-style button
  • Bi-color LED
  • Tamper resistant
  • MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Specifications

Dimensions

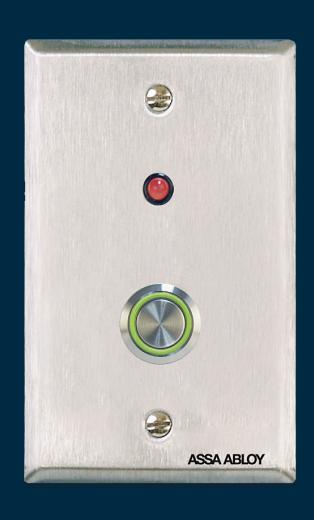

  • Stainless steel single gang plate: 4-1/2" x 2-3/4" [114mm x 70mm]

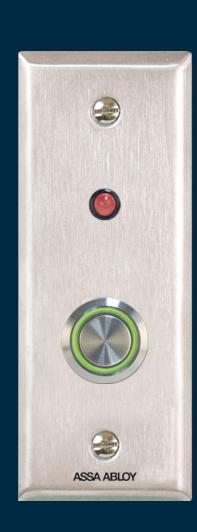

  • Stainless steel narrow stile plate: 4-1/2" x 1-3/4" [114mm x 44mm]

Electrical

  • 20 mA at 12 VDC
  • 40 mA at 24 VDC
  • 4 A rated contacts

How to Order

MODEL SERIES SWITCH TYPE MOUNTING METHOD SWITCH PULL / THROW
PB4L A N -2
PB4L Push Button (blank)
Momentary Switch 		(blank) Single Gang 2 DPDT — Double Pole,
Double Throw
A
Alternate Switch 		N
Narrow Gang
