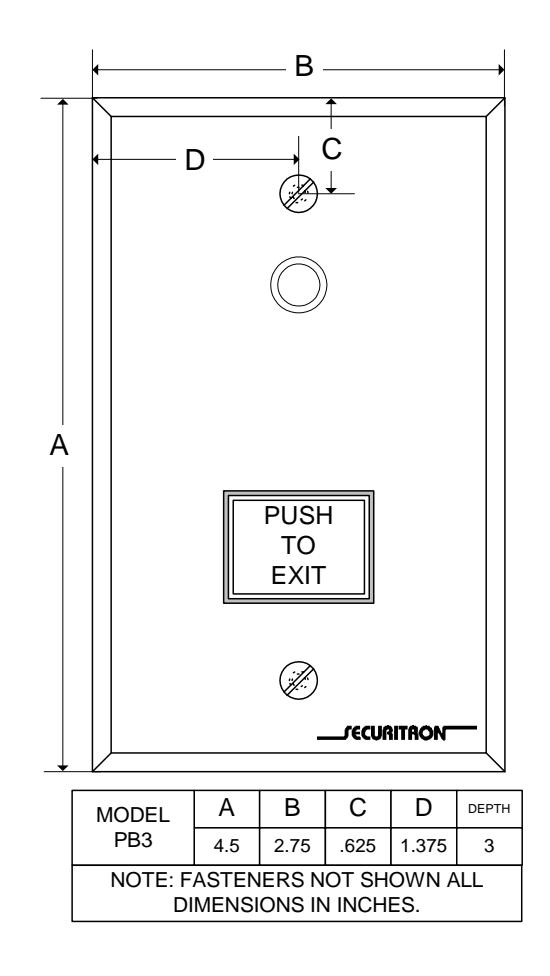

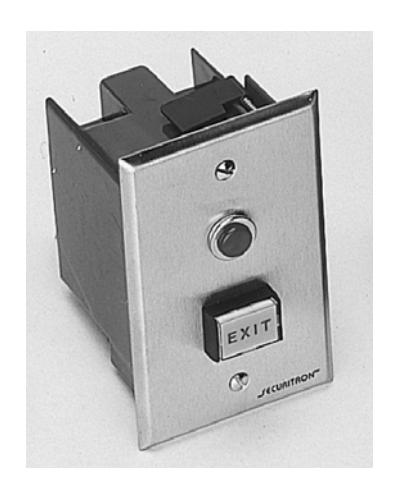

PUSH BUTTON - MODEL PB3
Features
- A compact 1" x 1-3/4" push button
- 3 amp DPST contacts (field modify for DPDT)
- Back box is supplied on single gang applications
- 12-24 VDC bi-color illumination is standard
- Alternate action version available
- Narrow stile version available
- Economy non-illuminated version available
- UL Listed contacts
Operating Temperature 0 to 43C [32 to 110F]
How to Order
| Part # | Description |
|---|---|
| PB3 | Push Button Momentary Single Gang |
| PB3A | Push Button Alternate Single Gang |
| PB3N | Push Button Momentary Narrow Stile |
| PB3AN | Push Button Alternate Narrow Stile |
PUSH BUTTON - MODEL PB3 (cont'd)
| PB3E | Push Button Momentary Single Gang Economy |
|---|---|
| PB3EA | Push Button Alternate Single Gang Economy |
| PB3EN | Push Button Momentary Narrow Stile Economy |
| PB3EAN | Push Button Alternate Narrow Stile Economy |
Architectural Specifications
- A. The Push Button shall be produced by an ISO 9001 certified manufacturer.
- B. The Push Button shall be a compact industrial grade 1" by .75" button with protective cowling.
- C. The Button shall be labeled 'EXIT" and shall be green back lit using a multi-chip LED.
- D. A separate red LED shall be provided as an additional indicator.
- E. The LED's shall operate on 12 or 24 VDC (field selectable).
- F. The switch shall be DP/ST (field modifiable to DPDT) and rated at 3 Amps at 12 or 24 VDC.
- G. The switch shall be available in momentary or alternate action, with a Stainless Steel - 630/US32D single gang face plate or narrow stile Stainless Steel - 630/US32D face plate for mullion mounting.
