PB3 Series Push Buttons

Assorted sizes and colors with a uniform look

High quality Push Buttons are available in a broad selection of colors, sizes, switch types and outputs.

With a wide range of options for interchangeable lenses and field convertible outputs, push buttons can release any lock, alone or in conjunction with door closers and other hardware.

Features

Standard Features

• Includes interchangeable green and red lenses
• Field convertible from DPST to DPDT
• Field selectable 12/24VDC
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Optional Features

• Red LED on plate; for no LED select (E)
• Momentary or for Alternate select (A)
• Illumination Light Kit (LK)

Specifications

Dimensions

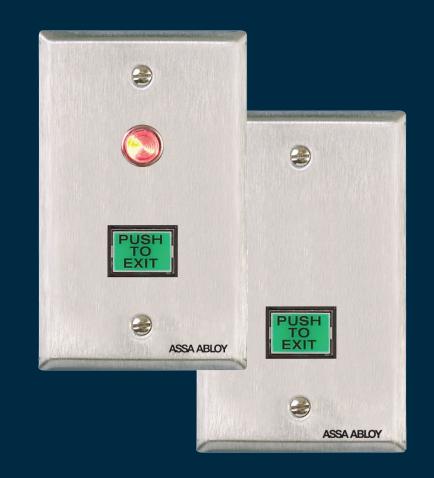

• Stainless steel single gang plate: 4-1/2" x 2-3/4" [114mm x 70mm]

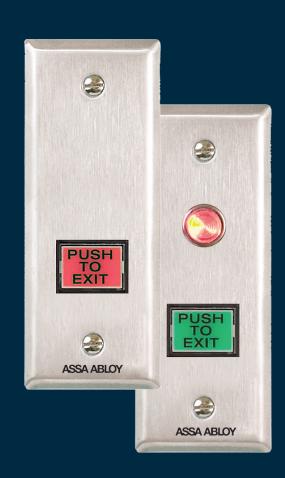

• Stainless steel narrow stile plate: 4-1/2" x 1-3/4" [114mm x 44mm]
• Black plastic surface mount: 3-7/8" x 2" [98mm x 51mm]

Electrical

• 29 mA at 12 VDC
• 40 mA at 24 VDC
• 3 A rated contacts

How to Order

MODEL SERIES	ILLUMINATION	SWITCH TYPE	MOUNTING METHOD
PB3	E	A	N
PB3 Push Button	(blank) Illuminated	(blank) Momentary Switch	(blank) Single Gang
	E Non-Illuminated	A Alternate Switch	2 Double Gang
			N Narrow Gang
			R Remote, Surface Mount
