Securitron PB2 Push Buttons Specifications
Open the original PDF document
View PDF
|
MODEL
PB2 |

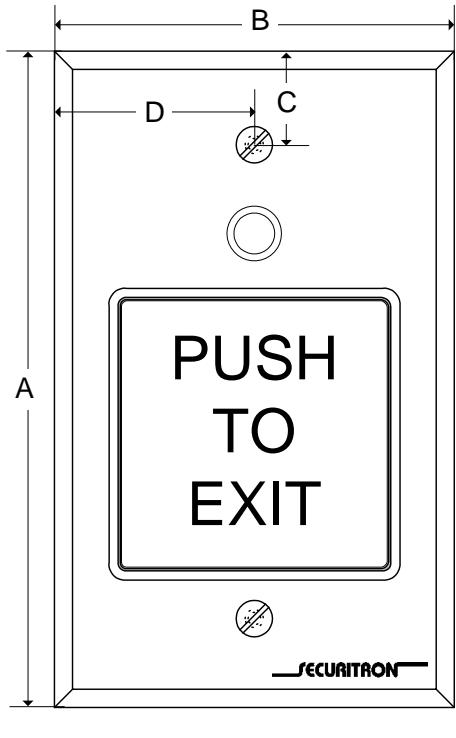

A | B | C | D | DEPTH | |
|---|---|---|---|---|---|---|
| 4.5 | 2.75 | .625 | 1.375 | 3 | ||
|
NOTE: FASTENERS NOT SHOWN ALL
DIMENSIONS IN INCHES. |
||||||

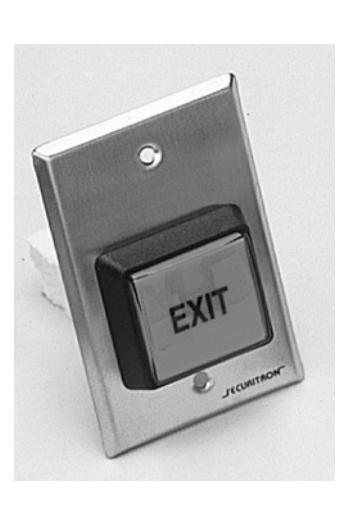

PUSH BUTTON - MODEL PB2
Features
- SPDT 10 amp contacts (DPDT available, see How to Order section)
- Large 2" diagonal flush button
- Momentary operation
- 12/24 VDC LED button illumintaion and a red LED (illuminated version only)
- Stainless steel single gang plate (back box included on illuminated versions)
Operating Temperatures 0 to 43C [32 to 110F]
Options
- H Handicap
- E Economy non-illuminated
- 2 DPDT
PUSH BUTTON - MODEL PB2 (cont'd)
How to Order
| Part # | Description |
|---|---|
| PB2 | Push Button 2" Square Mom. SPDT Single Gang Illuminated |
| PB2H | Push Button 2" Square Mom. SPDT Handicap Illuminated |
| PB2E | Push Button 2" Square Mom. SPDT Single Gang |
| PB2EH | Push Button 2" Square Mom. SPDT Handicap |
| PB2-2 | Push Button 2" Square Mom. DPDT Single Gang Illuminated |
Architectural Specifications
- A. The Push Button shall be produced by an ISO 9001 certified manufacturer.
- B. The Push Button shall be a 2" by 2" industrial grade button with protective cowling.
- C. The Button shall be labeled 'EXIT" and shall be green back lit using an incandescent bulb. A separate red LED shall be provided as an additional indicator.
- D. The LED's shall operate on 12 or 24 VDC (field selectable).
- E. The switch shall be SPDT and rated at 10 Amps at 12 or 24 VDC.
- F. The push button shall be mounted on a Stainless Steel 630/US32D single gang faceplate.
- G. The switch shall be available in momentary action in both illuminated and nonilluminated versions.
