PB Series Push Buttons

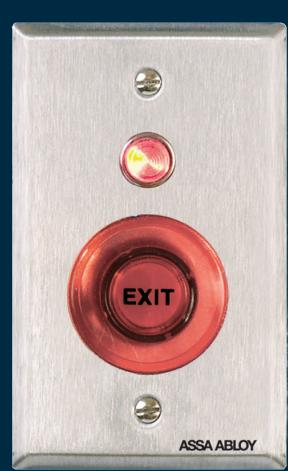

Medium round illuminated push buttons

High quality Push Buttons are available in a broad selection of colors, sizes, switch types and outputs.

With a wide range of options for interchangeable lenses and field convertible outputs, push buttons can release any lock, alone or in conjunction with door closers and other hardware.

Features

Standard Features

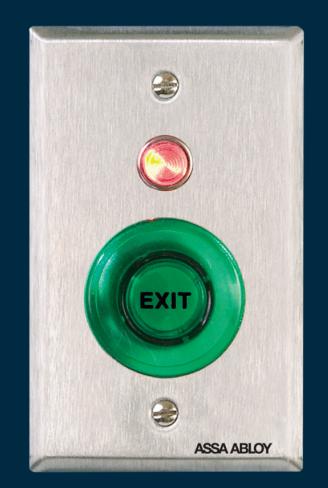

  • Includes interchangeable green and red lenses
  • Red LED on plate
  • Stainless steel single gang plate: 4-1/2" x 2-3/4" [114mm x 70mm]
  • Field selectable 12 or 24VDC
  • MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Specifications

Electrical

  • 5 mA at 12 or 24VDC
  • 7 A rated DPST contacts

How to Order

MODEL SERIES SWITCH TYPE
PB A
PB
Push Button 		(blank)
Momentary Switch
A
Alternate Switch
