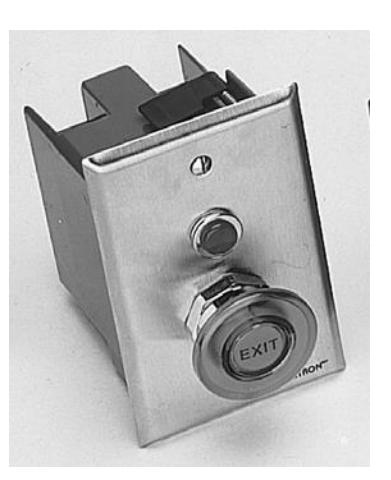

SECURITRON® PUSH BUTTON - MODEL PB

Features

• Industrial grade 1-1/2" mushroom button
• 7 amp DPST contacts
• 12/24 VDC bi-color illumination
• Available in momentary or alternate
• Stainless steel single gang plate

Options

• A - Alternate
• R – Red button

Operating Temperature -40 to 60C [-40 to 140F]

How to Order

Part #	Description

Architectural Specification

• A. The Push Button shall be produced by an ISO 9001 certified manufacturer.

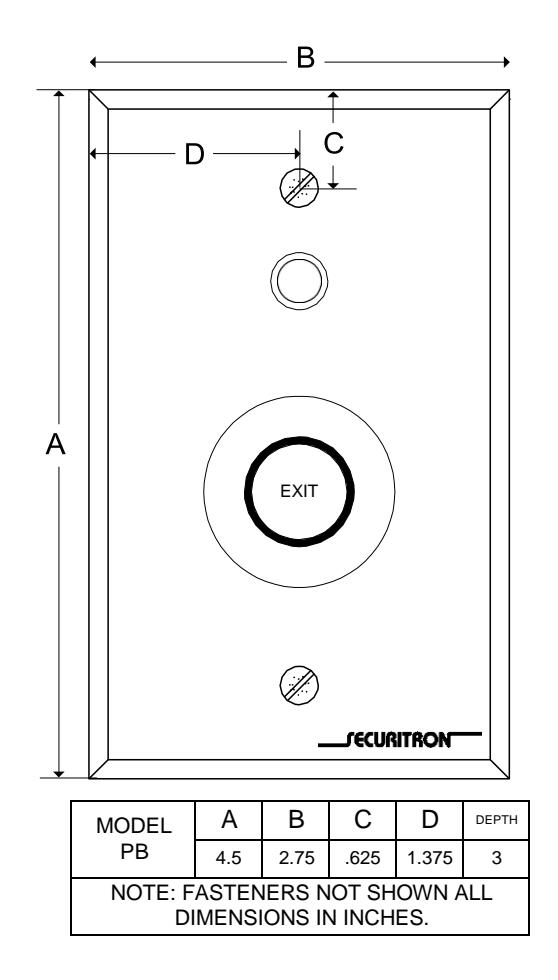

• B. The Push Button shall be an industrial grade 1.5" diameter mushroom button.
• C. The Button shall be labeled 'EXIT" and shall be green back lit using a multichip LED. A separate red LED shall be provided as an additional indicator.
• D. The LED's shall operate on 12 or 24 VDC (field selectable).
• E. The switch shall be DP/ST and rated at 7 Amps at 12 or 24 VDC.
• F. The push button shall be mounted on a Stainless Steel 630/US32D single gang face-plate.
• G. The switch shall be available in either momentary or alternate action versions.
