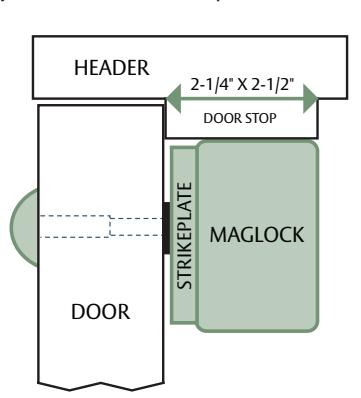

Electromagnetic locks (maglocks) can be installed on various frames and doors using accessories. To figure out what you need for a maglock install, first measure the door stop. Most maglocks require 2-1/4" to 2-1/2" of flat mounting space for direct mount or mounting bracket. You may need one or more accessories if the door stop is less than 2-1/2".

• M38, M68, M32, M380E, M680E and DEM680E Magnalocks® fit in 2-1/4" of flat mounting space.
• M62, DM62 and M82 Magnalocks fit in 2-1/2" of flat mounting space.

Which maglock accessories does your door need?

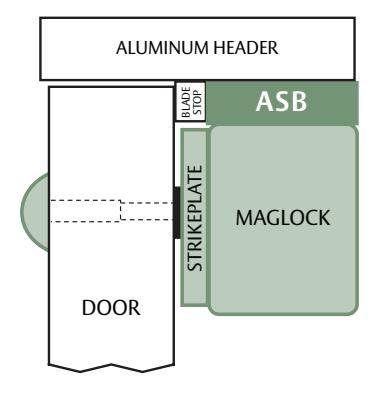

Aluminum Spacer Brackets ( ASB )

• For aluminum doors
• Used when the blade stop requires the maglock to be lowered
• Available for M32, M62 and M82 only

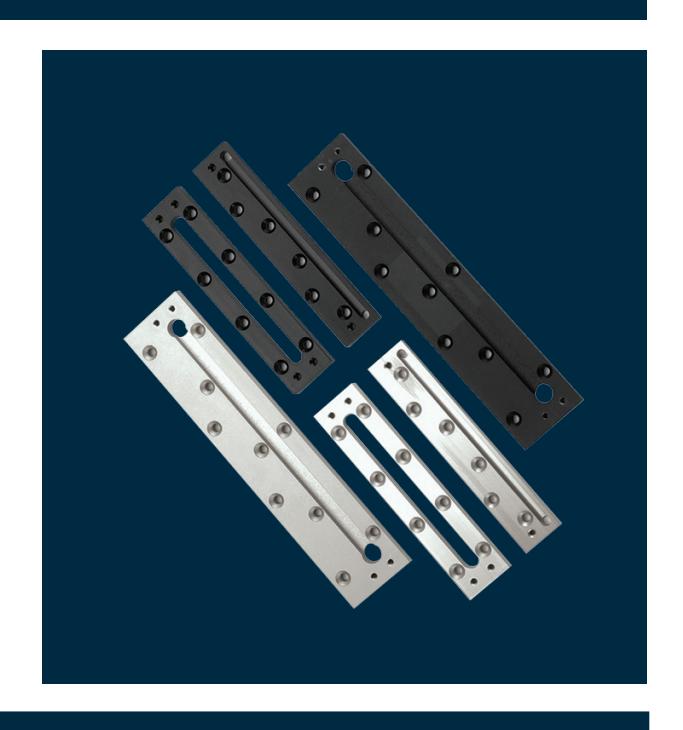

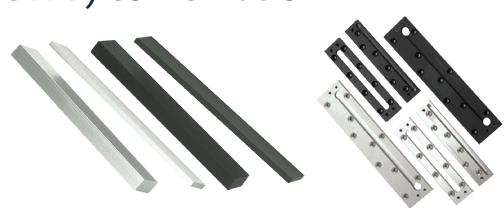

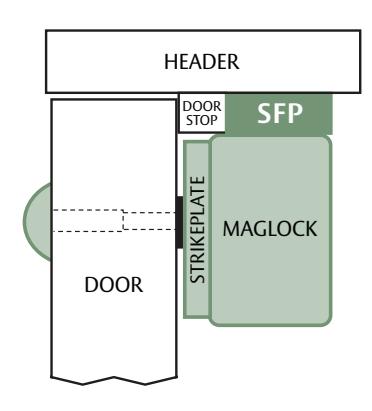

Stop Filler Plates ( SFP )

• For steel and wood frames
• Fills or extends a door stop
• Available in 1/4", 3/8", 1/2" and 5/8" thicknesses; all 1-1/4" wide

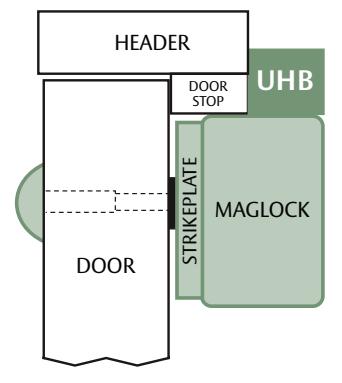

Universal Header Bracket ( UHB )

• Extends the header 1" to 1-1/2" to create enough space to mount the magnet
• Provides concealed wiring chamber

Magnetic Lock Mounting Accessories

Concrete/ Wood Bracket (CWB)

• For concrete filled metal and wood frames
• Easier to install than blind nuts
• Heavy duty wood and metal fasteners included
• Available for M32, M62 and M82 only

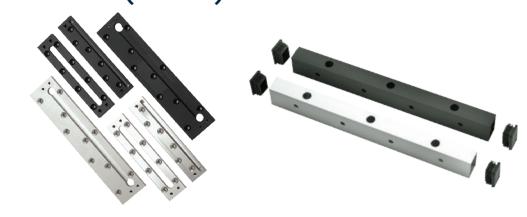

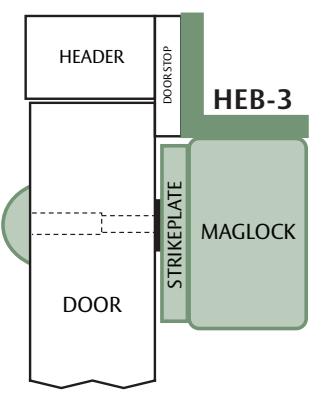

Header Extension Bracket (HEB)

• 90 degree angle brackets
• Extends narrow headers to permit maglock mounting

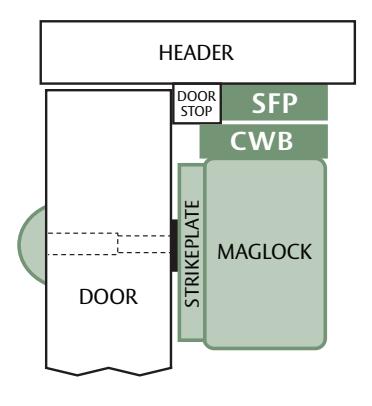

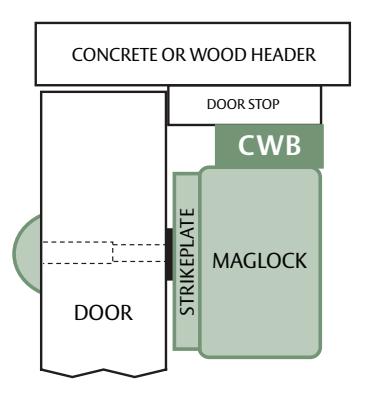

Sample Stop Filler Plate ( SFP ) and Concrete/Wood Bracket ( CWB ) combination

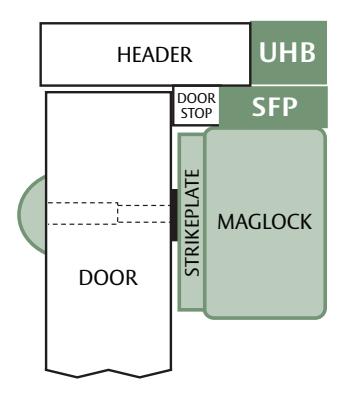

Sample Stop Filler Plate (SFP) and Universal Header Bracket (UHB) combination

Additional Options

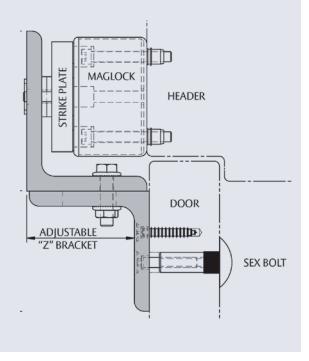

• TJ and Z Brackets
• Use on in-swing doors
• Use a Z bracket (ZA) with face mount maglocks, (M32/ M62/M82 only)
• Use a Top Jamb bracket (TJ) with bracket mounted maglocks (M38/M68 only)
• Dress covers in Clear Anodized, Black Anodized or Stainless Polish
• Find more at securitron.com

All accessories are available in a clear aluminum or black anodized finish. Verify length of magnetic lock before ordering mounting accessories.
