Securitron M82F Electromagnetic Locks Face Mount Template

Open the original PDF document

View PDF

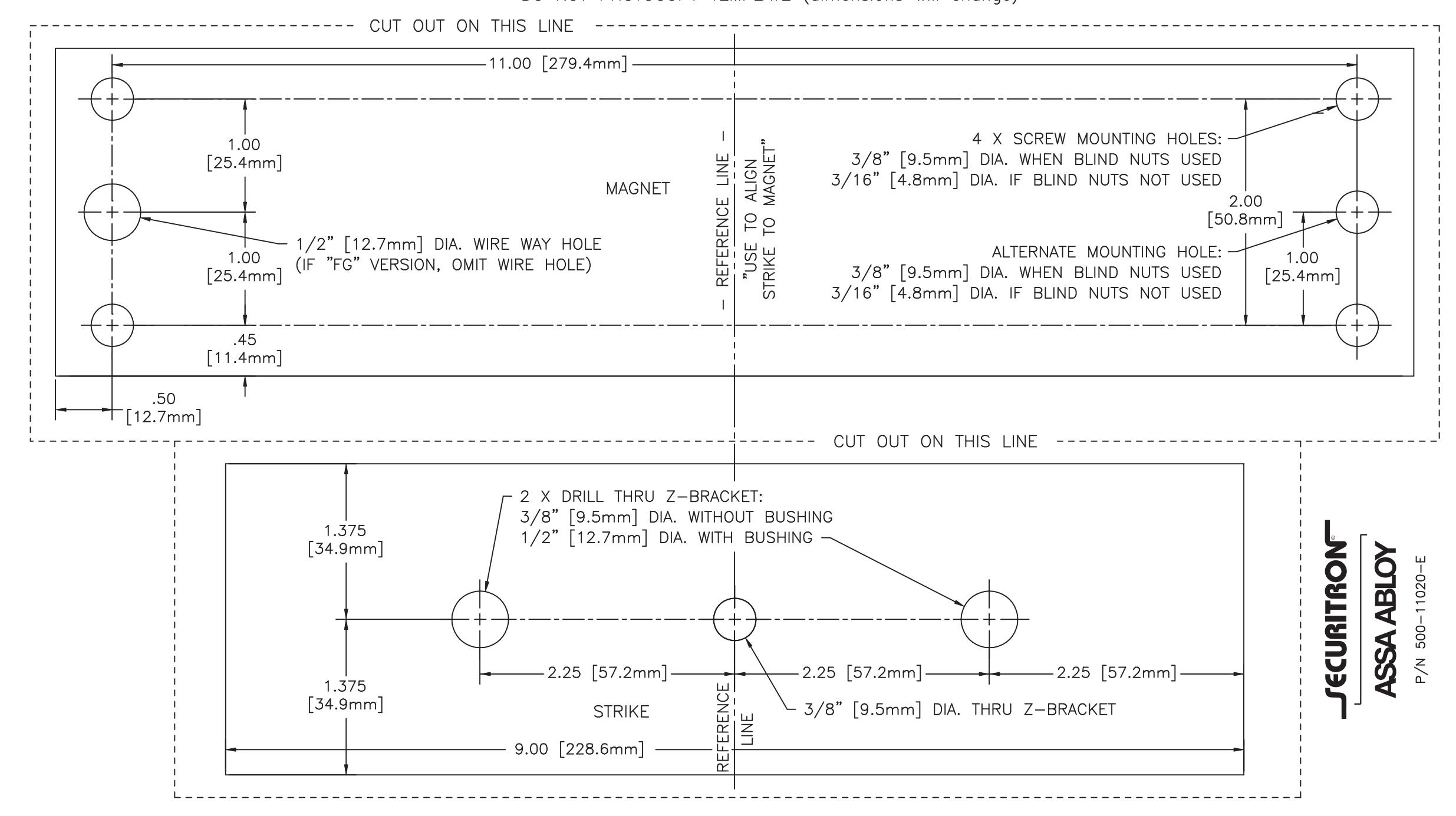

TEMPLATE FOR 82F SERIES MAGNALOCK (FACE MOUNT) !!! WARNING: DO NOT DRILL INTO MAGNET OR STRIKE FOR ANY REASON !!! DO NOT PHOTOCOPY TEMPLATE (dimensions will change)
