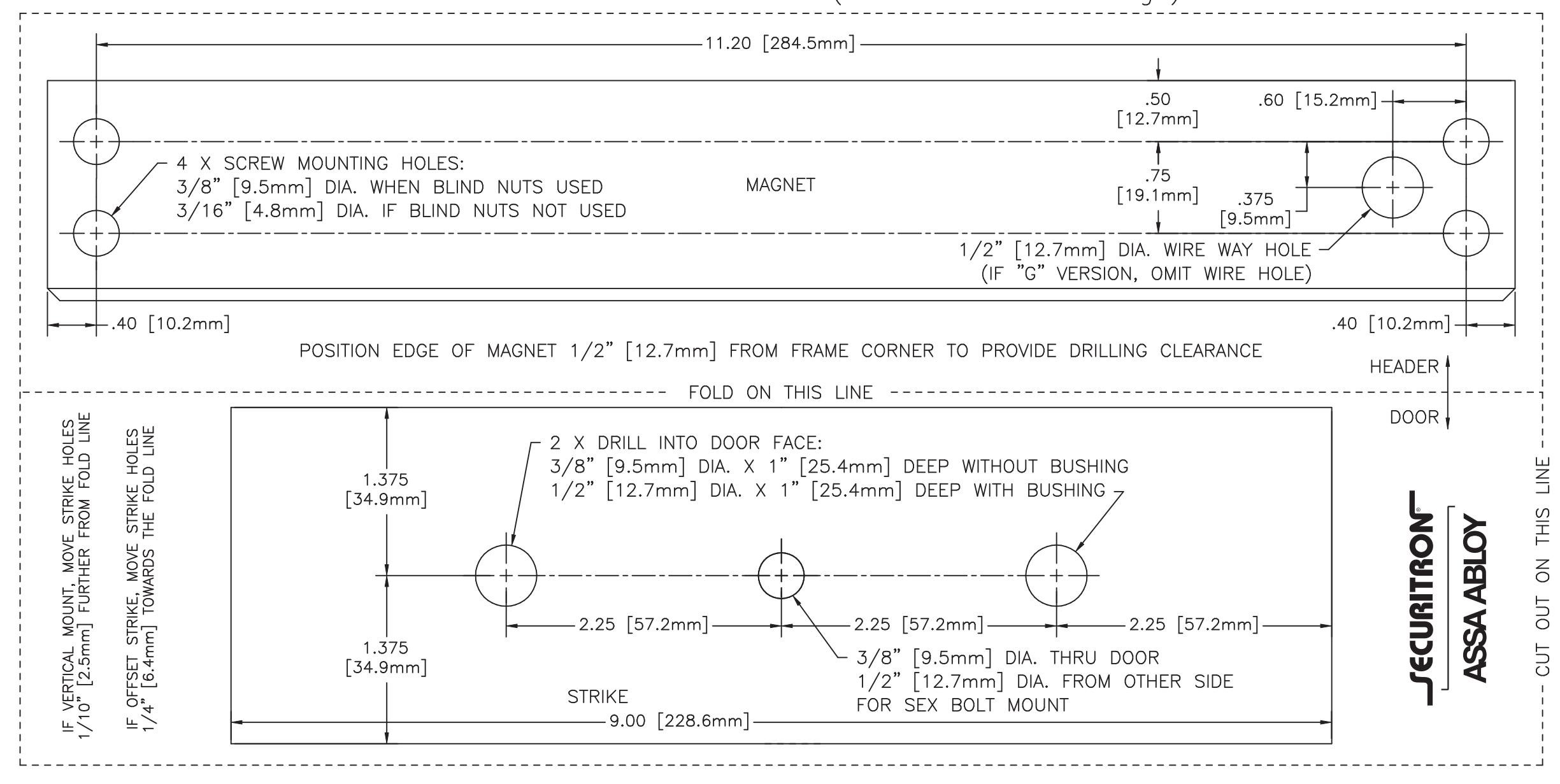

TEMPLATE FOR 82 SERIES MAGNALOCK (STANDARD MOUNT)

!!! WARNING: DO NOT DRILL INTO MAGNET OR STRIKE FOR ANY REASON !!! DO NOT PHOTOCOPY TEMPLATE (dimensions will change)
