Discover EcoMag Technology

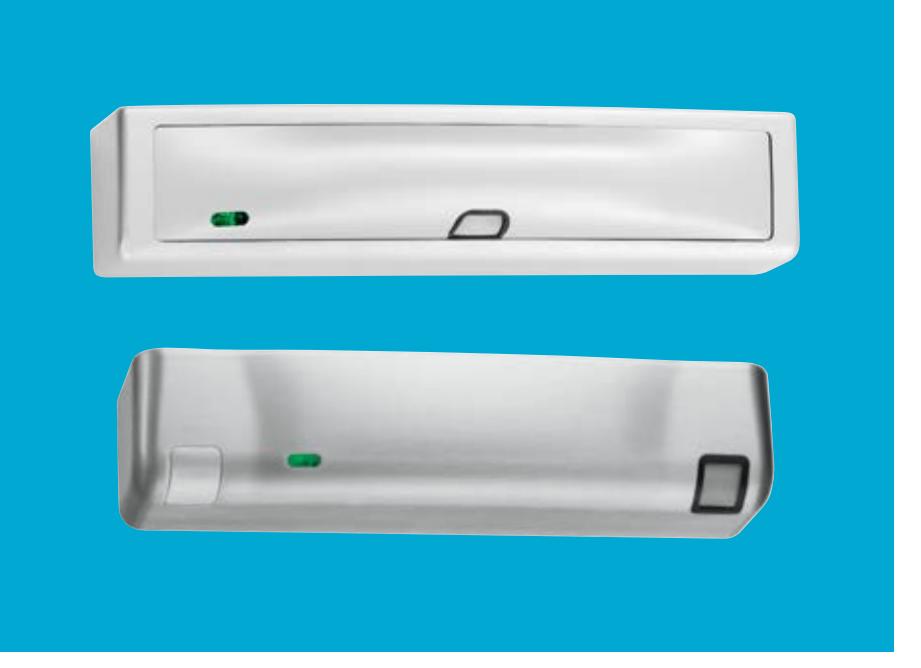

Securitron® M680E & M380E Series Sustainable Magnalocks®
ELECTRONIC SECURITY HARDWARE SECURITRON PRODUCTS
When strength, integration, style and sustainability matter. Nothing compares to Securitron EcoMags.
The Securitron M680E & M380E Series delivers the same unsurpassed intelligence, style and convenience as the previous Securitron M680 & M380 Series but with up to 80% reduction in energy consumption, making them the most advanced electromagnetic locks available.
Easy Install
Versatile
Intelligent
Sustainable
With up to 80% decreased energy consumption, the Securitron M680E & insert makes the Securitron M680E & M380E sustainable inside and out.
Specifications
Certifications M380E
- UL 10C Listed
- UL 1034 Burglary-Resistant Listed
- UL 294 Listed
- CAN4-S104, CAN/ULC Listed
- ANSI/BHMA A156.23, Grade 3
- California State Fire Marshal Approved
• Maglock Average Power Draw (±10%) x 140 mA at 12 VDC x 90 mA at 24 VDC • Maglock Maximum Power Draw (±10%) x 585 mA at 12 VDC x 310 mA at 24 VDC • REX Power (±10%) x Adds 25 mA at 12 VDC x Adds 10 mA at 24 VDC
M380E
Electrical Consumption
M680E
- UL 10C Fire Rated, 1 Hour
- UL 1034 Burglary-Resistant Listed
- UL 294 Recognized Component
- CAN/ULC-S104 Fire Door Conformant
- ANSI/BHMA A156.23, Grade 2
- California State Fire Marshal Listed
M680E
-
Maglock Average Power Draw (±10%)
- x 113 mA at 12 VDC
- x 52 mA at 24 VDC
-
Maglock Maximum Power Draw (±10%)
- x 515 mA at 12 VDC
- x 290 mA at 24 VDC
-
REX Power (±10%)
- x Adds 25 mA at 12 VDC
- x Adds 10 mA at 24 VDC
M680E Series
• 1,200 lbs [544 kg]
M680E Series
• 8 lbs [3.6 kg]
Features
Standard Features
- Sustainability documentation
- Energy efficient, low power usage
- Auto calibration upon installation
- Automatic dual-voltage no field adjustment required
- LED Indicator shows the lock is secure, open, or has an incomplete bond
- Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
- Autosensing dual voltage with microprocessor technology
- Rust resistant all ferrous metal surfaces plated for durability
- Adjustable automatic relock timer (0 to 30 seconds)
- Wire chamber anti-tamper switch

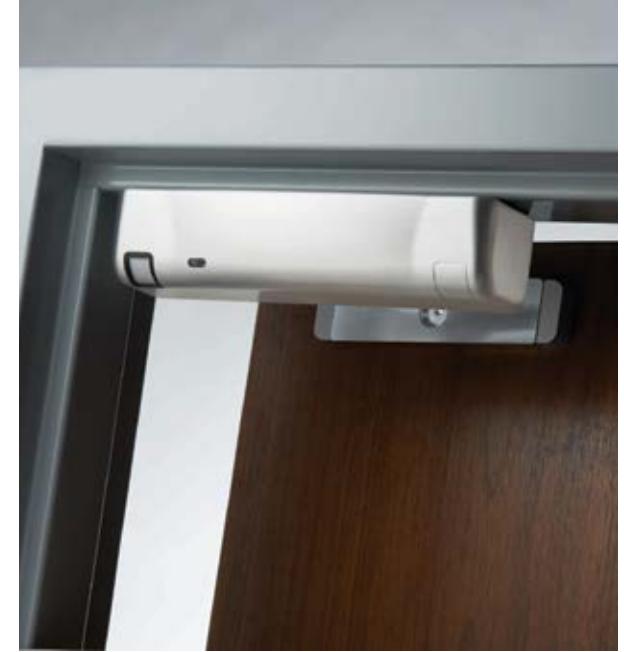

- Size optimized for use with door closers
- Patented BondSTAT lock sensor and integrated Door Position Switch (DPS) with relock timer
- MagnaCare® lifetime replacement, no fault, no questions asked warranty
Additional Features for M380E

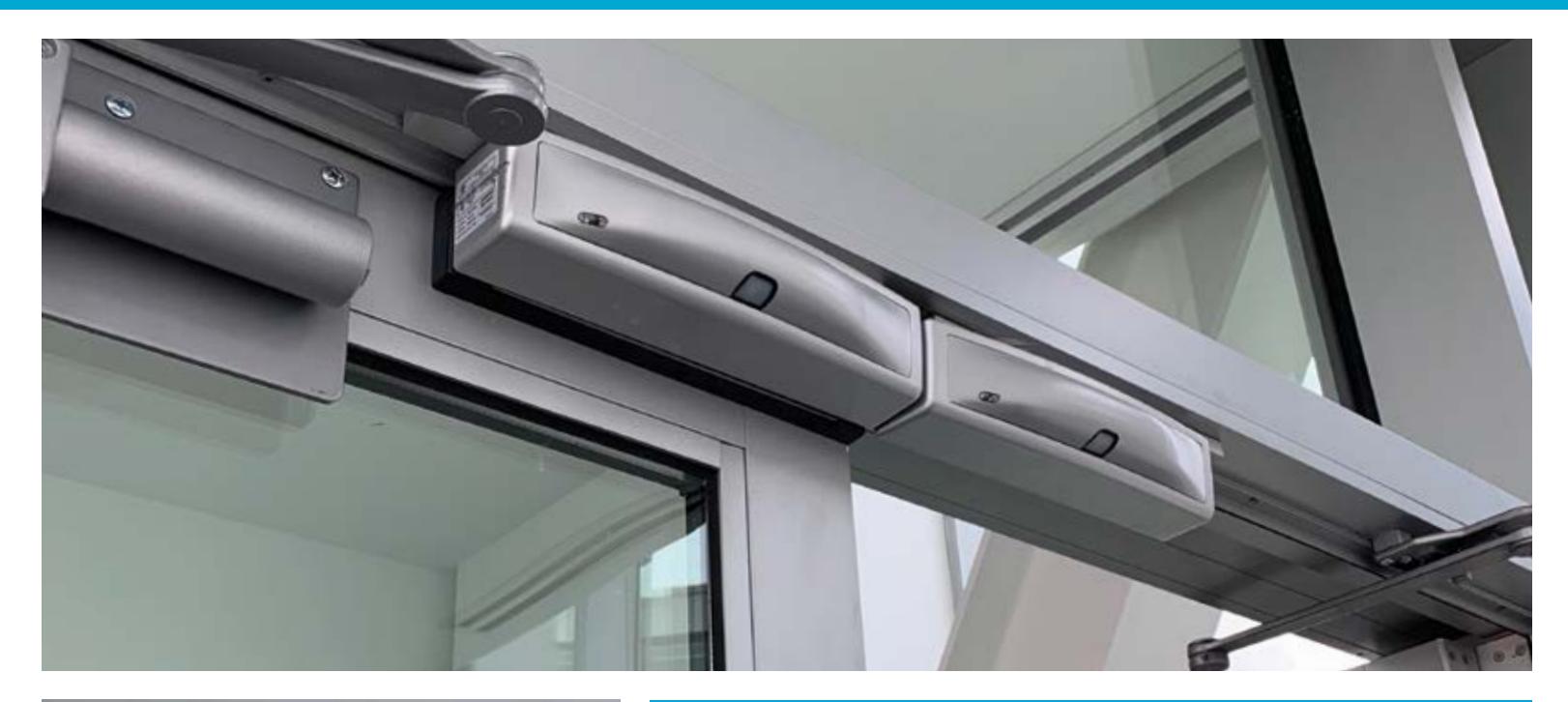

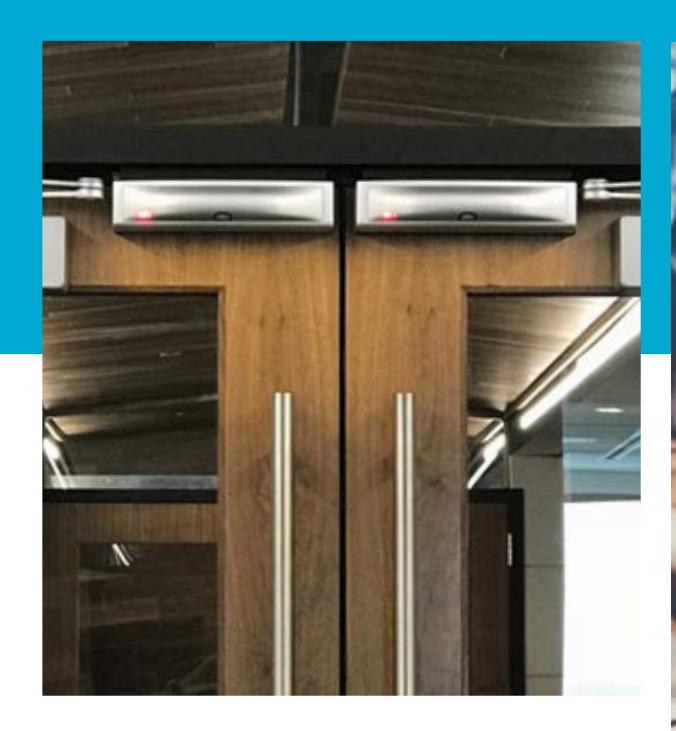

• Synchronous double door release using a single Request to Exit
Optional Features
- X Integrated passive infrared request to exit
- BD Patented BondSTAT lock sensor and integrated Door Position Switch (DPS) with relock timer (Standard on M380E Series)
Holding Force M380E Series
• 600 lbs [272 kg]
Shipping Weight M380E Series
• 6.5 lbs [2.94 kg]
| Model Series | Monitoring Options | Accessory Options | Finish Options |
|---|---|---|---|
| M680E | BD | X |
–
606 |
| M680E 1,200 lbs | (blank) No Monitoring |
(blank) No Accessory
Option |
628/US28 Satin Aluminum Clear |
|
BD BondSTAT Monitor &
Door Position Switch |
600 Paintable Primer Gray Finish | ||
| X PIR Request to Exit | 605/US3 Bright Brass | ||
| 606/US4 Satin Brass | |||
| 612/US10 Satin Bronze | |||
| M380E | BD | X | 613E Dark Oxidized Satin Bronze |
| 629 Bright Stainless Steel | |||
| M380E 600 lbs |
BD BondSTAT Monitor &
Door Position Switch (Standard) |
(blank) No Accessory
Option |
630 Satin Stainless Steel |
| BSP Black Suede Powder | |||
| X PIR Request to Exit | WSP* White Suede Powder |
Achieve Greater Energy Efficiency
With Securitron's Eco Products
Securitron EcoPower Power Supply: Ideal for use with EcoFlex® Mortise Locks from ASSA ABLOY Group brands Corbin Russwin and SARGENT.
Securitron M680E & M380E EcoMag Sustainable Magnalocks: The same unsurpassed intelligent, style and convenience as the previous M680 & M380 series, but with 80% energy consumption reduction.
