Securitron® M680E Series Magnalock®

Discover EcoMag Technology.

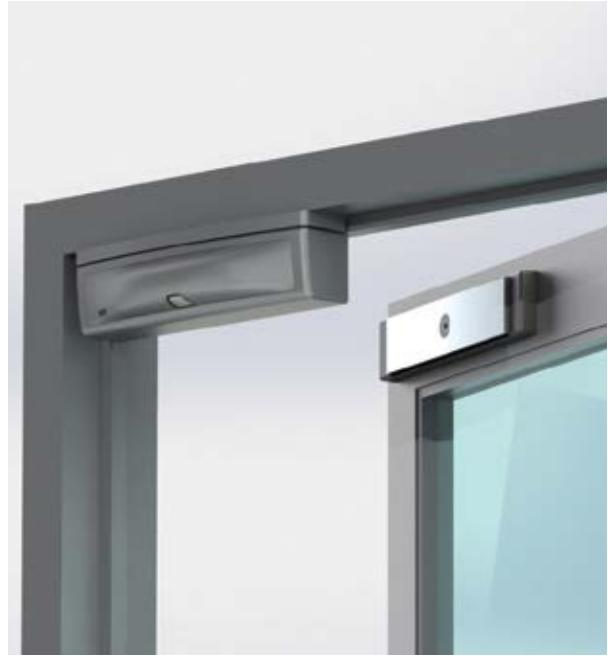

When strength and aesthetics matter, the Securitron M680E EcoMag is the most advanced, sustainable electromagnetic lock available.

Strength, Flexibility & Quick Installation

• Increased 1,200 lbs holding force adds an increased level of security to the access point
• All-in-one optional integrated accessories provide flexibility to customize as needed
• New strike plate mounting template makes installation faster than ever

Advanced Intelligence

• Optional door prop sensing allows the magnet to de-energize the coil when the door is held open, dropping power as low as 20mA
• Autosensing dual voltage with microprocessor technology
• Optional integrated Door Position Switch and BondSTAT lock sensor

Sustainable Inside & Out

• Up to 80% decrease in energy consumption over the previous model with average power draw as low as 60mA at 24V
• Sustainability documentation outlines the environmental impact of this product and are available for use in specification requirements
• Completely biodegradable foam packaging insert means less waste

Intelligent | Flexible | Sustainable

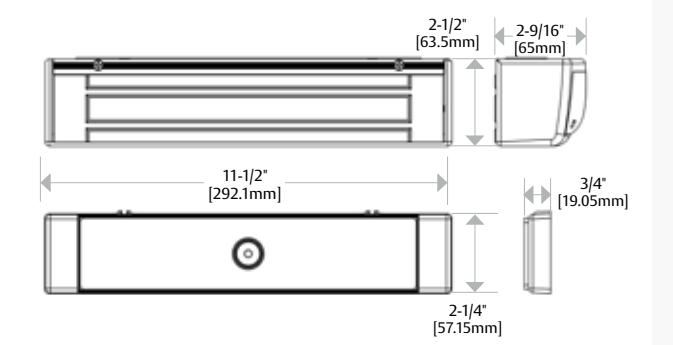

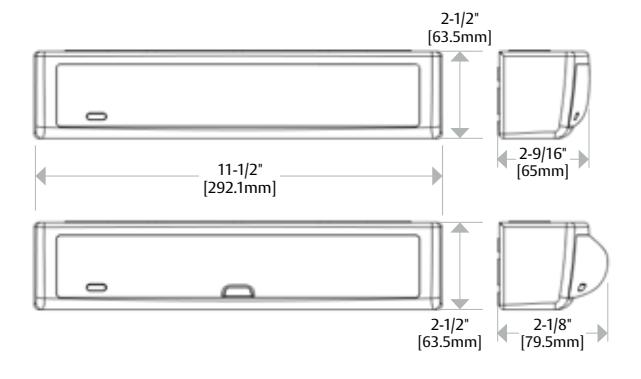

Dimensions

Specifications

Certifications

• UL 10C Fire Rated, 1 Hour
• CAN/ULC-S104 Fire Door Conformant
• UL1034 Burglary-Resistant Listed
• UL294 Recognized Component
• ANSI/BHMA A156.23, Grade 2; E18501
• California State Fire Marshal Listed

Electrical Consumption

• Maglock Average Power Draw (±10%)
  • 113mA at 12VDC
  • 52mA at 24VDC
• Maglock Maximum Power Draw (±10%)
  • 515mA at 12VDC
  • 290mA at 24VDC
• REX Power (±10%)
  • Adds 25mA at 12VDC
  • Adds 10mA at 24VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• 32° to 110°F [0° to 43°C]
• Indoor use only

Shipping Weight

• 8 lbs [3.6kg]

Features

Standard Features

• Sustainability documentation
• Energy efficient, low power usage
• Automatic dual-voltage no field adjustment required
• LED Indicator shows the lock is secure, open, or has an incomplete bond
• Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
• Available integrated BondSTAT and Door Position Switch
• Autosensing dual voltage with microprocessor technology
• Rust resistant all ferrous metal surfaces plated for durability
• Adjustable automatic relock timer (0 to 30 seconds) BD and BDX Only
• Wire chamber anti-tamper switch
• Size optimized for use with door closers
• MagnaCare® lifetime replacement, no fault, no questions asked warranty

Optional Features

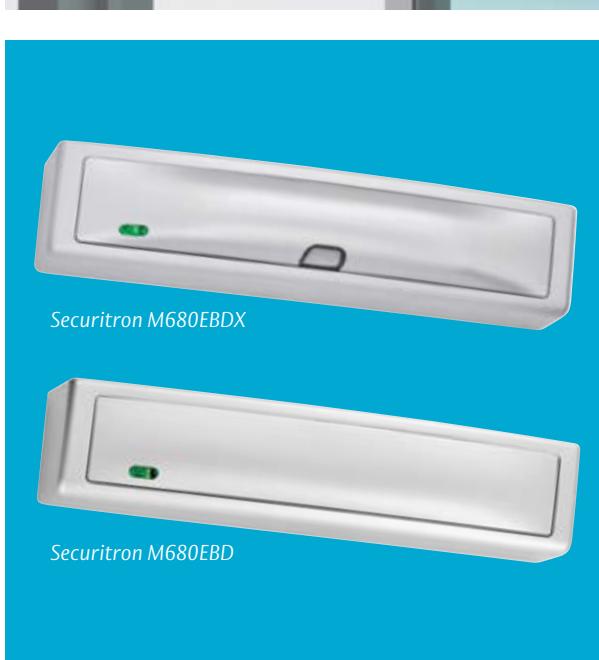

• BD Patented BondSTAT lock sensor and integrated Door Position Switch (DPS) with relock timer
• X Integrated passive infrared request to exit

How to Order

Model Series	Monitoring Options	Accessory Options	Finish Options
M680E	BD	X	– 606
M680E 1,200 lbs	(blank) No Monitoring	(blank) No Accessory Options	628/US28 Satin Aluminum Clear
	BD BondSTAT Monitor & Door Position Switch	X PIR Request to Exit	600 Paintable Primer Gray Finish
			605/US3 Bright Brass
			606/US4 Satin Brass
			612/US10 Satin Bronze
			613E Dark Oxidized Satin Bronze
			629 Bright Stainless Steel
			630 Satin Stainless Steel
			BSP Black Suede Powder
			WSP* White Suede Powder

*Finish option available soon. Please contact your Sales Representative for product details, availability and pricing.
