M680E EcoMag Sustainable Magnalock®

1,200 lbs holding force, bracket mounted, sustainable Magnalock

The same unsurpassed intelligence, style and convenience as the previous M680 series, but with 80% reduction in energy consumption.

The M680E is intelligent, with built-in door prop sensing allowing the magnet to deenergize the coil when the door is held open for extended periods. The M680EBD offers built-in smart voltage sensing, integrated patented BondSTAT, tamper sensor as well as door position status monitoring. The aesthetics and design finishes of the EcoMag are refined enough for the most discriminating designer openings. It also offers the fastest, easiest, most secure installation of any bracket mount maglock with an updated strike plate mounting template. The optional integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress.

Features

Standard Features

• Strike plate mounting template provides the easiest install for out-swing doors
• LED Indicator shows the lock is secure, open, or has an incomplete bond
• Wire chamber anti-tamper switch
• Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
• Available integrated BondSTAT and Door Position Switch
• Autosensing dual voltage with microprocessor technology
• Adjustable automatic relock timer (0 to 30 seconds)
• Energy efficient, low power usage
• Size optimized for use with door closers
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Optional Features

• B Integrated patented BondSTAT magnetic bond sensor
• D Integrated Door Position Switch (DPS)
• X Integrated passive infrared request to exit

Accessories

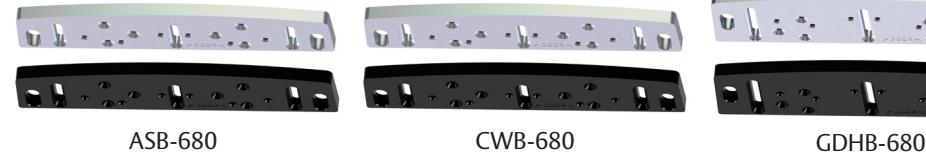

• ASB-680 Aluminum Shim Bracket in Clear or Black Anodized
• CWB-680 Concrete Wood Bracket in Clear or Black Anodized
• GDHB-680 Glass Door Header Bracket in Clear or Black Anodized

Specifications

Certifications

• UL 10C Fire Rated, 1 hour
• CAN/ULC-S104 Fire Door Conformant
• UL 1034 Burglary-Resistant Listed
• UL 294
• ANSI/BHMA A156.23, Grade 2; E18501 Compliant
• California State Fire Marshal Listed

Electrical

• Maglock Average Power Draw (±10%)
• 113 mA at 12 VDC
  • 52 mA at 24 VDC
• Maglock Maximum Power Draw (±10%)
  • 520 mA at 12 VDC
  • 360 mA at 24 VDC
• REX Power (±10%)
  • +25 mA at 12 VDC
  • +20 mA at 24 VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• 32˚ to 110˚F [0˚ to 43˚C]
• Indoor use only

Shipping Weight

• 8 lbs [3.6kg]

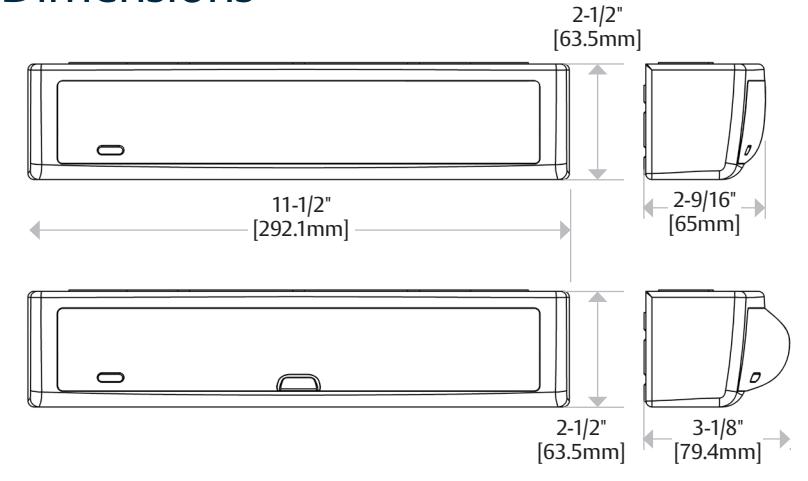

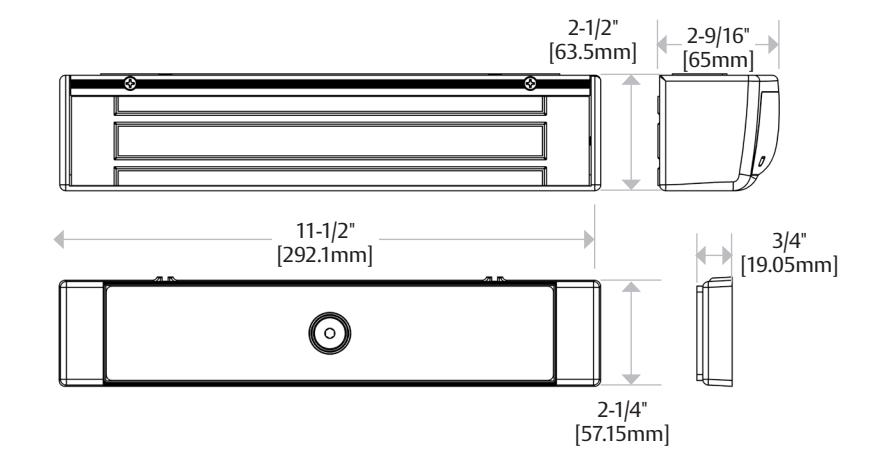

Dimensions

Related Accessories

Ordered Separately

How to Order

MODEL SERIES	MONITORING OPTIONS	ACCESSORY OPTIONS	FINISH OPTIONS
M680E	BD	X	– 606
M680E 1,200 lbs	(blank) No Monitoring	(blank) No Accessory Options	628/US28 Satin Aluminum Clear
	BD BondSTAT Monitor & Door Position Switch	X PIR Request to Exit	605/US3 Bright Brass
			606/US4 Satin Brass
			612/US10 Satin Bronze
			613E Dark Oxidized Satin Bronze
			629 Bright Stainless Steel
			630 Satin Stainless Steel
			BSP Black Suede Powder
