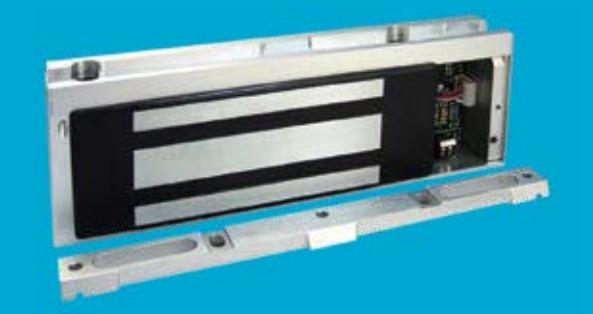

Securitron® M68 Series Magnalock®

1,200 lbs holding force, bracket mounted Magnalock

Easily installed, bracket mounted Magnalock for higher security interior applications.

Ideal for traffic control in high-use areas where higher security is needed, the M68 electromagnetic lock provides reliability, durability and strength with low maintenance and efficient power consumption. Bracket mounting and wiring chamber provide ease of installation.

Features

Standard Features

• PoE friendly
• Automatic dual-voltage—no field adjustment required

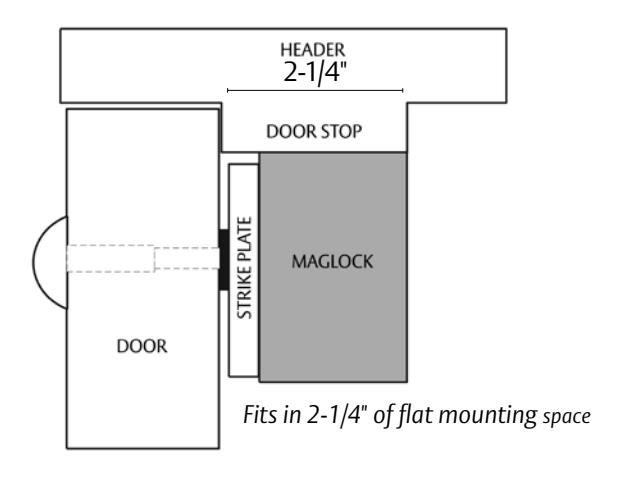

• Bracket mounting provides the easiest install for out-swing doors
• Rust resistant—all ferrous metal surfaces plated for durability
• Instant release circuit —no residual magnetism
• Internal wire access chamber
• Noise suppression with included MOV
• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability
• Strong hold and low maintenance
• MagnaCare® lifetime replacement, no fault, no questions asked warranty

Optional Features

• D Integrated Door Position Switch (DPS)
• L LED indicator
• S SenSTAT
• T Anti-tamper switch

Dimensions

Specifications

Certifications

• UL 10C Listed
• CAN4-S104, CAN/ULC-S533 Listed
• ANSI/UL 294 Listed
• CSA-C22.2 No.205 Listed
• ANSI/BHMA A156.23, Grade 2; E18501-1000
• CSFM—California State Fire Marshal Approved
• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

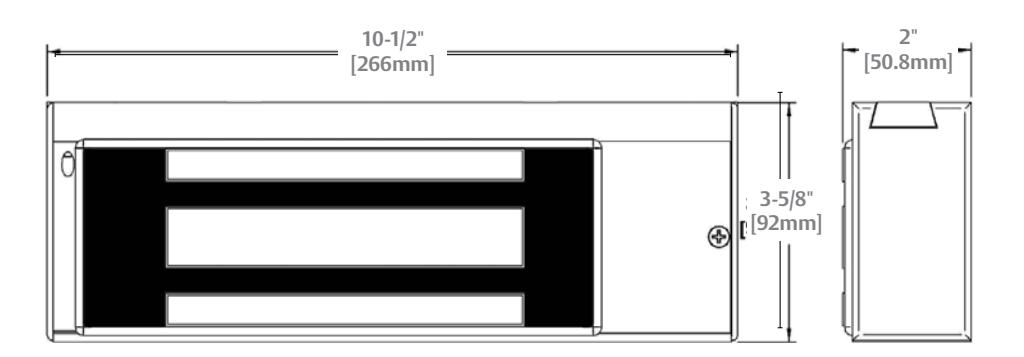

Dimensions

• Magnalock : 10-1/2"L x 2"D x 3-5/8"H
• Strike : 6"L x 1/2"D x 2-3/4"H

Electrical

• 250 mA at 12 VDC
• 125 mA at 24 VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• +32 to +110F [0 to +43C]
• Indoor use only

Shipping Weight

• 13 lbs [5.44kg]

How to Order

Model Series	Monitoring Options
M68	DLST
M68 1,200 lbs Magnalock	(blank) No Monitoring
	D Door Position Switch
	L LED Indicator
	S Senstat Monitor
	T Tamper Monitor
