M62FG – SASM Gate Magnalock®

The shock absorbing 1,200 lbs Magnalock solution for outdoor gates

The M62FG-SASM is the only heavy duty Magnalock specifically designed to secure and protect gates.

This weatherproof unit delivers 1,200 lbs of holding force and comes equipped with conduit fittings and a special shock absorbing strike mount (SASM). This unique design dramatically prolongs the life of the lock, the gate and other hardware by controlling excessive impact between the strike plate and the magnet.

The SASM is also available as a separate retrofit kit and is compatible with M32, M62 or M82 Magnalock strike plates for areas prone to excessive force closures or slamming.

Features

Standard Features

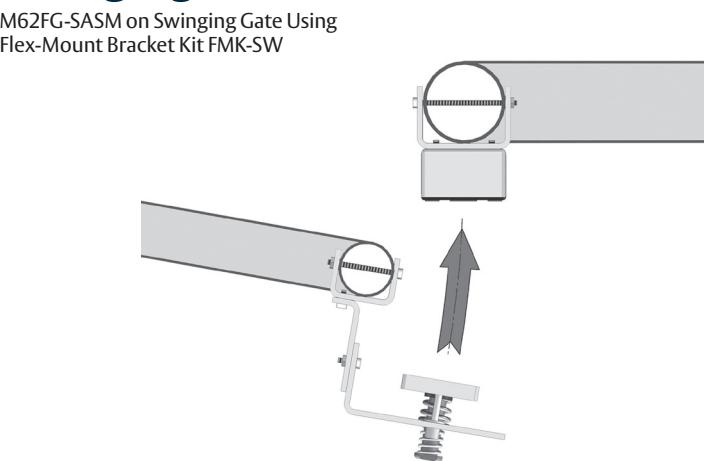

Flexible bracket options for swinging or sliding applications
Fully sealed for weatherproof operations
Includes universal threaded conduit fitting 1/2" [12.7mm] female – 3/4" [19mm] male
10 ft. [3.05m] of jacketed, stranded conductor cable
Noise suppression with built-in MOV
Automatic dual-voltage —no field adjustment required
Rust resistant—all ferrous metal surfaces plated for durability
MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Optional Features

B Patented BondSTAT magnetic bond sensor
D Integrated Door Position Switch (DPS)
F Face drilled
G Gate conduit
SASM Shock absorbing strike mount—shock absorption and rebound assistance for proper gate alignment
