Securitron® M380E Series Magnalock®

Introducing the next iteration of EcoMag Technology.

Intelligent, secure and easy to install with decreased energy consumption, saving valuable time and money.

Flexible & Quick Installation

• Low profile with 600 lbs holding force offers medium security to the access point
• All-in-one optional integrated PIR provides flexibility to customize as needed, reducing the number of components around the door
• New strike plate mounting template makes installation faster than ever

Advanced Intelligence

• Optional door prop sensing allows the magnet to de-energize the coil when the door is held open, dropping power as low as 20mA
• Autosensing dual voltage with microprocessor technology
• Synchronous double door release with single Request to Exit

Continued Sustainability

• Similar to the Securitron M680E, the M380E offers up to 80% decrease in energy consumption with average power draw as low as 90mA at 24V
• Sustainability documentation outlines the environmental impact of this product and are available for use in specification requirements
• Completely biodegradable corn starch packaging insert means less waste

Intelligent | Flexible | Sustainable

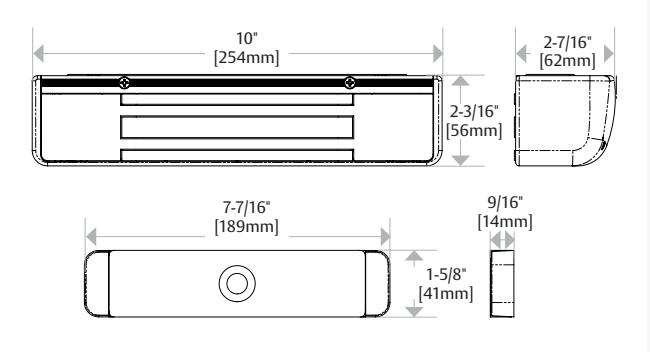

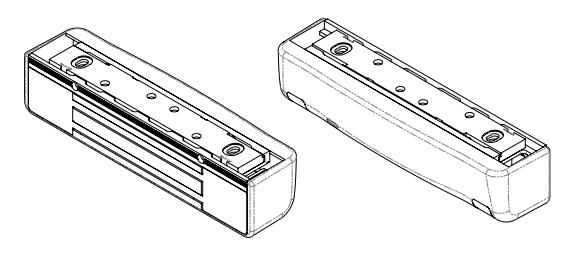

Dimensions

Specifications

Certifications

• UL 10C Listed
• UL 1034 Listed
• UL 294 Listed
• CAN4-S104, CAN/ULC Listed
• ANSI/BHMA A156.23, Grade 3; E18501-500, E18531-500 Compliant
• CSFM—California State Fire Marshal Approved

Electrical Consumption

• Maglock Average Power Draw (±10%)
  • 140mA at 12VDC
  • 90mA at 24VDC
• Maglock Maximum Power Draw (±10%)
  • 585mA at 12VDC
  • 310mA at 24VDC
• REX Power (±10%)
  • Adds 25mA at 12VDC
  • Adds 10mA at 24VDC

Holding Force

• 600 lbs [272kg]

Operating Temperature

• 32° to 110°F [0° to 43°C]
• Indoor use only

Shipping Weight

• 8 lbs [3.6kg]

Features

Standard Features

• Sustainability documentation
• Energy efficient, low power usage
• Automatic dual-voltage no field adjustment required
• LED Indicator shows the lock is secure, open, or has an incomplete bond
• Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
• Available integrated BondSTAT and Door Position Switch
• Autosensing dual voltage with microprocessor technology
• Rust resistant all ferrous metal surfaces plated for durability
• Adjustable automatic relock timer (0 to 30 seconds) BD and BDX Only
• Wire chamber anti-tamper switch
• Size optimized for use with door closers
• MagnaCare® lifetime replacement, no fault, no questions asked warranty

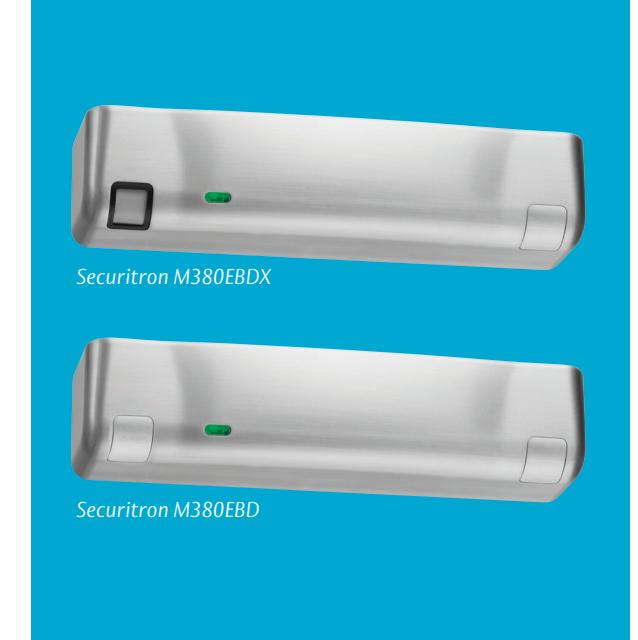

Optional Features

• BD Patented BondSTAT lock sensor and integrated Door Position Switch (DPS) with relock timer
• X Integrated passive infrared request to exit

How to Order

Model Series	Monitoring Options	Accessory Options	Finish Options
M380E	BD	Χ	– 606
M380E 600 lbs	(blank) No Monitoring	(blank) No Accessory Options	628/US28 Satin Aluminum Clear
	BD BondSTAT Monitor & Door Position Switch	X PIR Request to Exit	605/US3 Bright Brass
			606/US4 Satin Brass
			612/US10 Satin Bronze
			613E Dark Oxidized Satin Bronze
			629 Bright Stainless Steel
			630 Satin Stainless Steel
			BSP Black Suede Powder
			WSP* White Suede Powder

*Finish option available soon. Please contact your Sales Representative for product details, availability and pricing.
