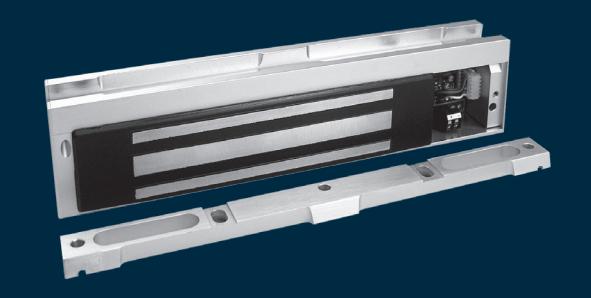

M38 Series Magnalock®

600 lbs holding force, bracket mounted Magnalock

Easily installed, bracket mounted Magnalockfor interior applications.

The M38 electromagnetic lock is ideal for traffic control in high-use areas within secured or monitored perimeters. Offerings include solutions for interior rooms, closets and hallways where reliability, high durability and low maintenance are required. Bracket mounting and wiring chamber provide quick, accurate installation.

Features

Standard Features

  • Automatic dual-voltage —no field adjustment required
  • Bracket mounting provides the easiest install for out-swing doors
  • Rust resistant—all ferrous metal surfaces plated for durability
  • Instant release circuit —no residual magnetism
  • Internal wire access chamber
  • Noise suppression with included MOV
  • Ultra-secure collapsing blind nuts mount to door frame for strength and reliability
  • MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Optional Features

  • D Integrated Door Position Switch (DPS)
  • L LED indicator
  • T Anti-tamper switch

Specifications

Certifications

  • UL 10C Listed
  • CAN4-S104, CAN/ULC-S533 Listed
  • ANSI/UL 294 Listed
  • CSA-C22.2 No.205 Listed
  • ANSI/BHMA A156.23, Grade 3; E18501-500 Compliant
  • CSFM—California State Fire Marshal Approved
  • CE:EN 50081-1(92), EN 61000-6-2(99) Approved

Electrical

  • 325 mA at 12 VDC
  • 175 mA at 24 VDC

Holding Force

• 600 lbs [272kg]

Operating Temperature

  • 32˚ to 110˚F [0˚ to 43˚C]
  • Indoor use only

Shipping Weight

• 8 lbs [3.63kg]

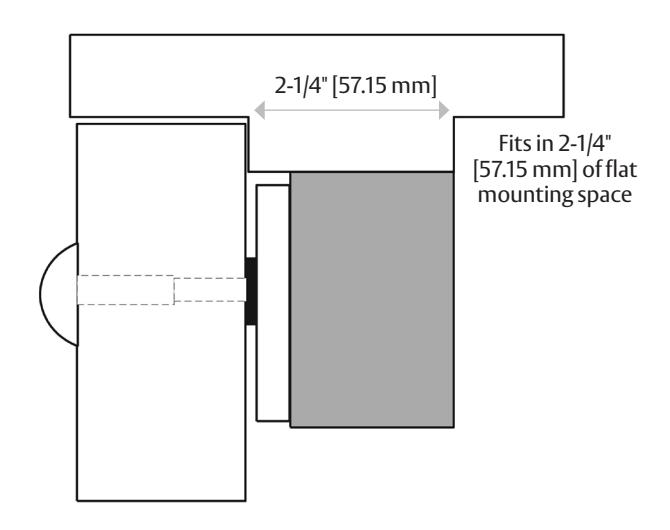

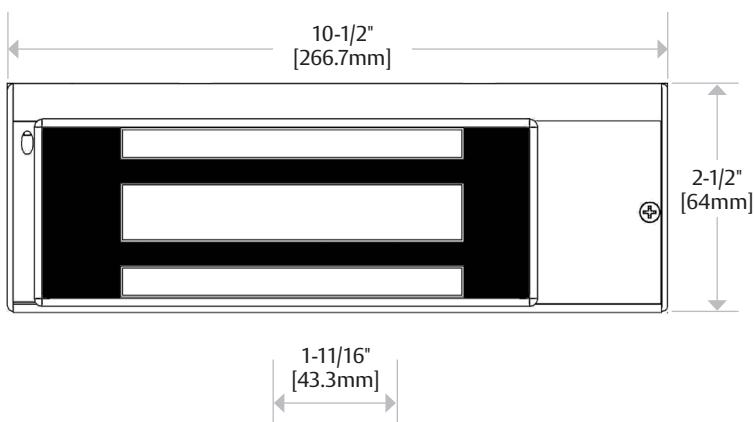

Dimensions

How to Order

MODEL SERIES MONITORING OPTIONS
M38 DLST
M38 600lbs Magnalock (blank) No Monitoring
D
Door Position Switch
L
LED Indicator
T
Tamper Monitor

M38, M68 Bracket Mounted Magnalock® Accessories

DC Dress Cover

  • Available for the M38 and M68
  • Install using foam adhesive tape
  • MagnaCare® lifetime replacement, no-fault, no questions asked warranty

PART NUMBER DESCRIPTION
DC-38SP DC–M38, Stainless Polished
DC-68SP DC–M68, Stainless Polished

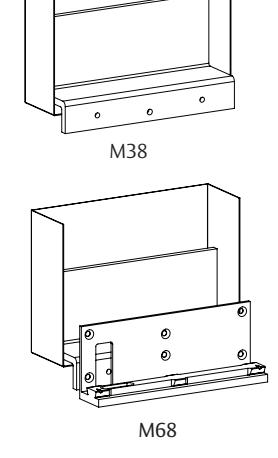

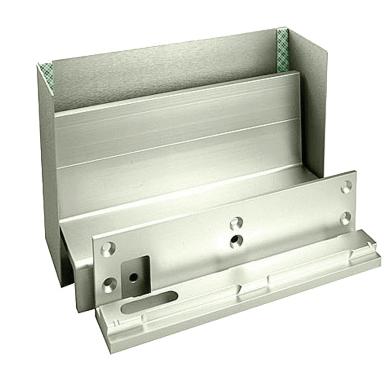

TJ Top Jamb-In-Swing Door Kit

  • Available for the M38 and M68
  • Used to mount the lock on the secure side of a door that swings into a secured area
  • Includes a Z-Bracket and an oversized Dress Cover
  • MagnaCare lifetime replacement, no-fault, no questions asked warranty

PART NUMBER DESCRIPTION
TJ-38CL In-Swing Door Kit – M38, Clear
TJ-68CL In-Swing Door Kit – M68, Clear
